Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2001
>>
Camry Solara SE V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B2785
B2785
B2785 / 99 - IG Switch ON Malfunction
DTC Detecting condition:
CIRCUIT DESCRIPTION
Wiring Diagram:

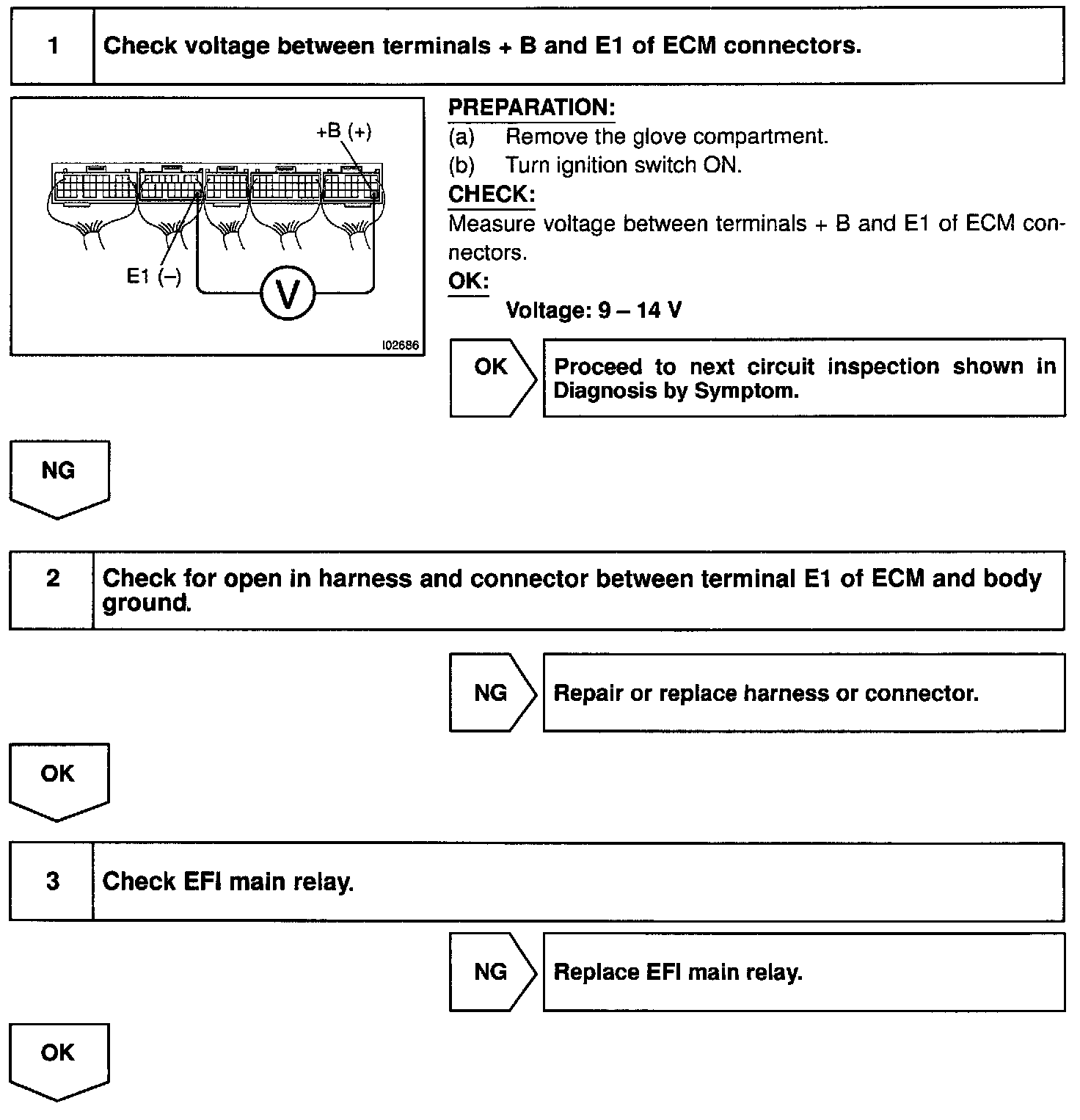

Steps 1 - 3:

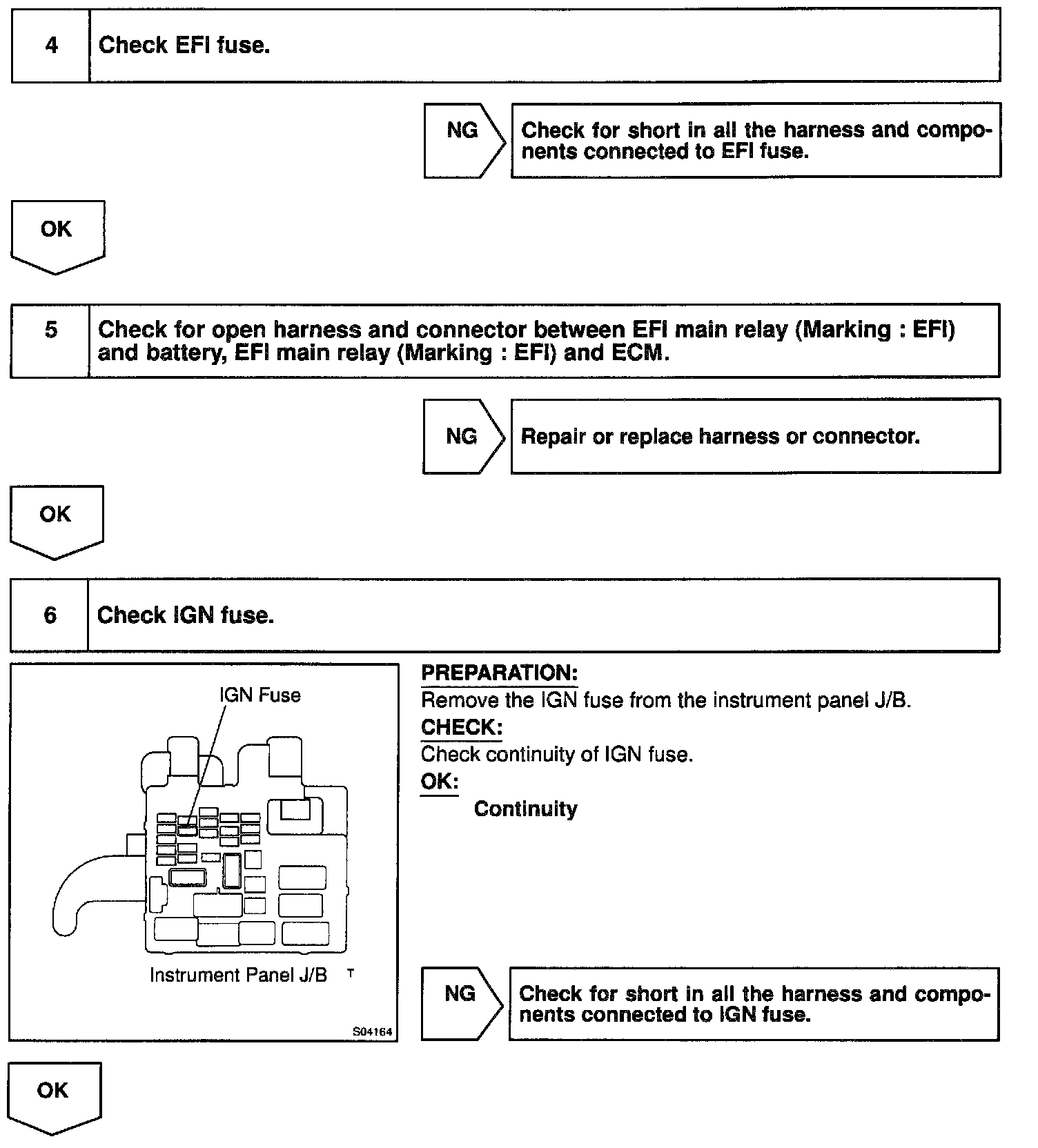

Steps 4 - 6:

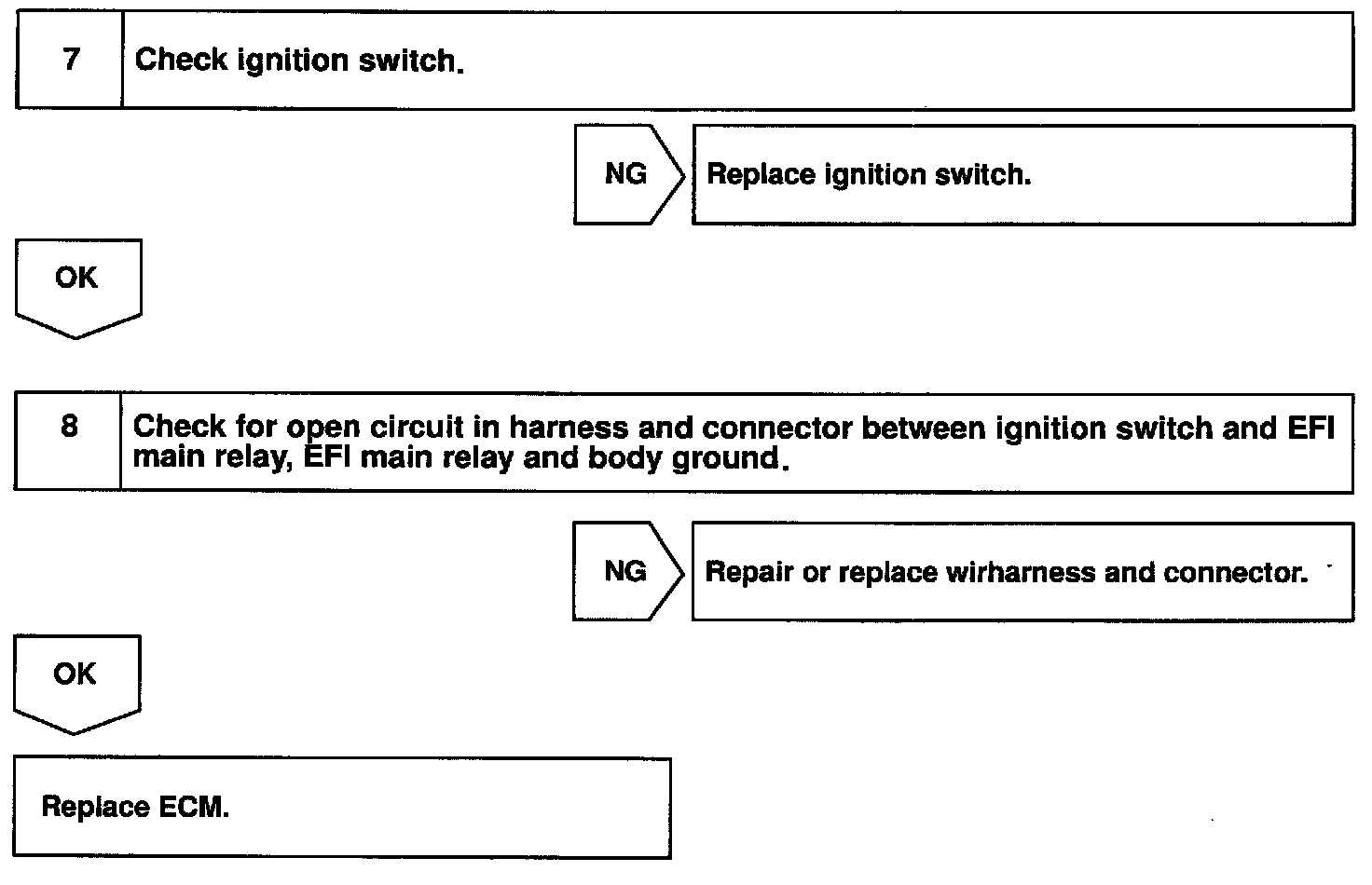

Steps 7 - 8:
INSPECTION PROCEDURE
