B2791 / 99 - Key Unlock Warning SW OFF Malfunction
DTC Detecting condition:
CIRCUIT DESCRIPTION

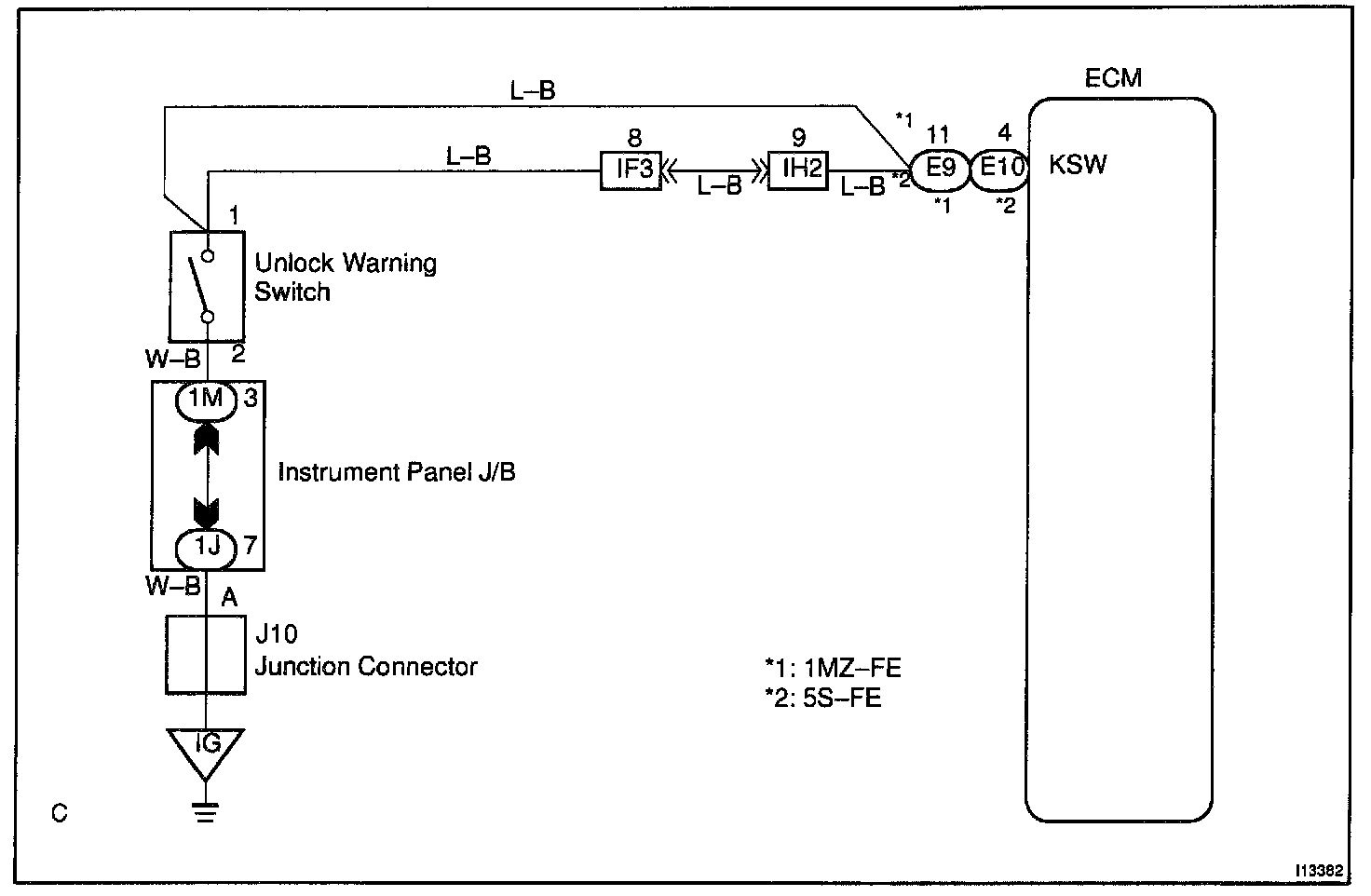

Wiring Diagram:
Wiring Diagram:

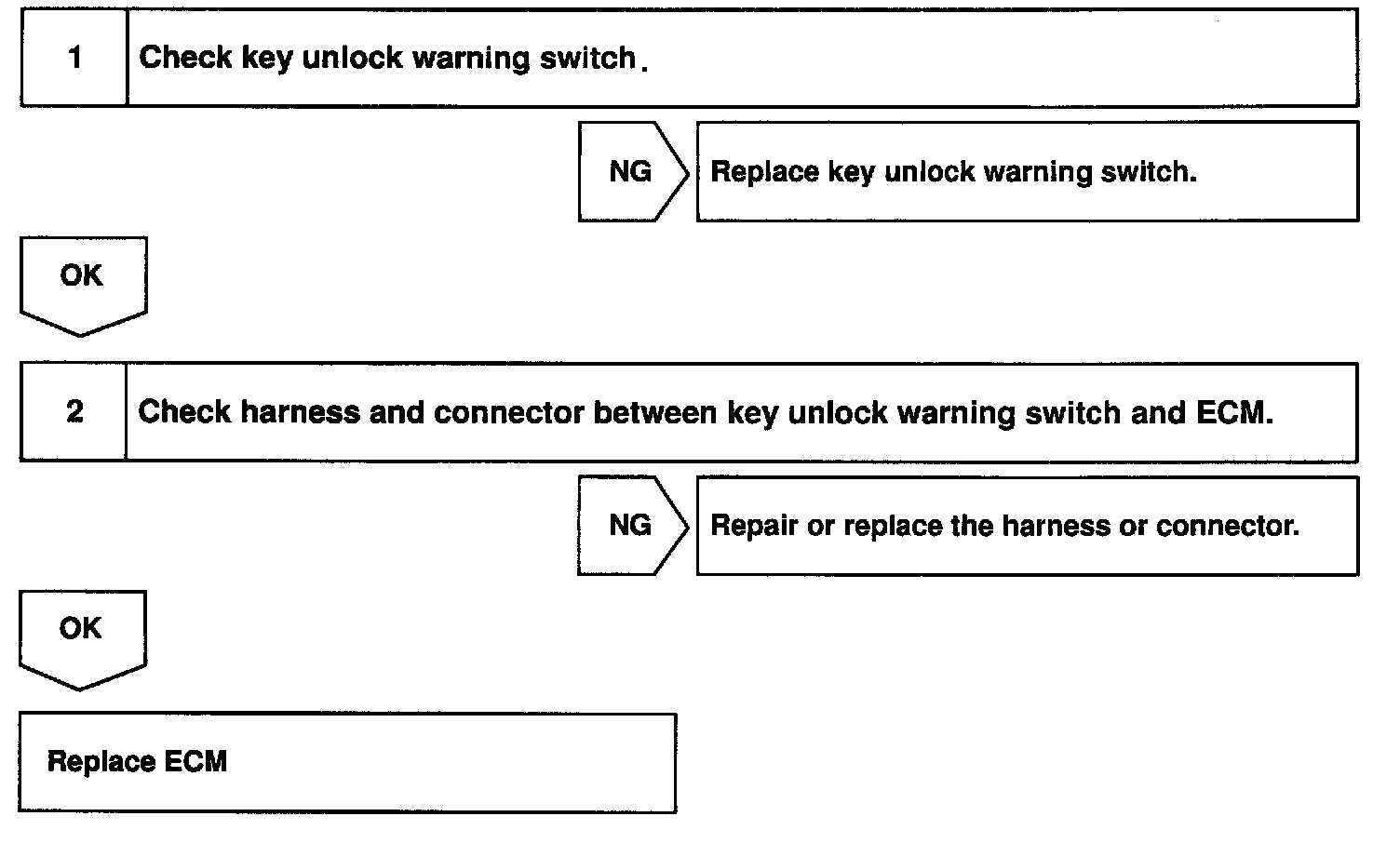

INSPECTION PROCEDURE
