C0246

C0246 / 23 - ABS & TRAC Actuator Solenoid Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.

Fail safe function:
If a trouble has occurred in the actuator solenoid circuit, the ECU cuts off the current to the ABS & TRAC solenoid relay and prohibits the ABS & TRAC controls.

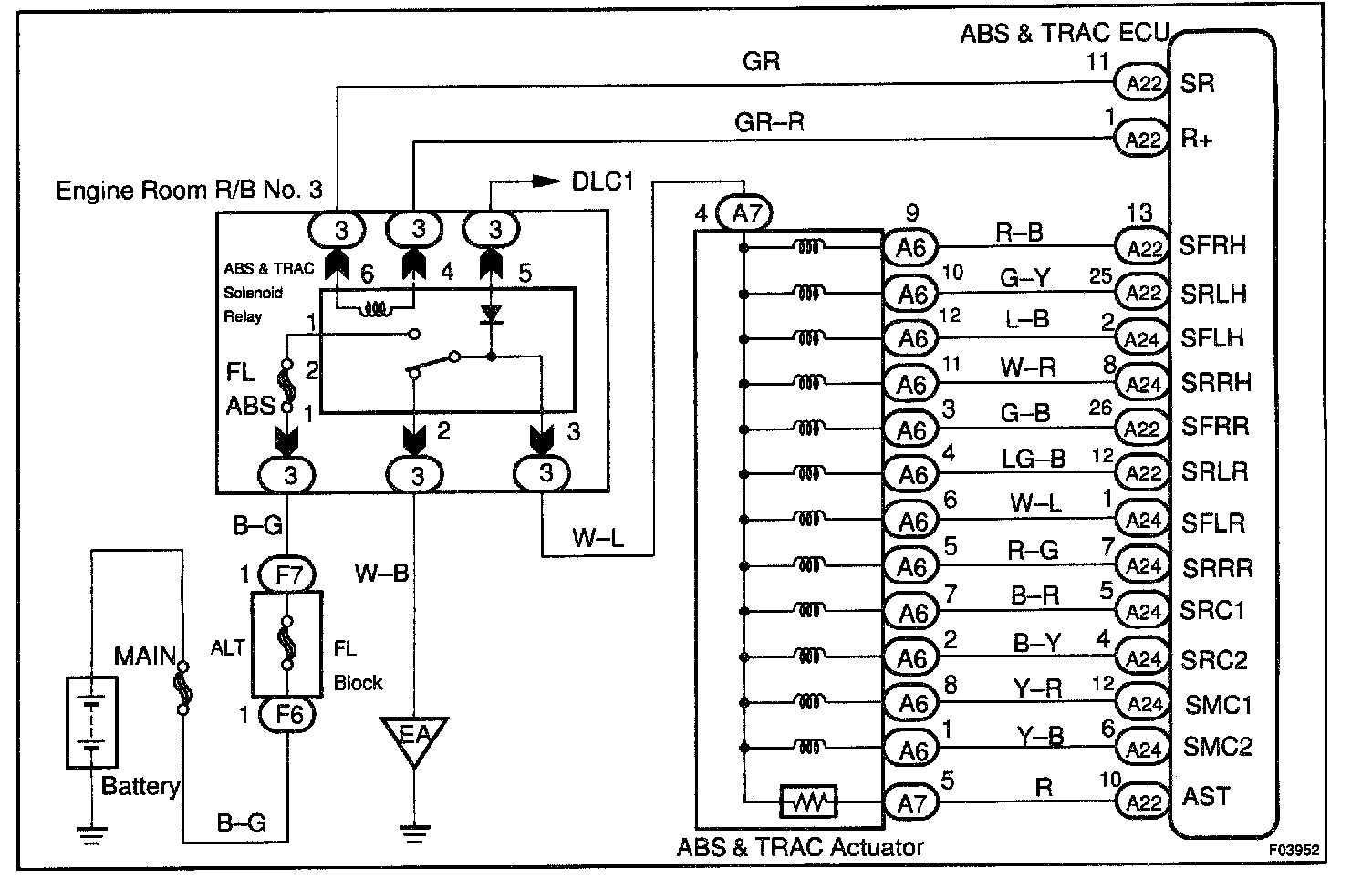

Wiring Diagram:

Step 1:

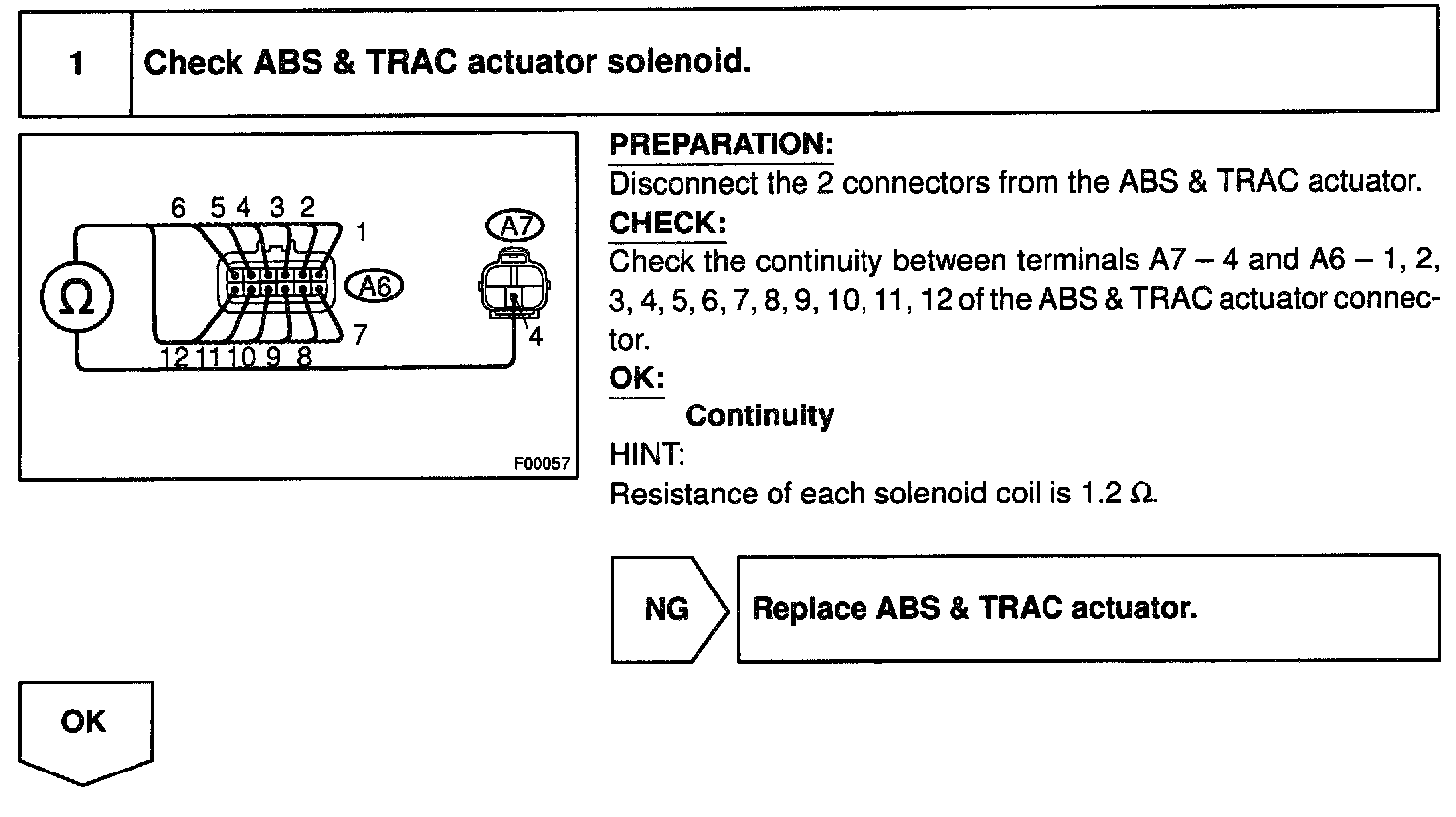

Step 2:

INSPECTION PROCEDURE
