C1241

C1241 / 41 - IG Power Source Circuit

CIRCUIT DESCRIPTION

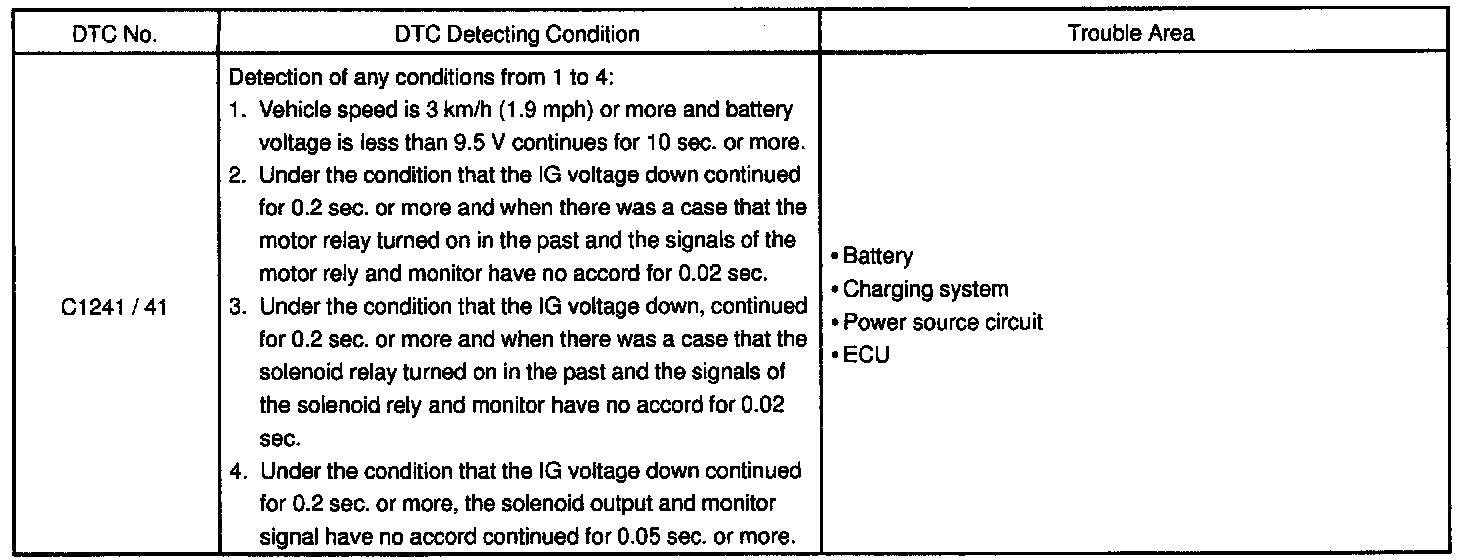

DTC Detecting Condition:

This is the power source for the ECU and the actuators.

Fail safe function:
If a trouble has occurred in the power source circuit, the ECU cuts off the current to the ABS & TRAC solenoid relay and prohibits the ABS & TRAC controls.

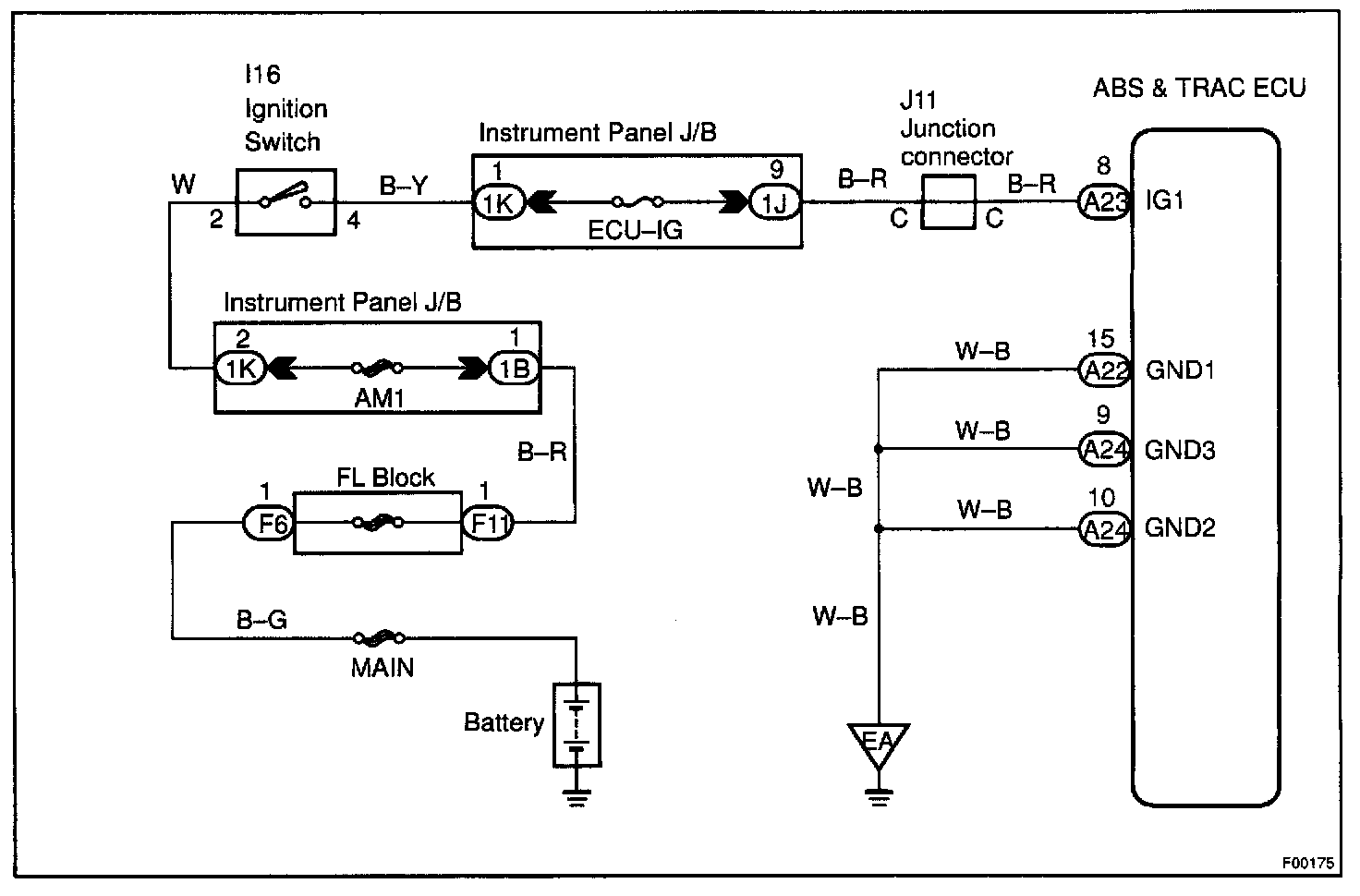

Wiring Diagram:

Steps 1 - 2:

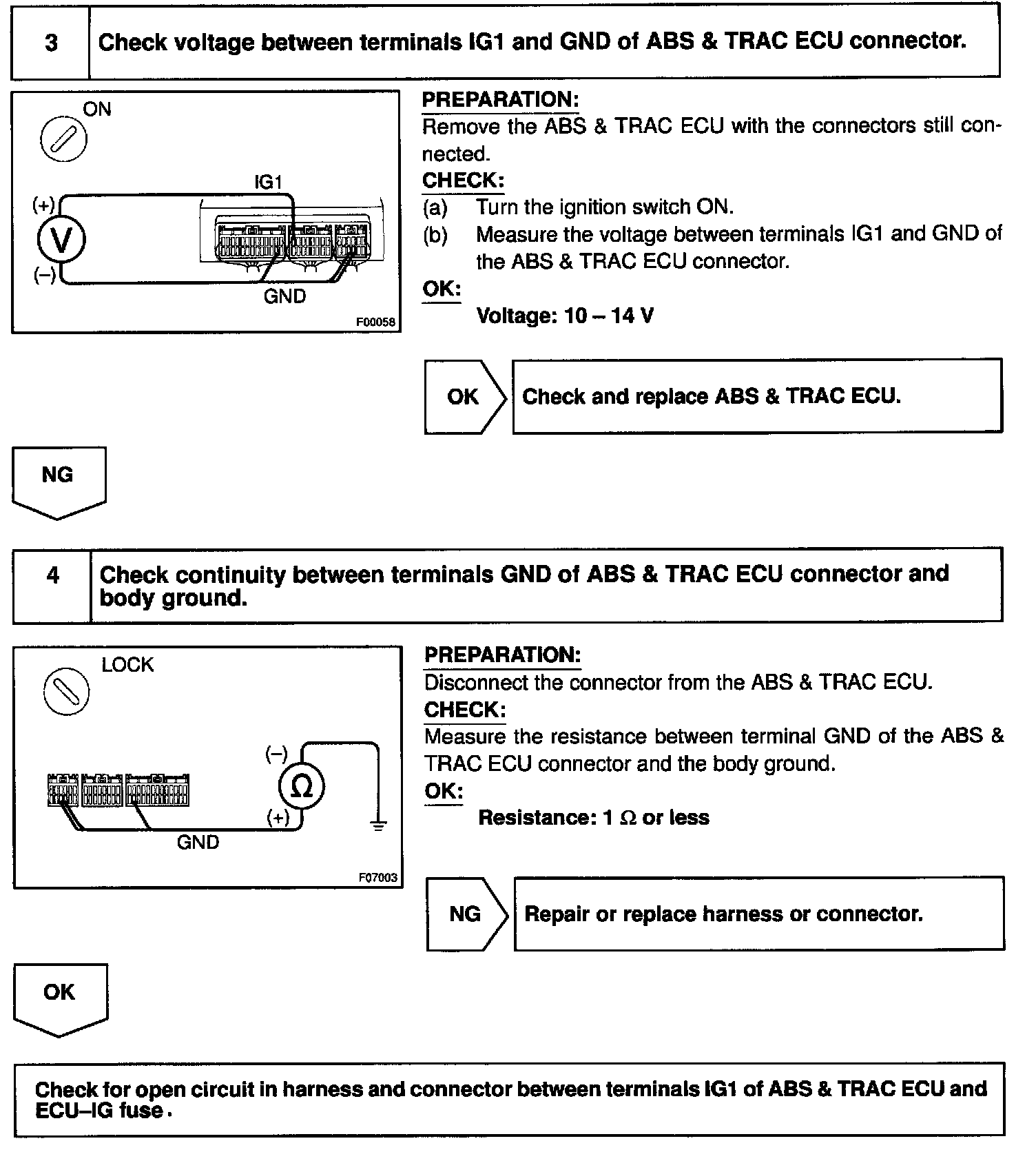

Steps 3 - 4:

INSPECTION PROCEDURE
