Instrument Cluster / Carrier

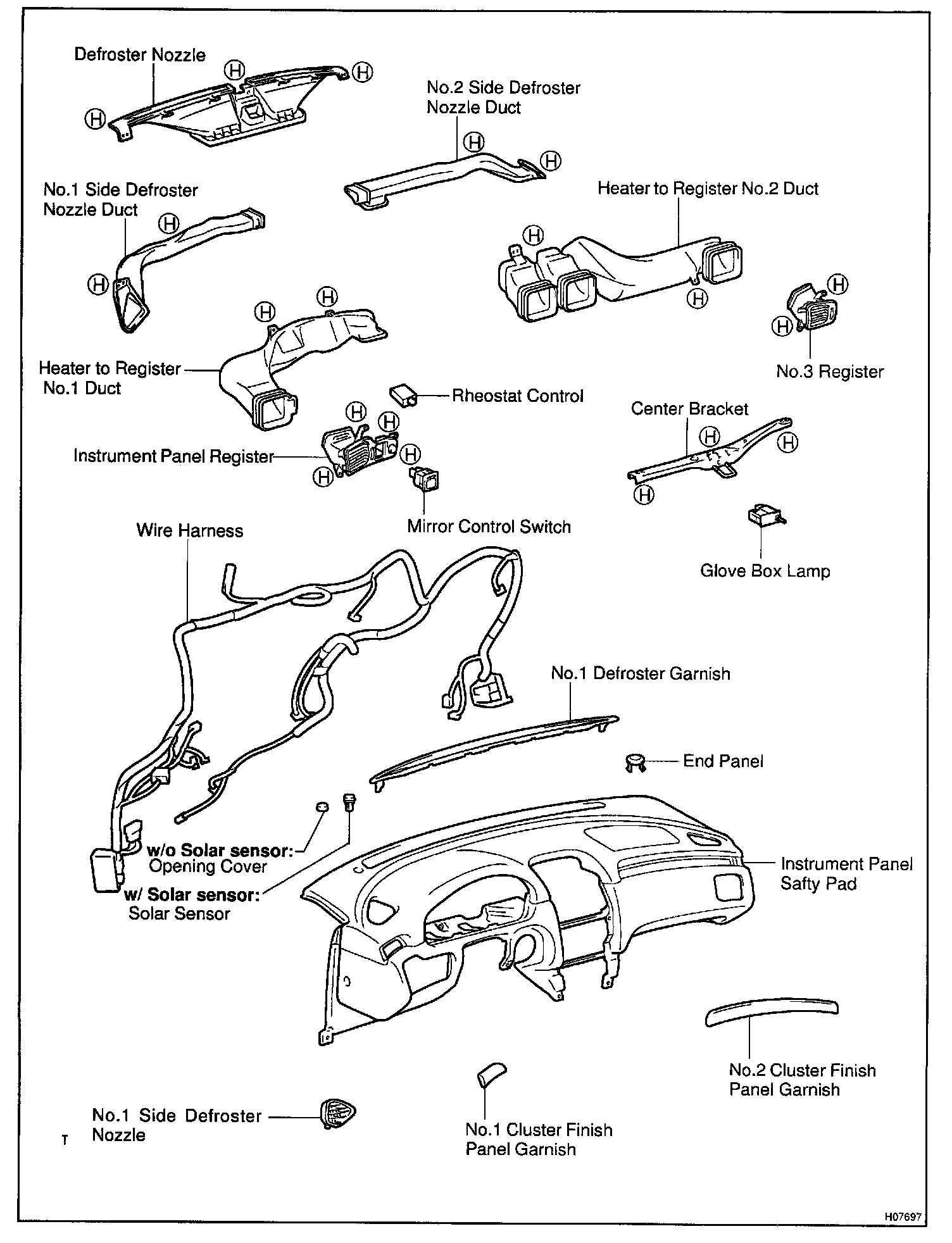

Instrument Panel (Part 1):

Instrument Panel (Part 2):

Instrument Panel (Part 3):

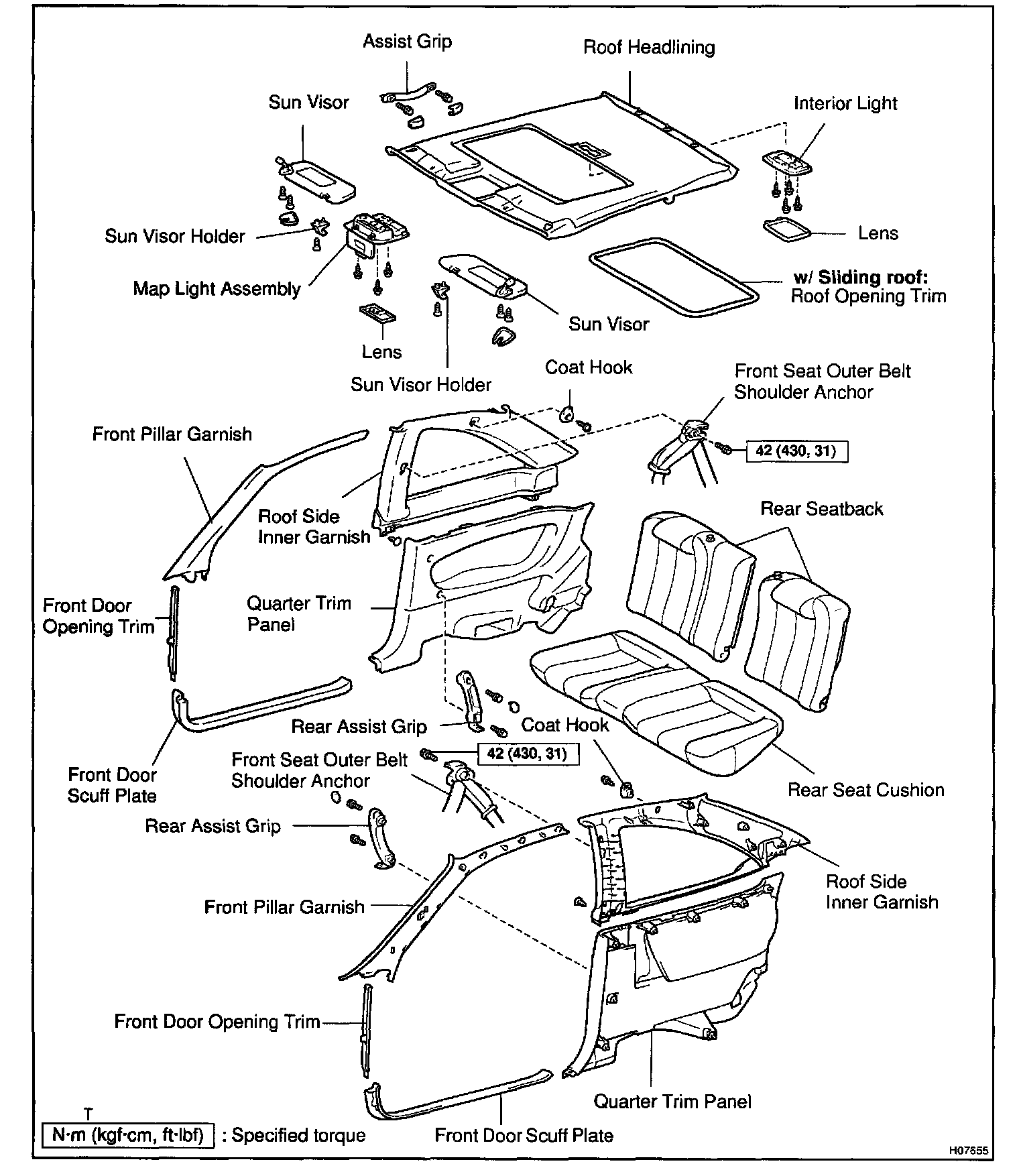

Roof Headlining:

HINT: Screw shapes and sizes are indicated in the table. The codes ("A" - "K") correspond to those indicated.
