Power Steering Pump

POWER STEERING VANE PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENT

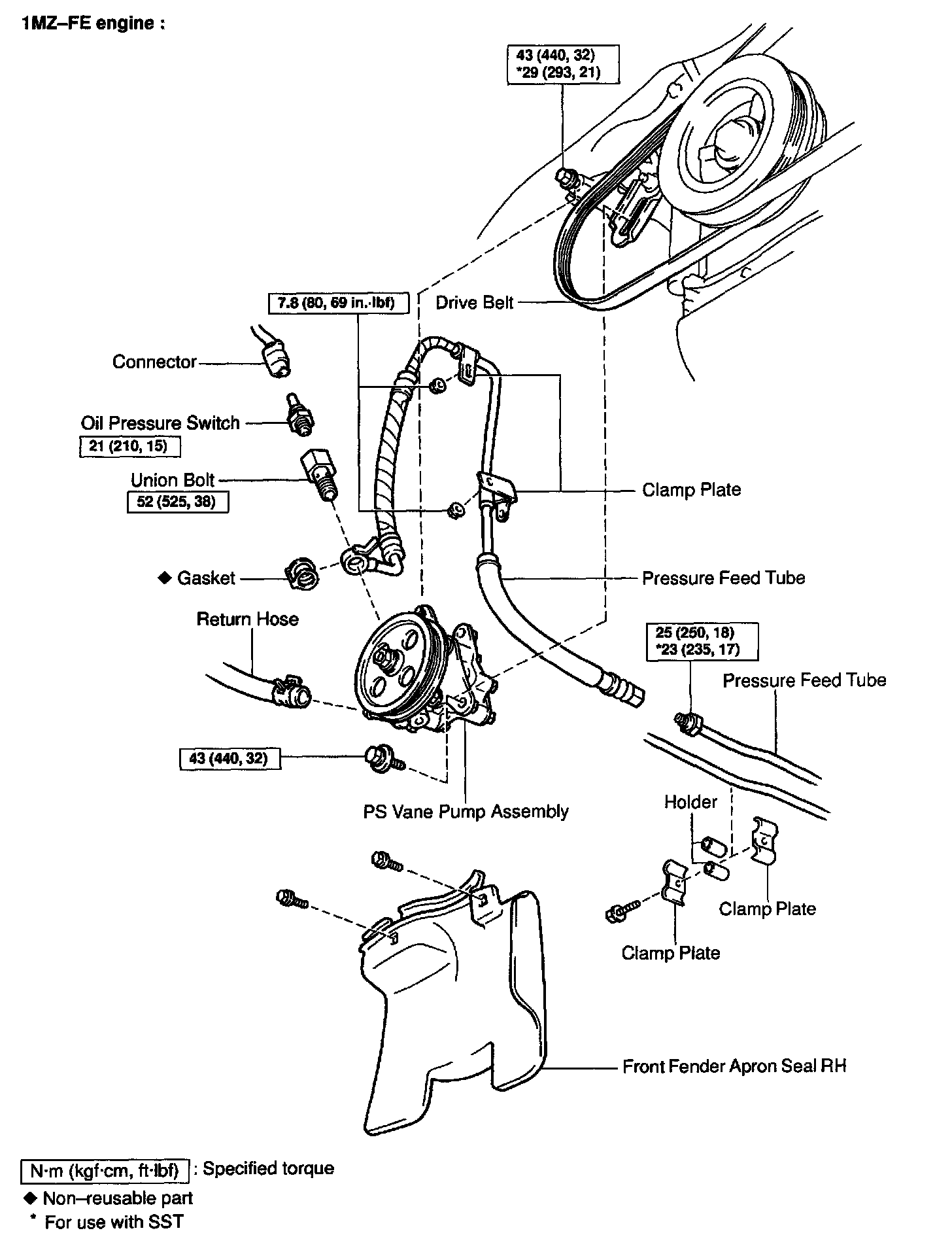

Part 1 of 3

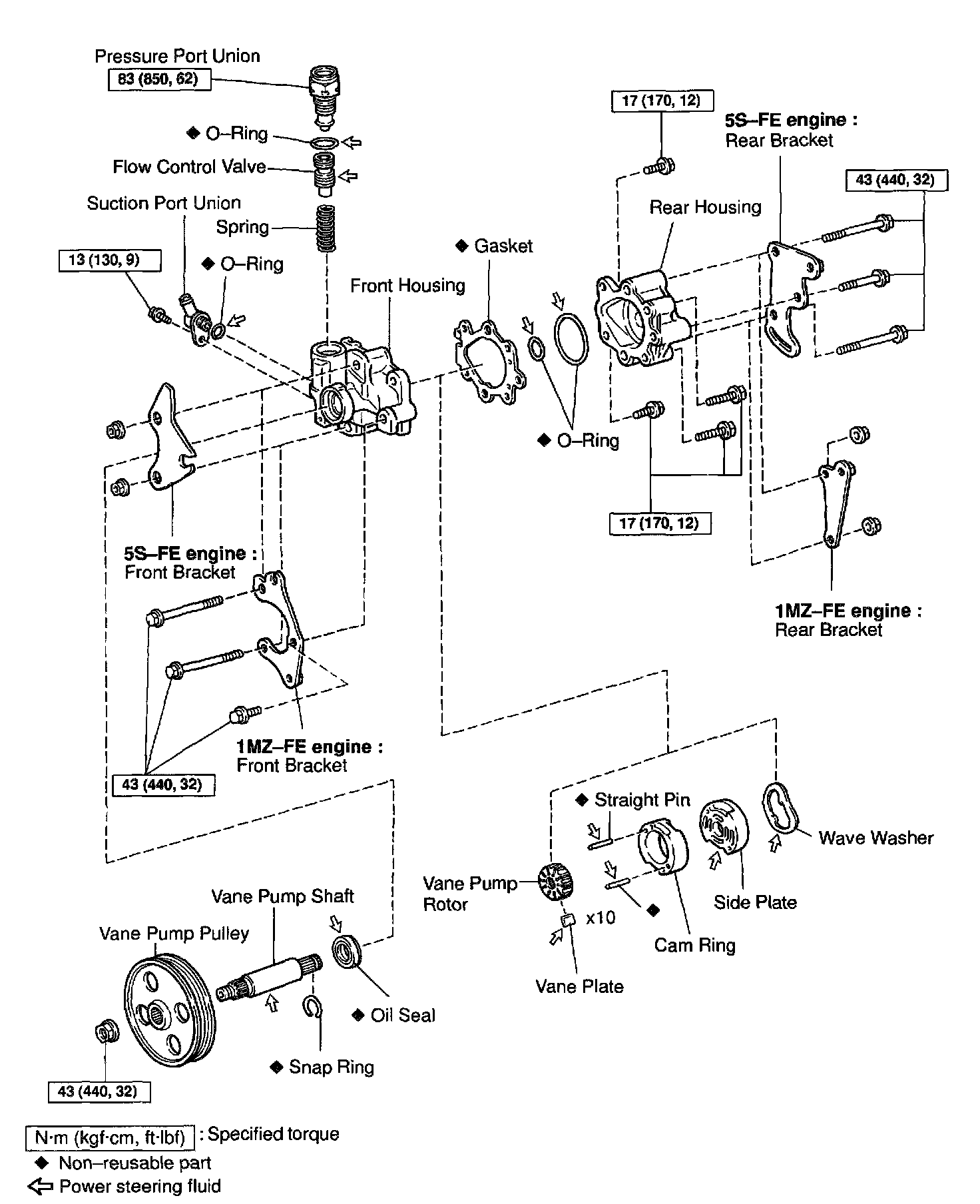

Part 2 of 3

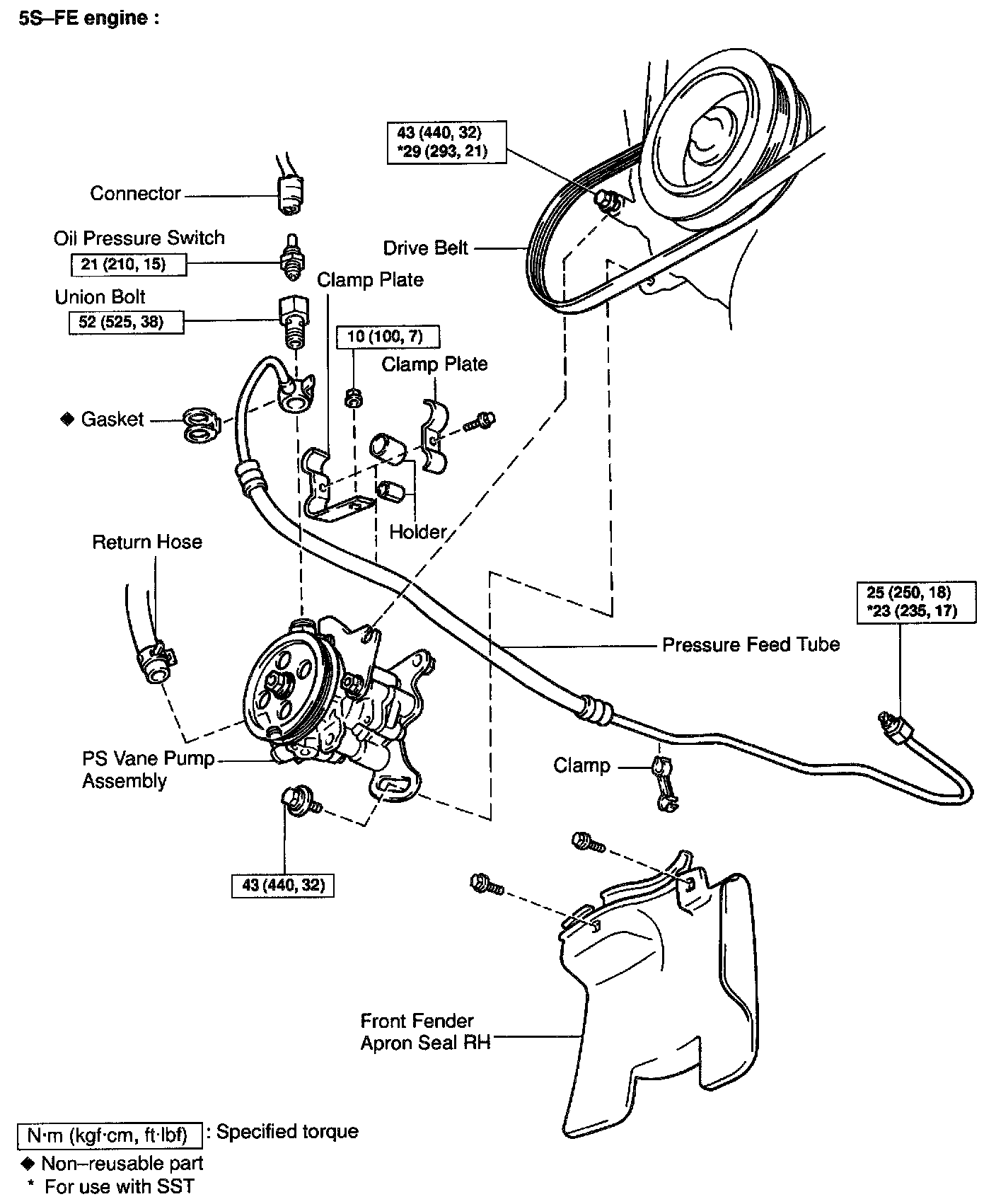

Part 3 of 3
