Fuse: Application and ID

Fusible Link Block Fuse Applications:

Engine Room J/B No.2 Fuse Applications (Part 1):

Engine Room J/B No.2 Fuse Applications (Part 2):

Engine Room R/B No.1 Fuse Applications:

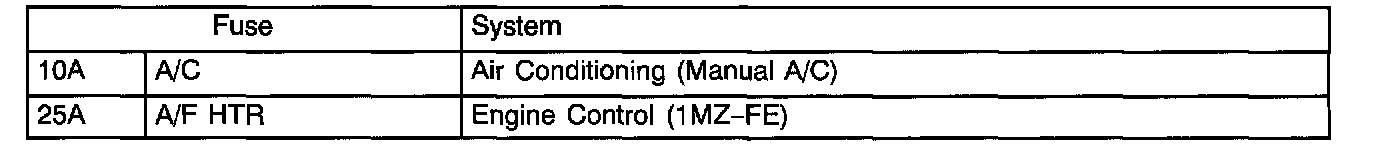

Engine Room R/B No.2 Fuse Applications:

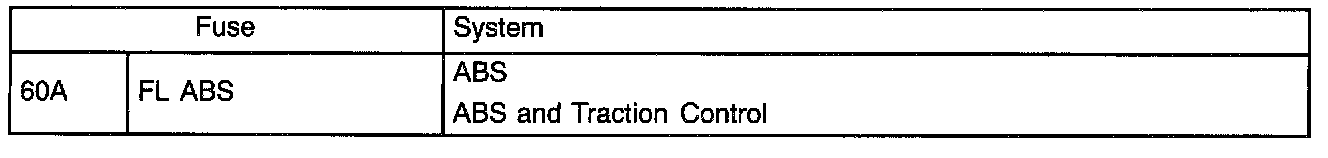

Engine Room R/B No.3 (w/ ABS And Traction Control) Or Fusible Link Block (w/ ABS W/o Traction Control) Fusible Applications:

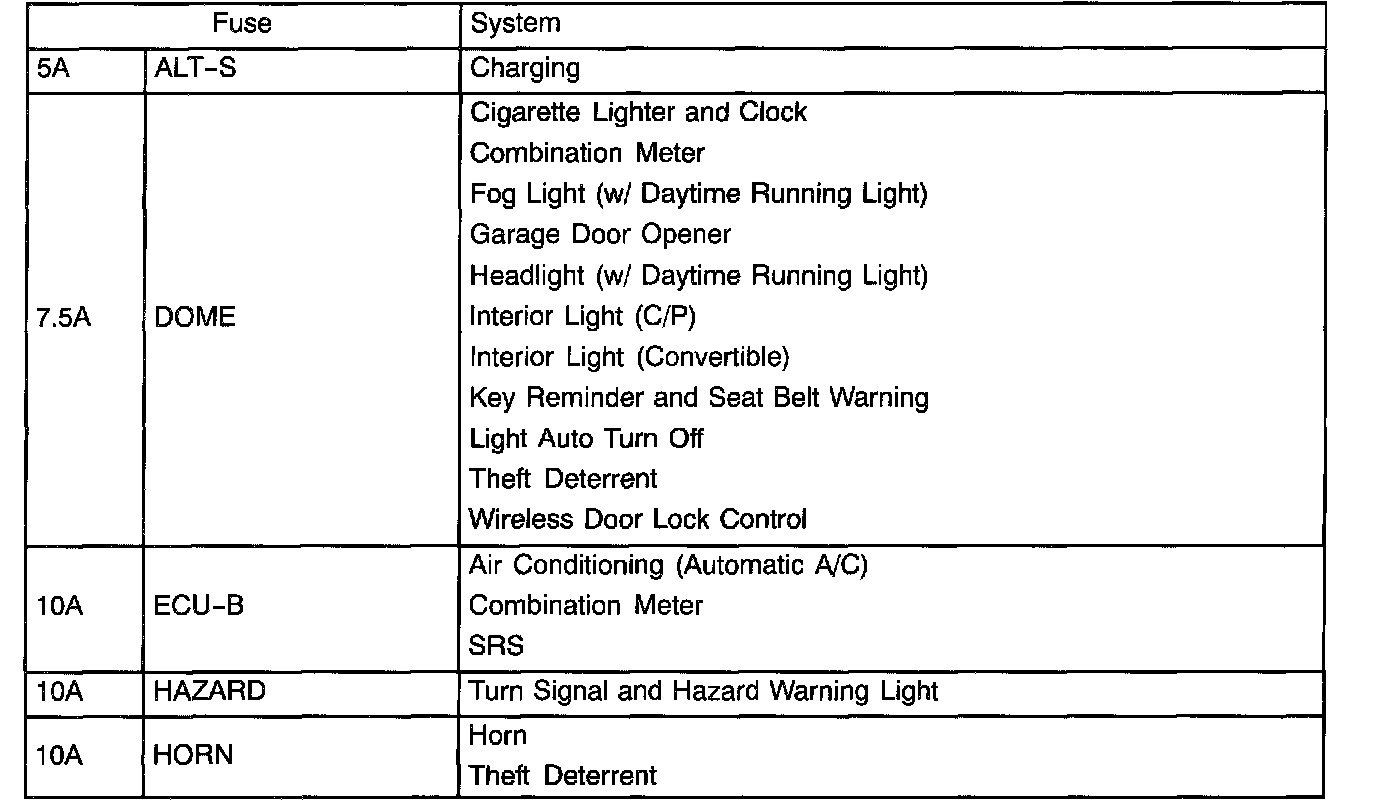

Instrument Panel J/B Fuse Applications (Part 1):

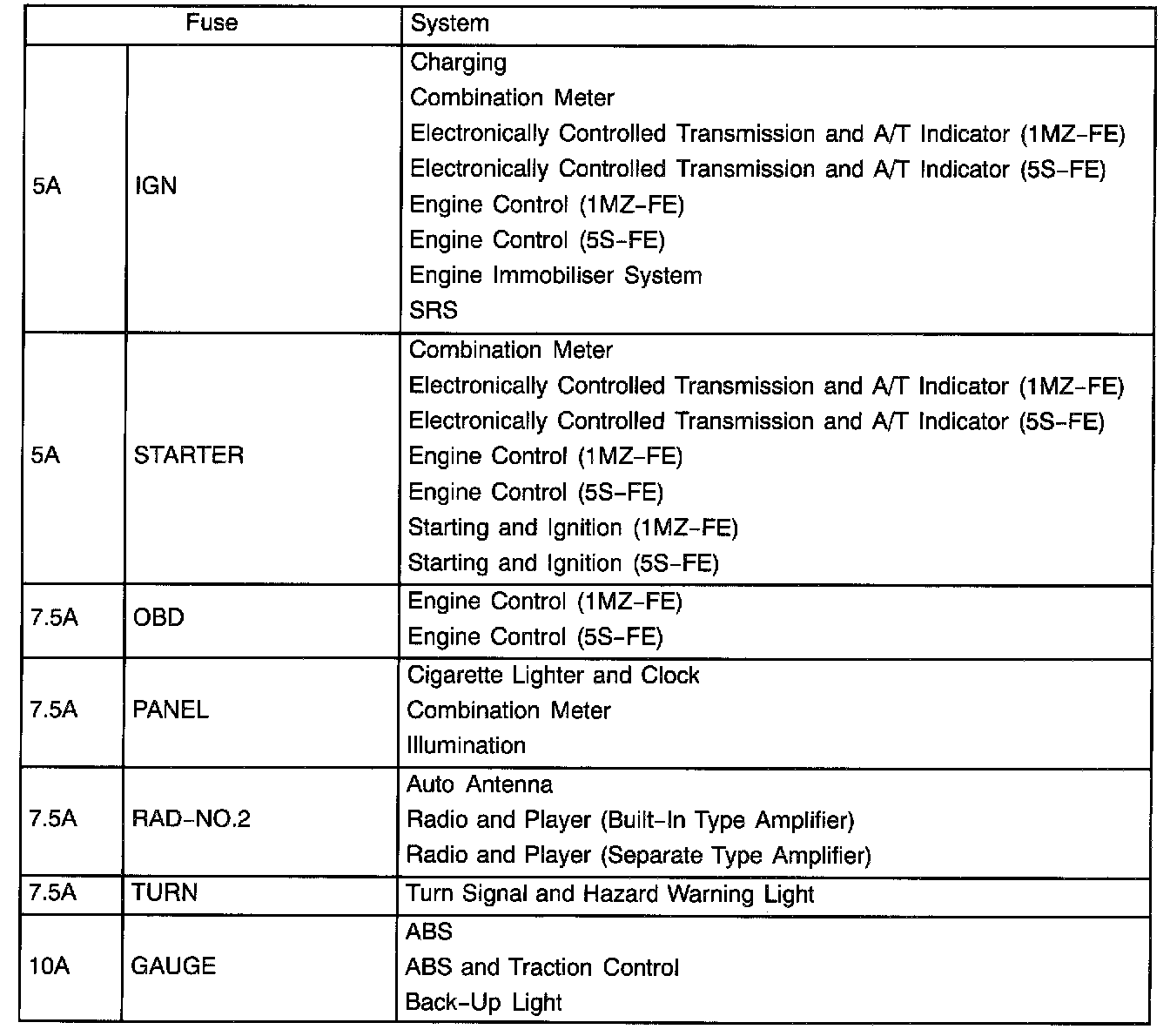

Instrument Panel J/B Fuse Applications (Part 2):

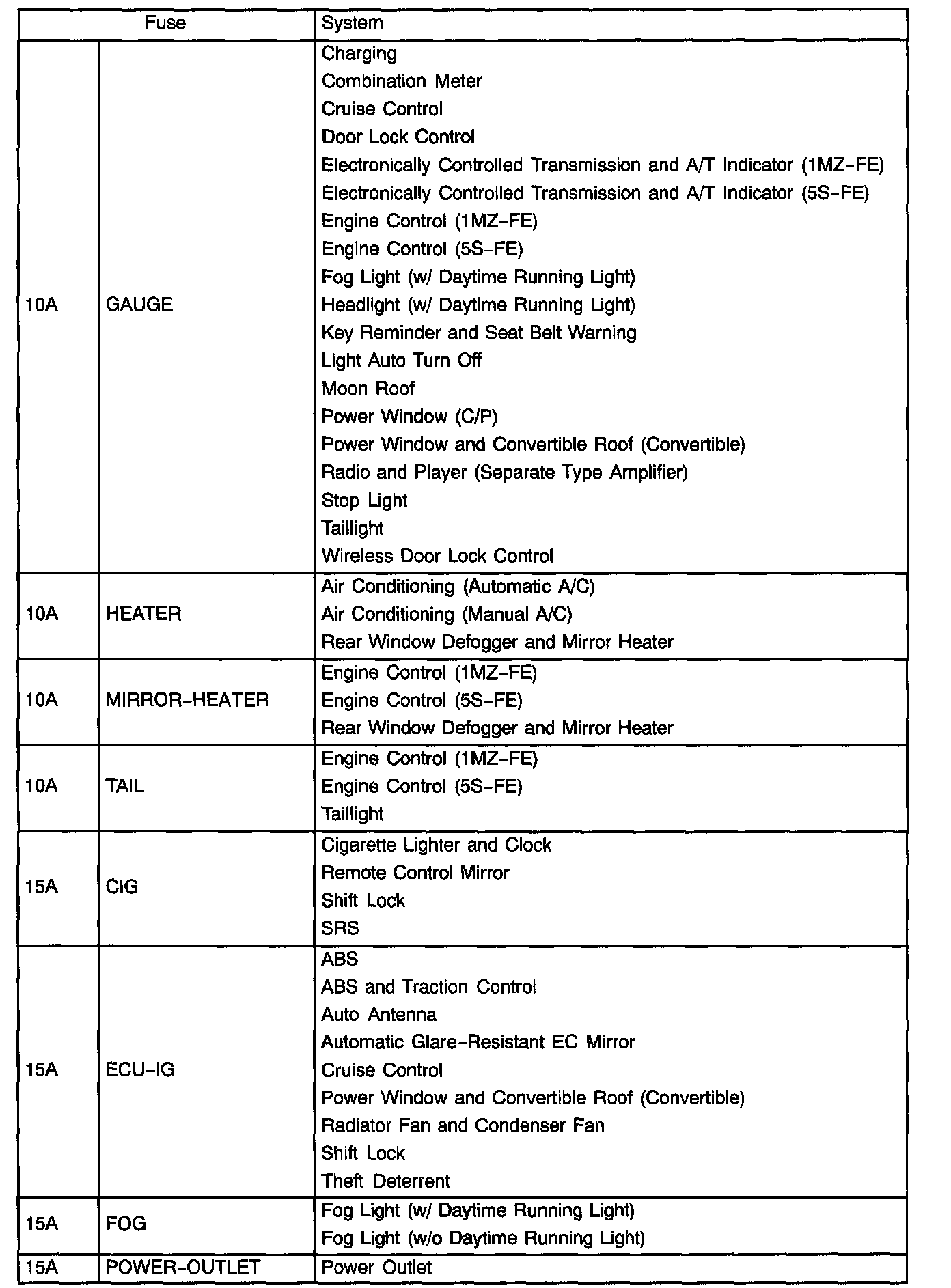

Instrument Panel J/B Fuse Applications (Part 3):
