Canada - Convertible - Popping Noise

Bulletin
0992

Issue Date
2001-08-01

Reference
BC-01-022

Model
Solara Convertible

Year Range
2000, 2001

Market
Canada

Component
BC

Subject:
CONVERTIBLE TOP POPPING NOISE

Some customers may experience a snapping or popping noise when opening the convertible top. A field fix has been developed to improve this condition.

APPLICABLE VEHICLES:
2000 - 2001 model year Solara Convertible vehicles.

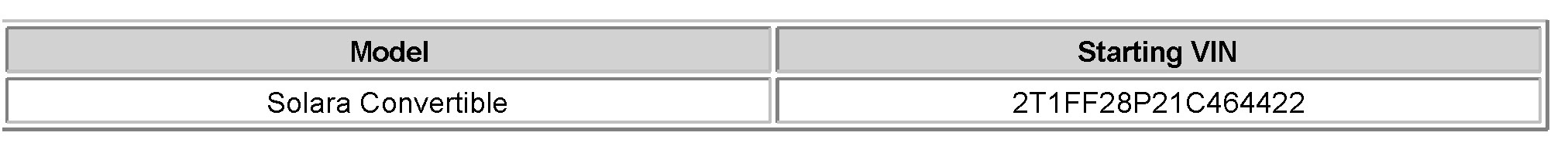

PRODUCTION CHANGE INFORMATION:





PARTS INFORMATION:

REPAIR PROCEDURE:

Previous TSB BC-00-0015 should correct most of the field concerns. However, in some cases, additional service improvements may be made.





1. Check the tarpaulin retainer (rear seat protector) gap where the front edge of the boot attaches. If the gap is greater than 5.02 mm it should be replaced with a new part.
2. Replace the tarpaulin back window assembly (with deflector) P/N 64810 AA011-C0 or 64810-AA011-E0.
3. Refer to the 2000 model year Camry Solara Convertible Repair Manual.





REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
