Automatic Transmission/Transaxle: Locations

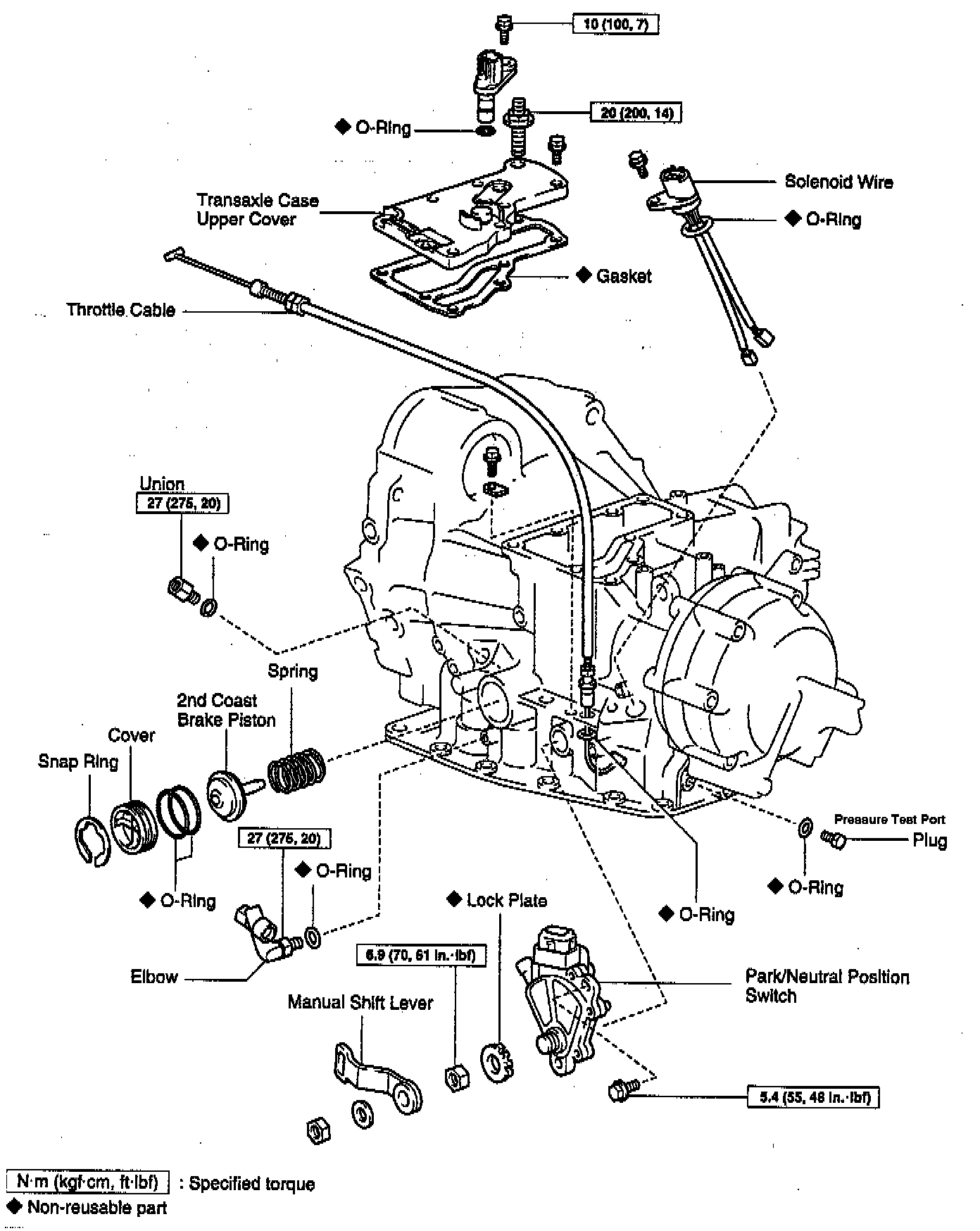

External Components:

Valve Body And Accumulators:

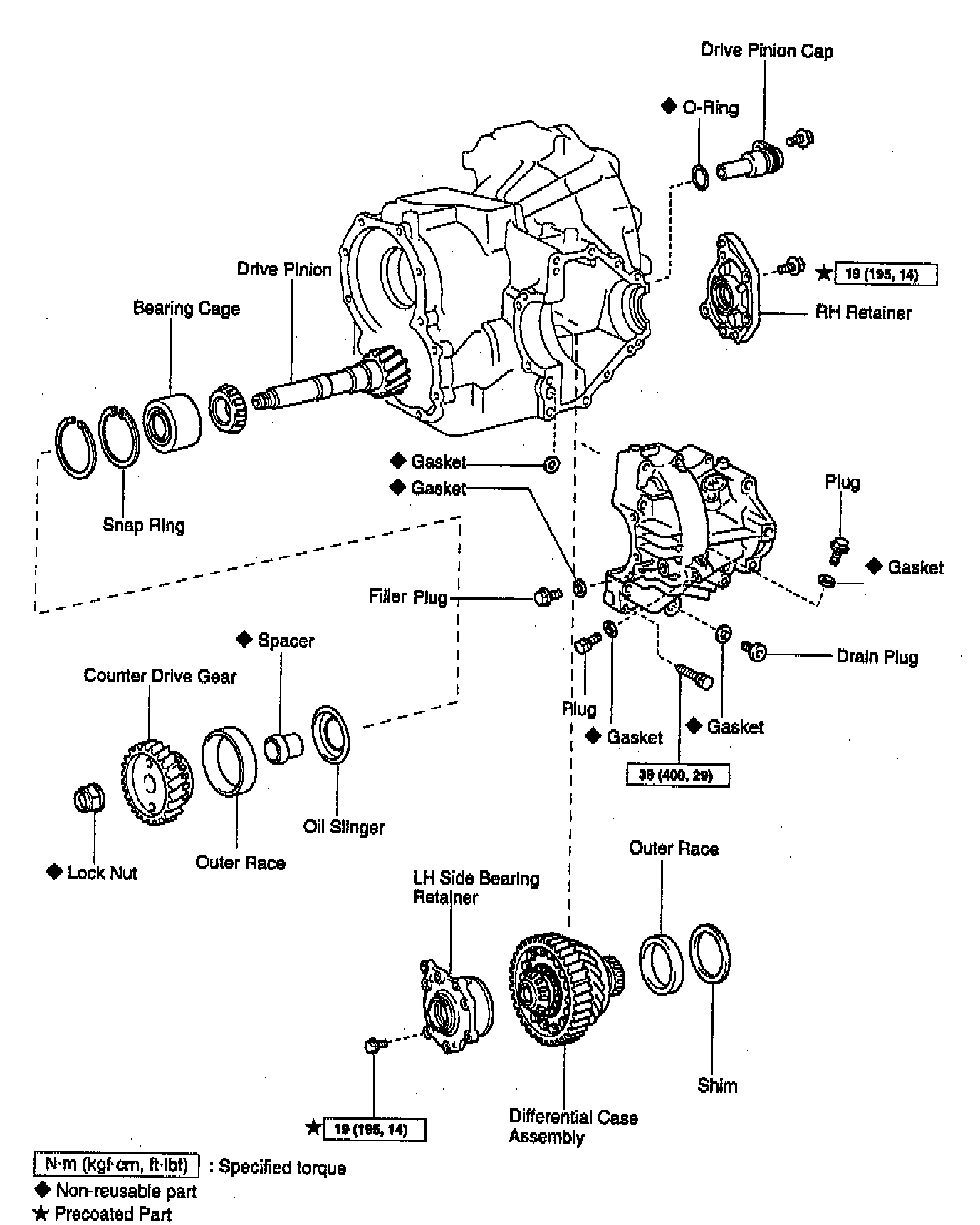

Differential:

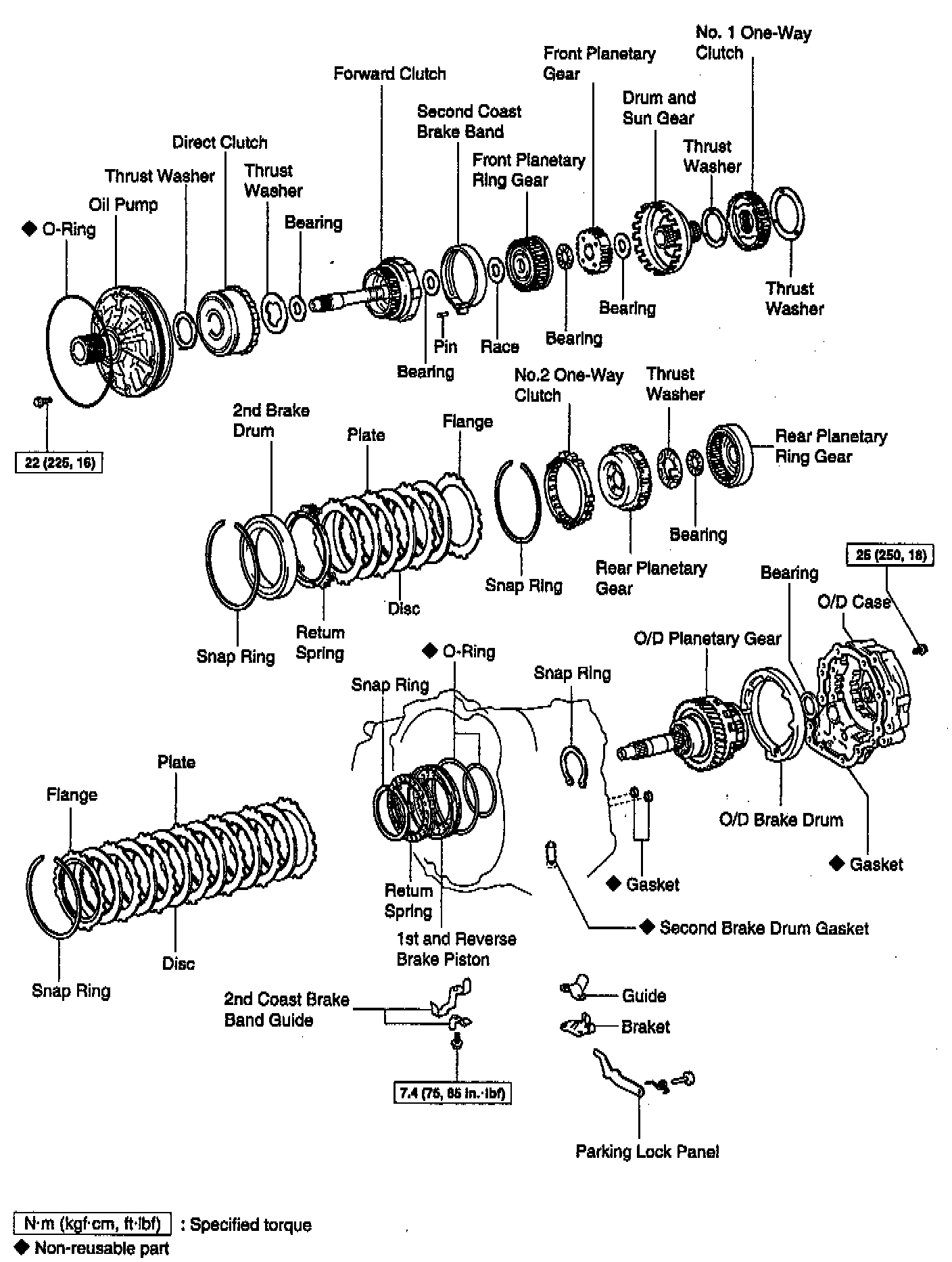

Internal Components:

Thrust Bearings:

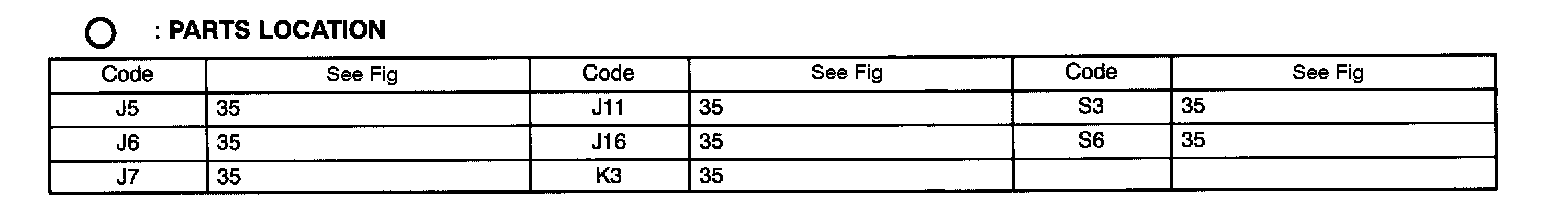

Parts Location:

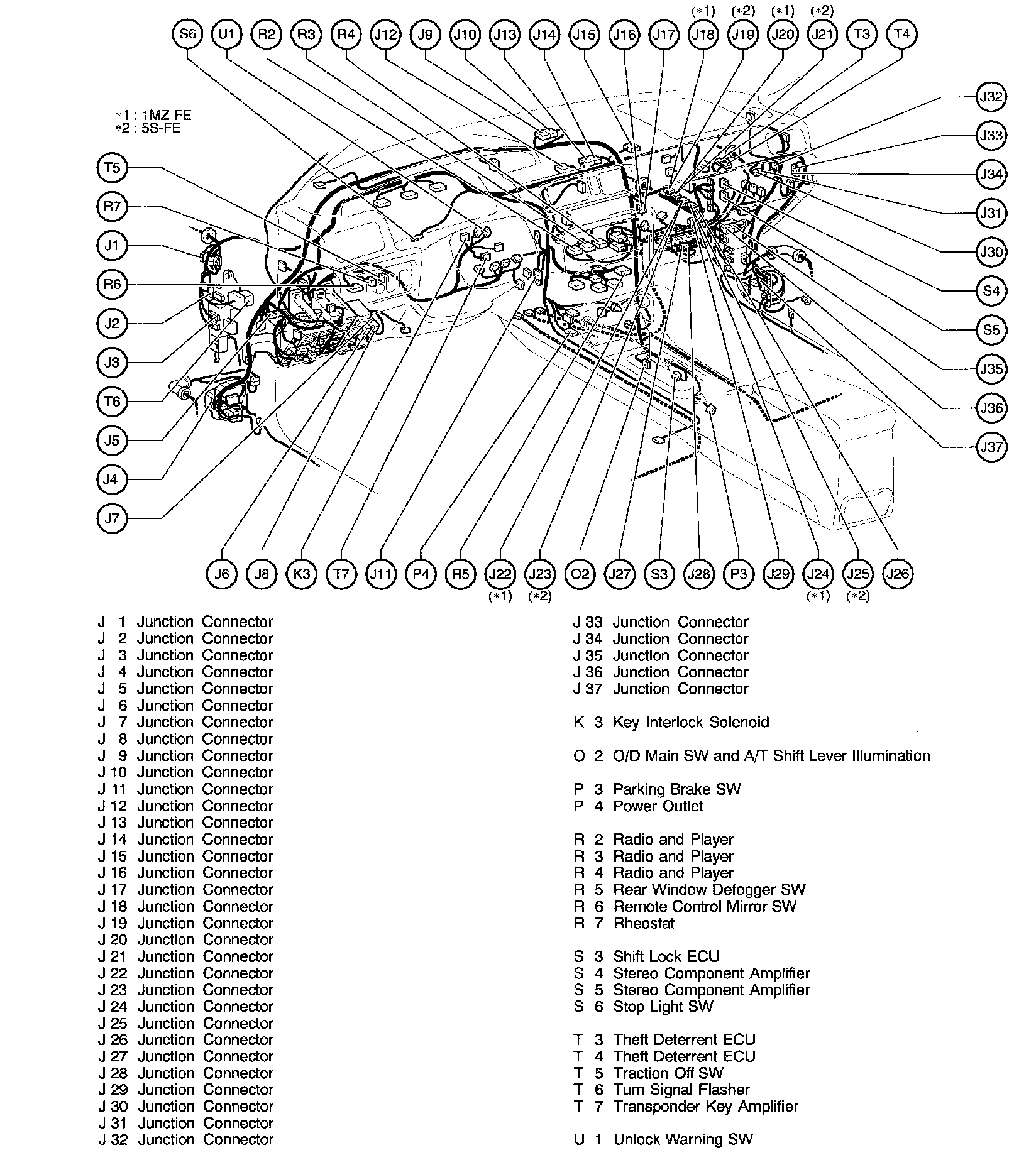

Position Of Parts In Instrument Panel (Part II):
