Body
Body

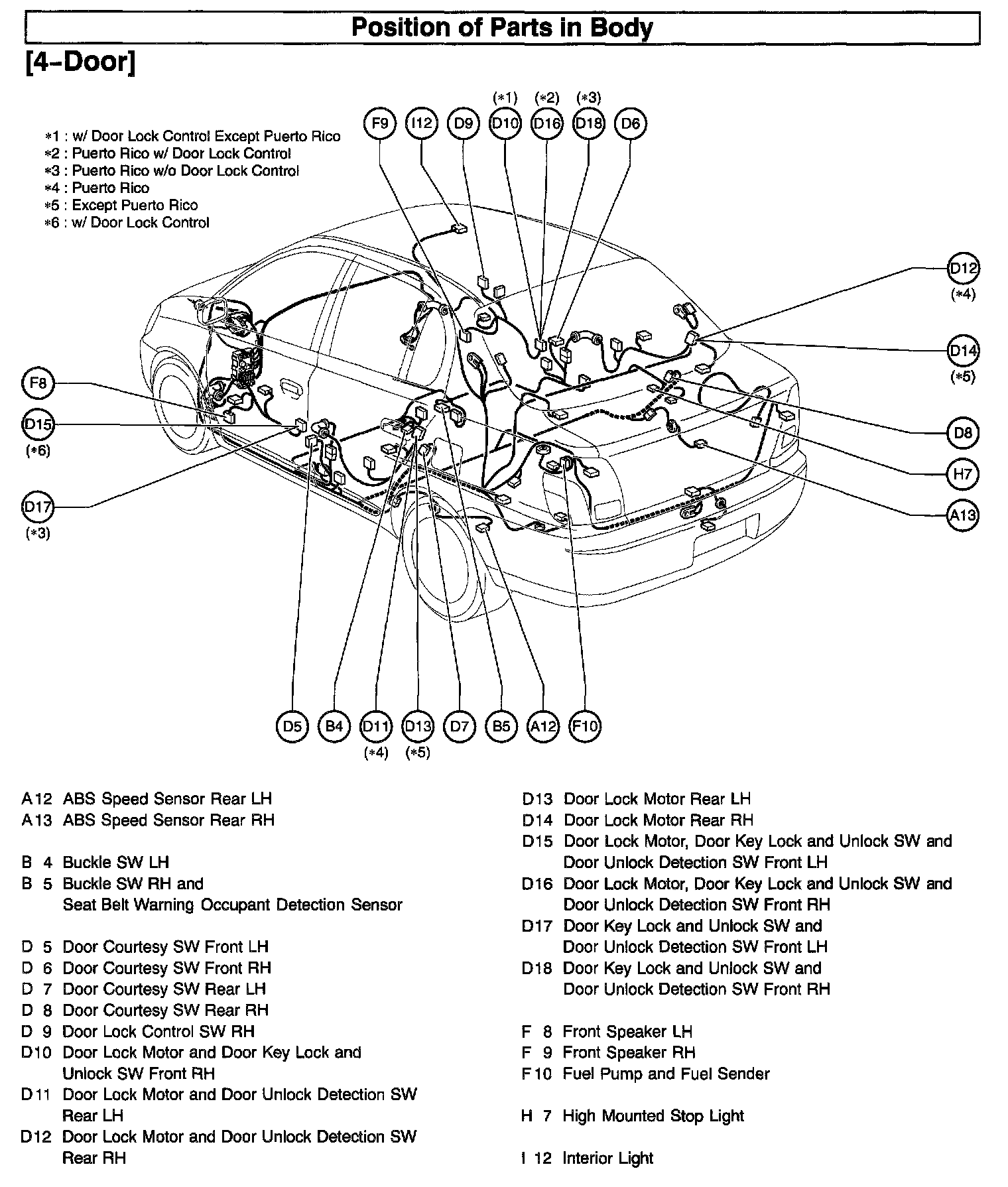

Position Of Parts In Body (4 - Door) (Part 1):

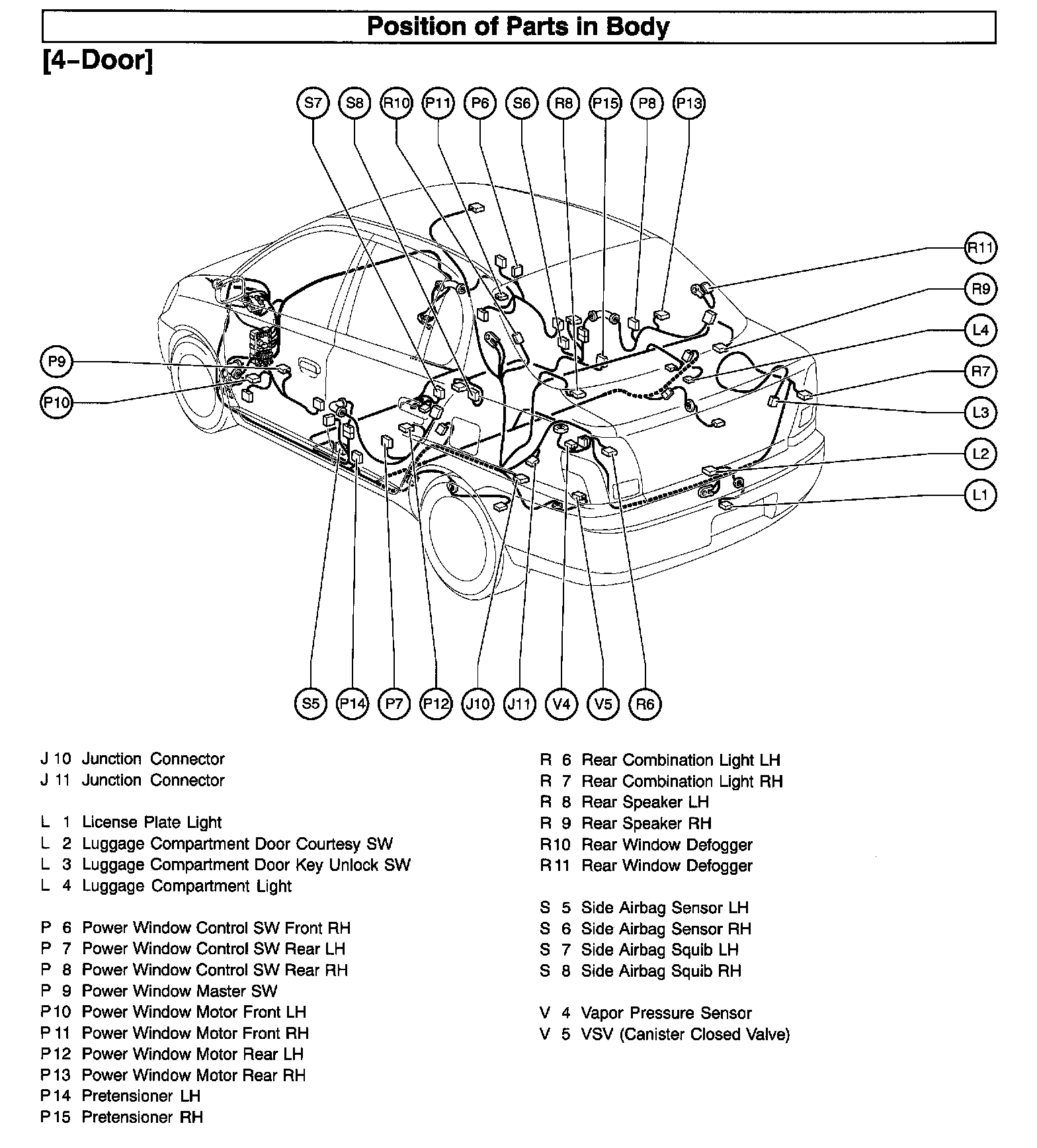

Position Of Parts In Body (4 - Door) (Part 2):

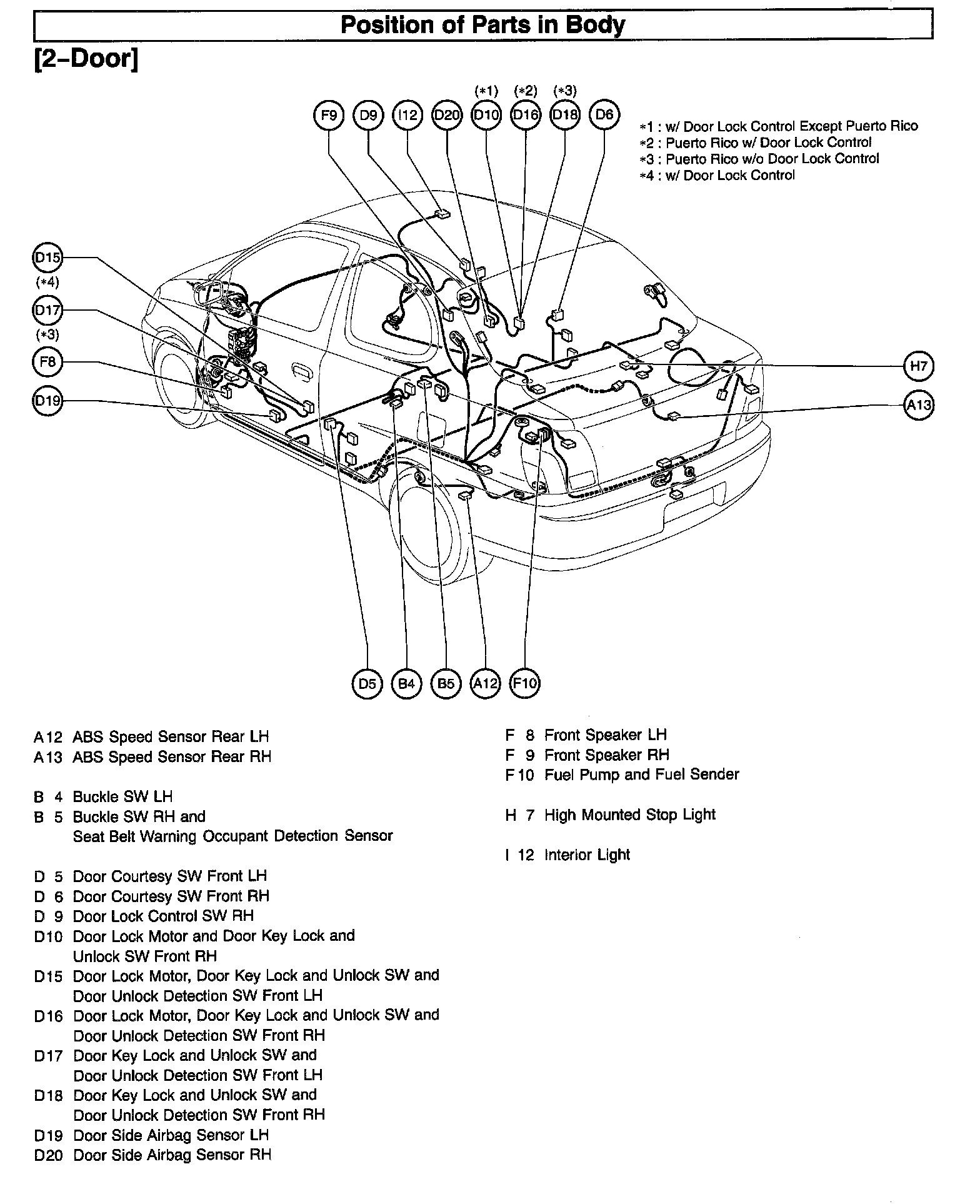

Position Of Parts In Body (2 - Door) (Part 1):

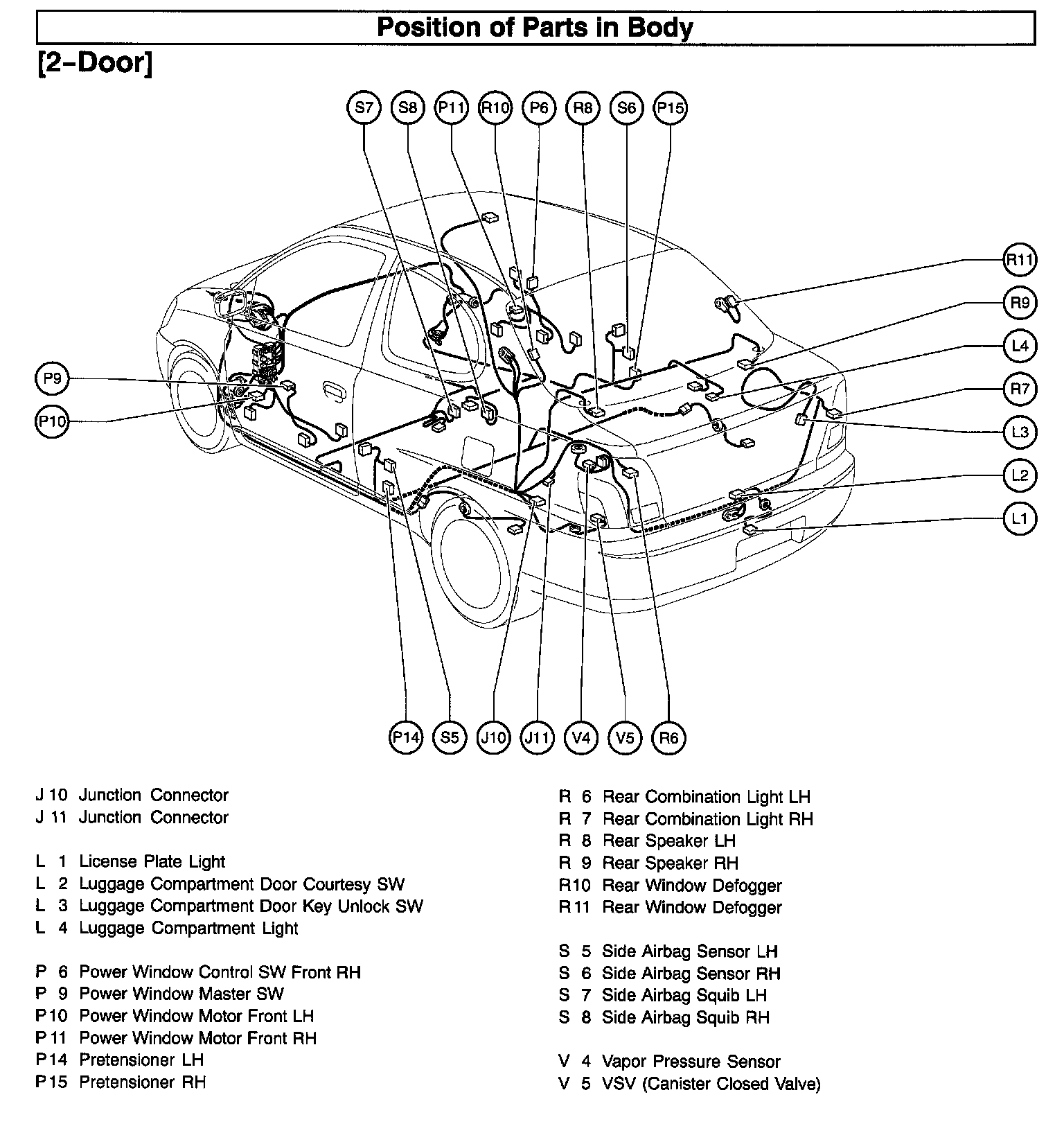

Position Of Parts In Body (2 - Door) (Part 2):
