Instrument Cluster / Carrier

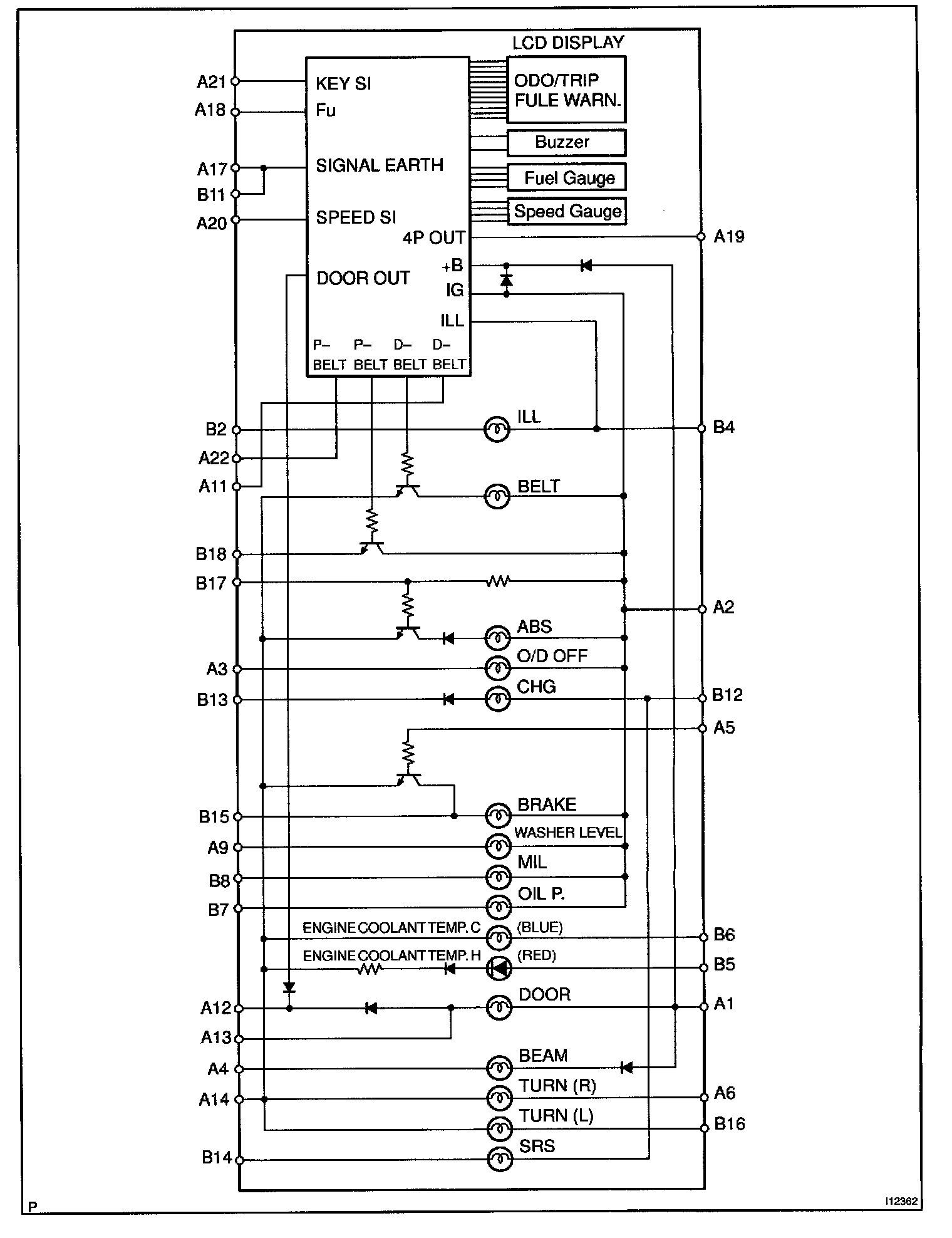

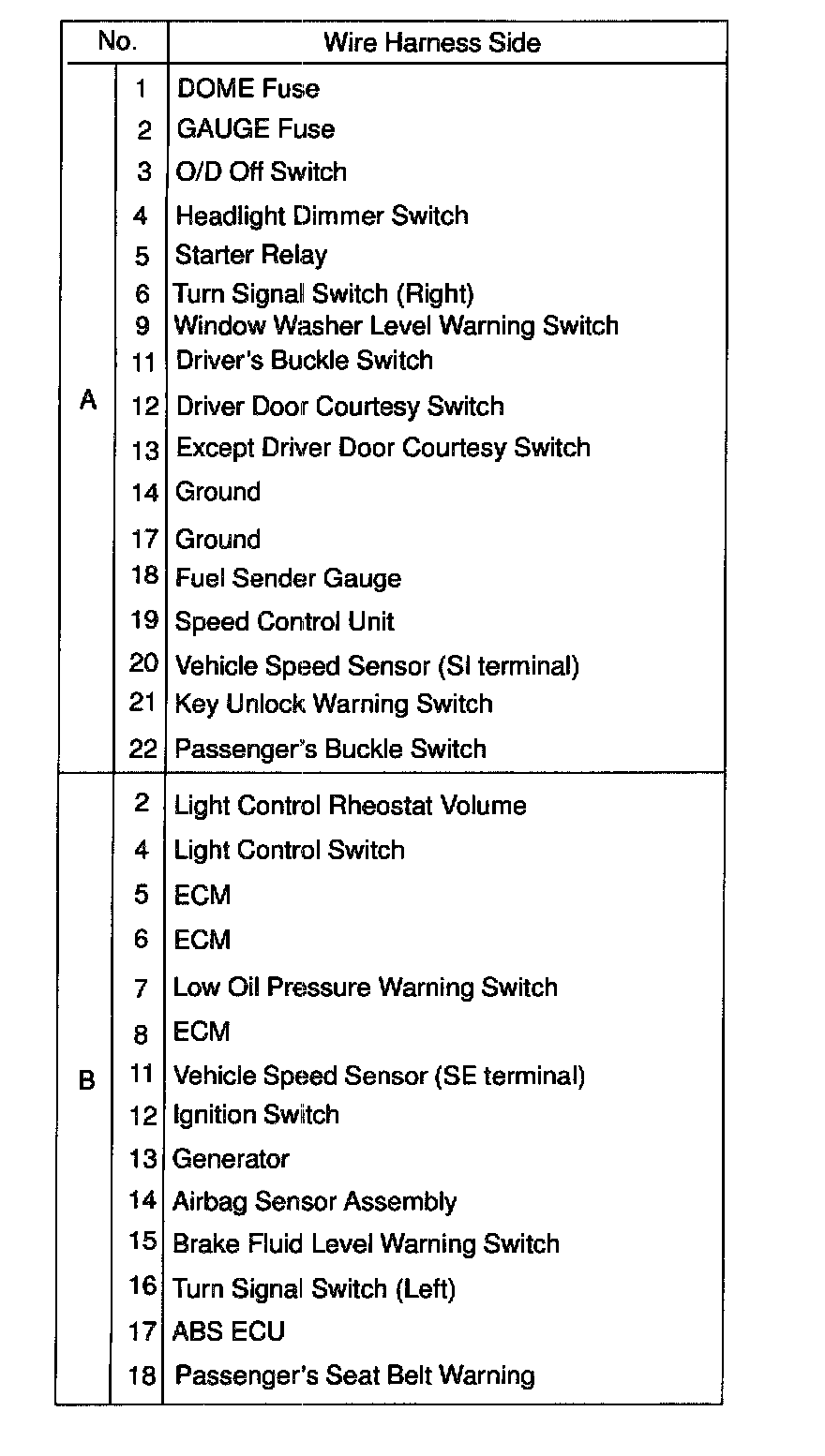

Circuit (Part 1):

Circuit (Part 2):

Circuit (Part 3):

Tailight And Illumination (Part 1):

Tailight And Illumination (Part 2):

Combination Meter (Part 1):

Radio And Player:

Combination Meter (Part 3):
