Drive Belt: Service and Repair

REMOVAL




REMOVE DRIVE BELT

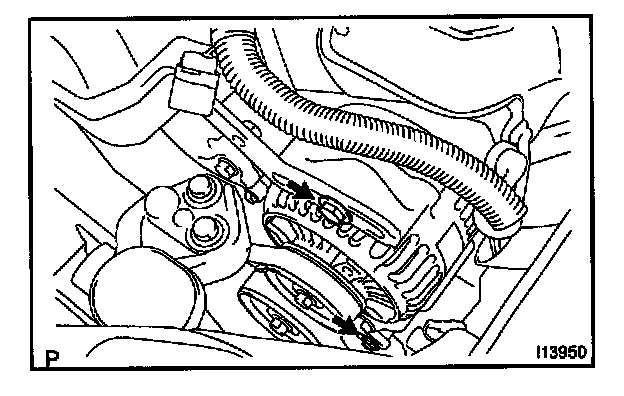

a. Loosen the pivot bolt
b. Loosen the drive belt tension by turning adjusting bolt and remove the drive belt.

INSTALLATION




INSTALL DRIVE BELT
a. Install the drive belt.
b. Apply drive belt tension by turning adjusting bolt.

Drive belt tension:
New belt: 7.0 - 8.5 mm (0.28 - 0.33 in.)
Used belt: 11.0 - 13.0 mm (0.43 - 0.51 in.)

c. Tighten the pivot bolt.

Torque: 54 N.m (540 kgf.cm, 39 ft.lbf)
