Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Component Locations
Component Locations

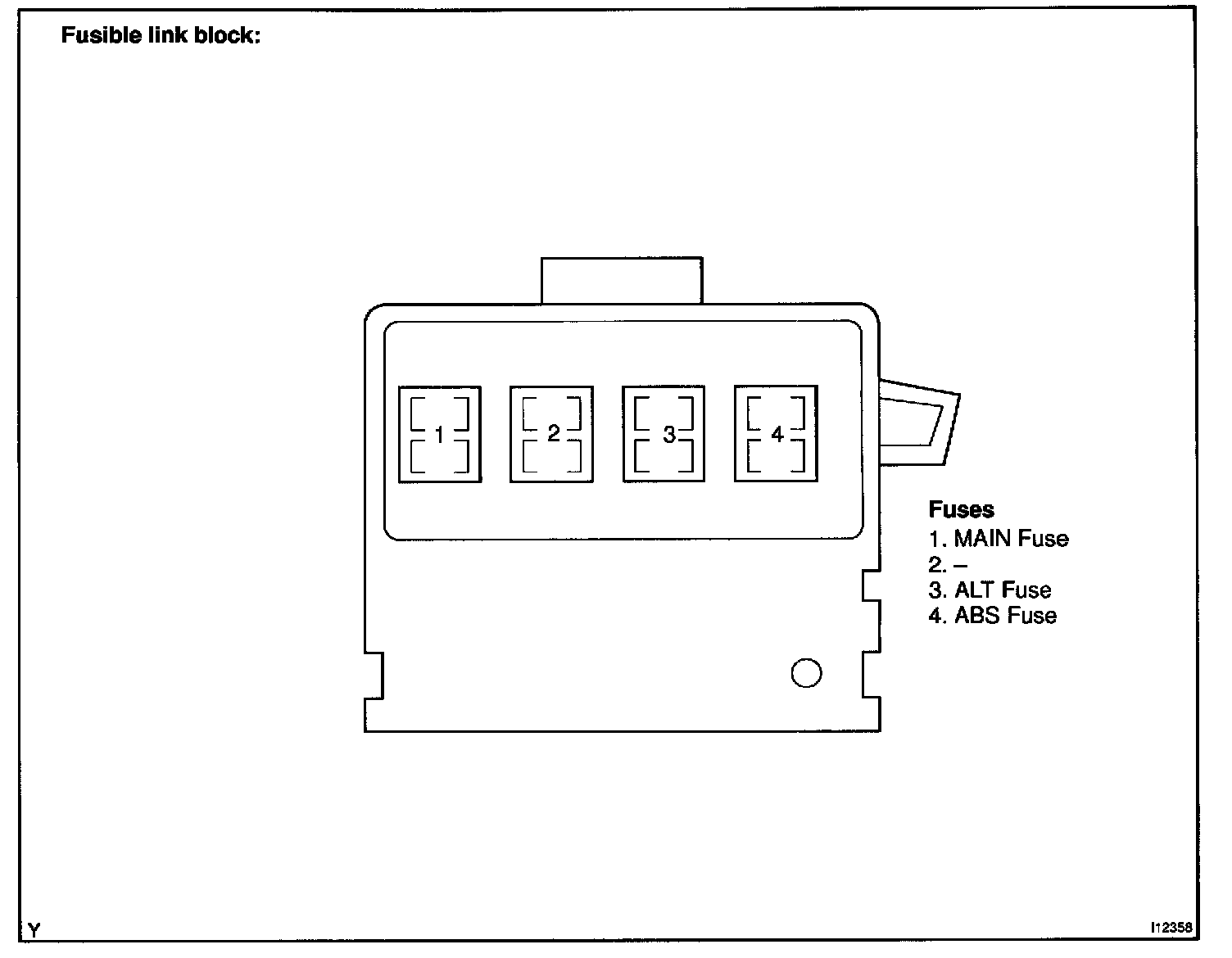

Power Source (Part 1):

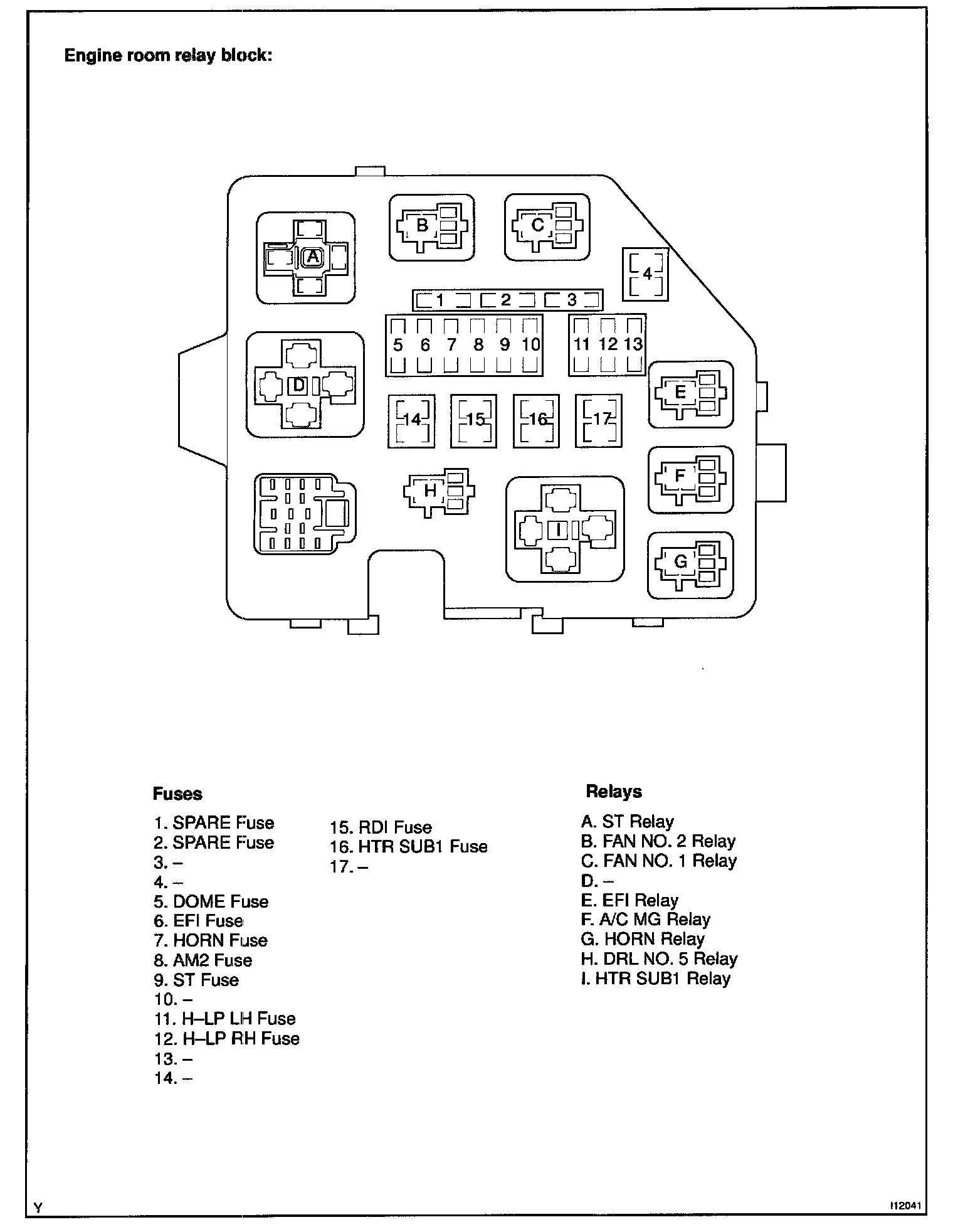

Power Source (Part 2):

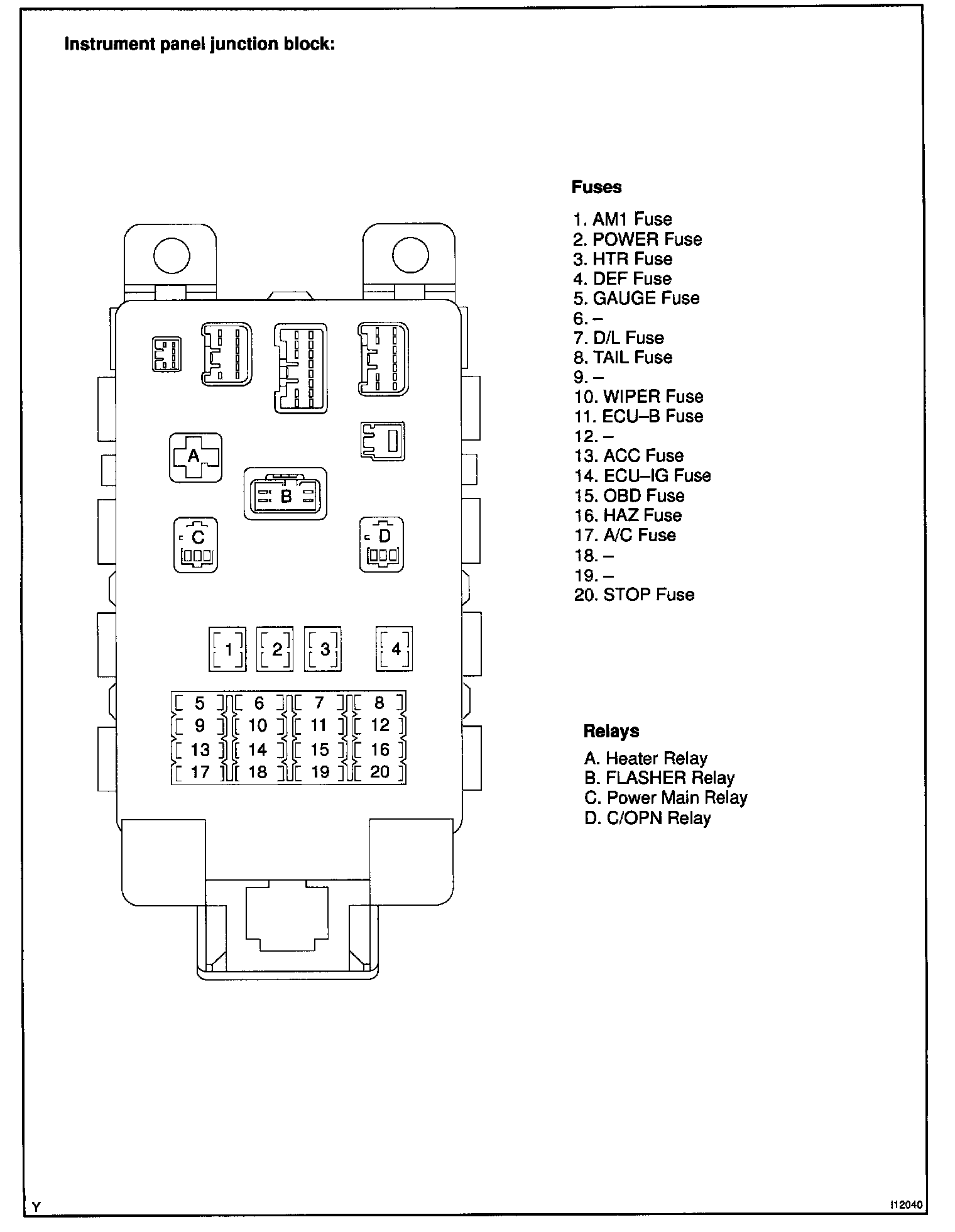

Power Source (Part 3):
Power Source (Part 4):
