Harness Locations

Body (4-Door):

Ground Location
BG Left Quarter Pillar
BH Right Quarter Pillar
BI Lower Back Panel Center

Connector Location
BA1 Rear Door No.2 Wire and Floor Wire (Under the Center Pillar LH)
BA2 Rear Door No.2 Wire and Floor Wire (Under the Center Pillar LH)
BB1 Rear Door No.1 Wire and Floor Wire (Under the Center Pillar RH)
BB2 Rear Door No.1 Wire and Floor Wire (Under the Center Pillar RH)
BC1 Skid Control Sensor Rear LH Wire and Floor wire (Front Side of the Quarter Wheel House Inner Panel LH)
BD1 Skid Control Sensor Rear RH Wire and Floor wire (Front Side of the Quarter Wheel House Inner Panel RH)

Body (2-Door):

Ground Location
BG Left Quarter Pillar
BH Right Quarter Pillar
BI Lower Back Panel Center

Connector Location
BC1 Skid Control Sensor Rear LH Wire and Floor wire (Front Side of the Quarter Wheel House Inner Panel LH)
BD1 Skid Control Sensor Rear RH Wire and Floor wire (Front Side of the Quarter Wheel House Inner Panel RH)

Engine Compartment:

Ground Location
EA
EB Cylinder Head
EC Front Fender Apron LH

Connector Location
EA1 Engine Wire and Knock Sensor Wire (Near the Starter)
EB1 Engine Wire and Engine Room Main Wire (Inside of the Engine Room R/B)
EC1 Power Steering Sensor Wire and Engine Wire (Head Cover RH)

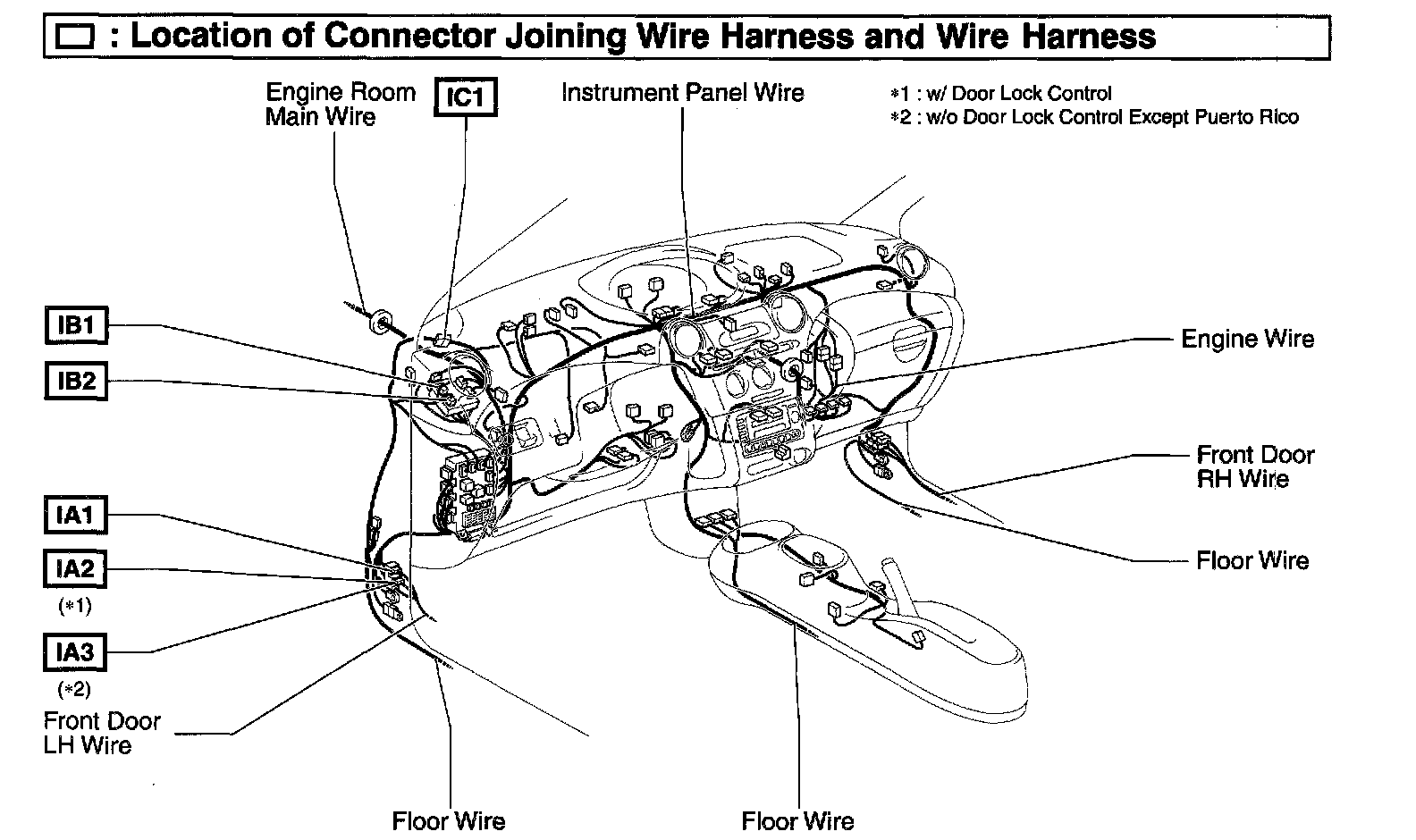

Instrument Panel:

Connector Location
IA1 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IA2 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IA3 Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)
IB1 Floor Wire and Instrument Panel Wire (Behind the Reinforce LH)
IB2 Floor Wire and Instrument Panel Wire (Behind the Reinforce LH)
IC1 Engine Room Main Wire and Floor Wire (Left Side of the Cowl Panel)

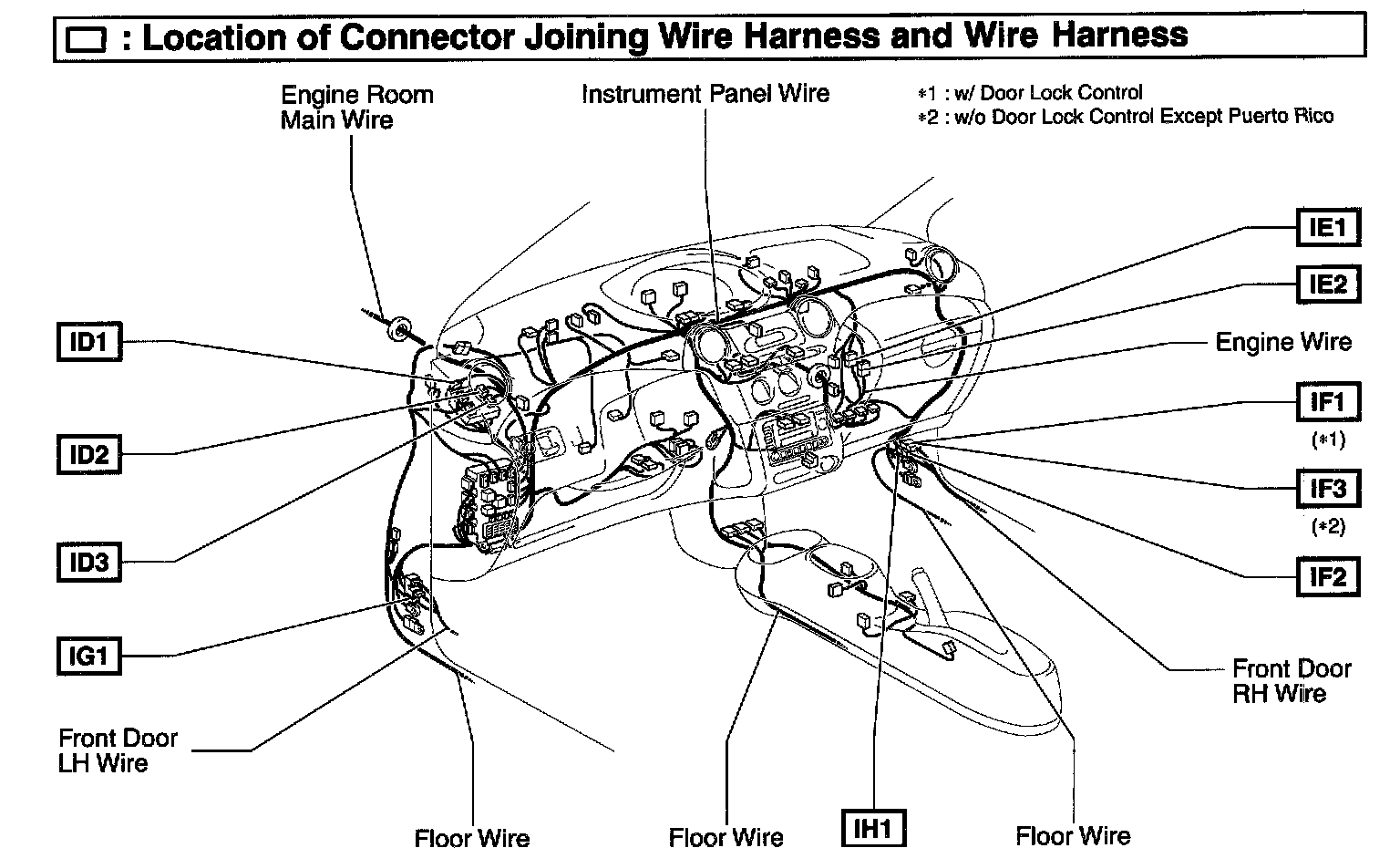

Instrument Panel:

Connector Location
ID1 Engine Room Main Wire and Instrument Panel Wire (Behind the Reinforce LH)
ID2 Engine Room Main Wire and Instrument Panel Wire (Behind the Reinforce LH)
ID3 Engine Room Main Wire and Instrument Panel Wire (Behind the Reinforce LH)
IE1 Engine Wire and Instrument Panel Wire (Behind the Glove Box)
IE2 Engine Wire and Instrument Panel Wire (Behind the Glove Box)
IF1 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IF2 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IF3 Front Door RH Wire and Instrument Panel Wire (Right Kick Panel)
IG1 Front Door LH Wire and Floor Wire (Left Kick Panel)
IH1 Front Door RH Wire and Floor Wire (Right Kick Panel)
