Relay Box: Locations
Engine Room R/B:
Fusible Link Block:

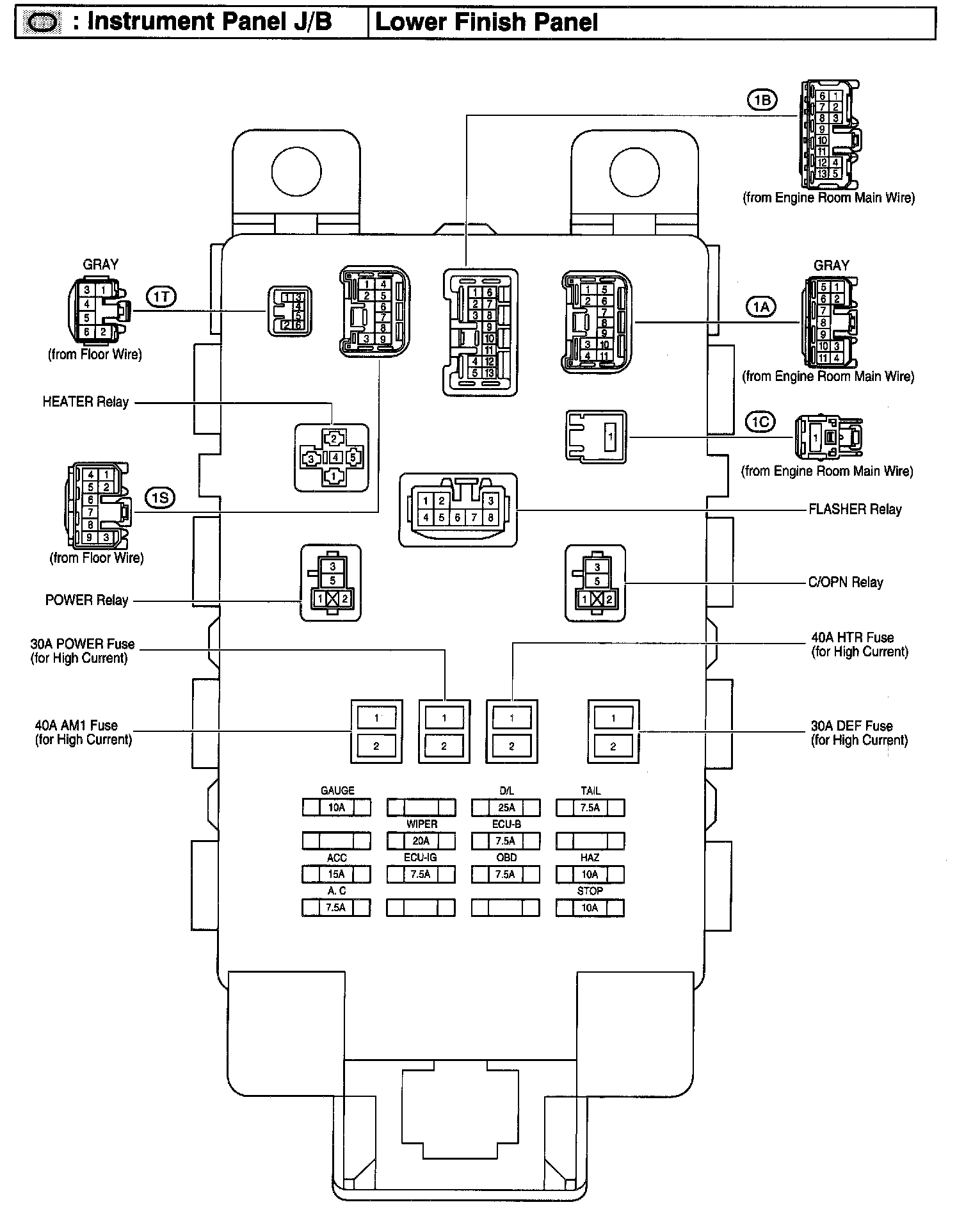

Instrument Panel J/B (Part 1):
Details

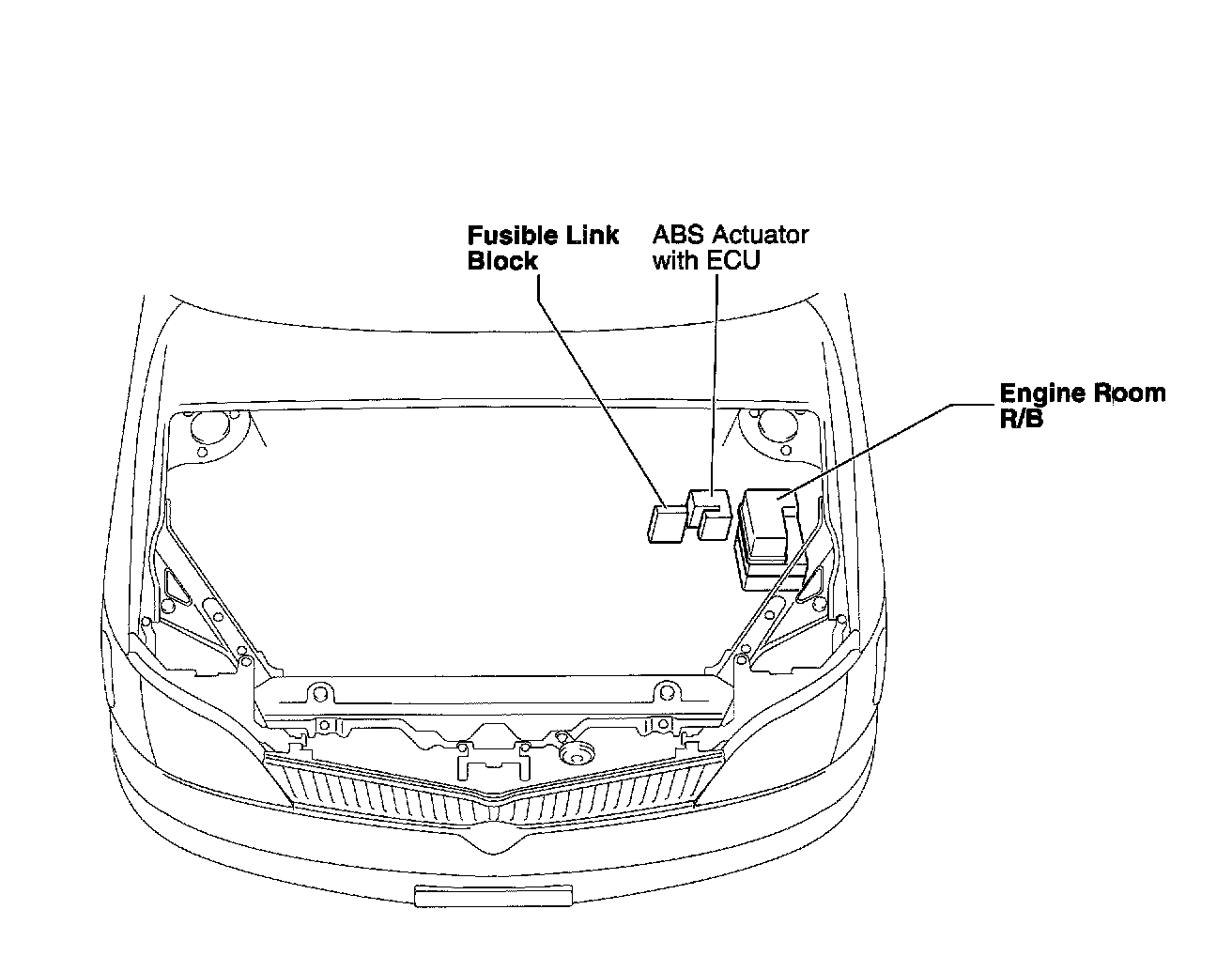

Engine Compartment:

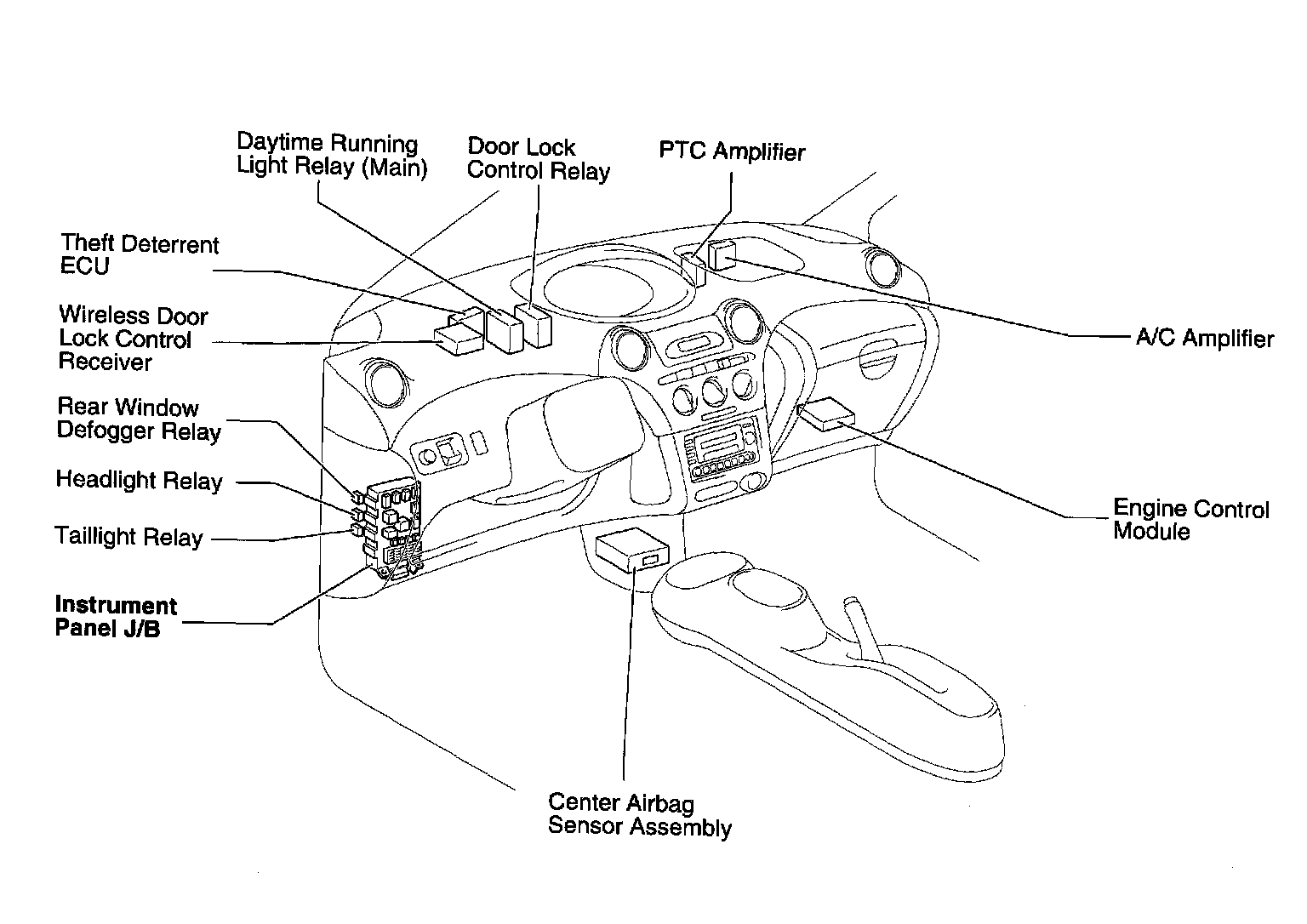

Instrument Panel:
Locations
