Splice Locations

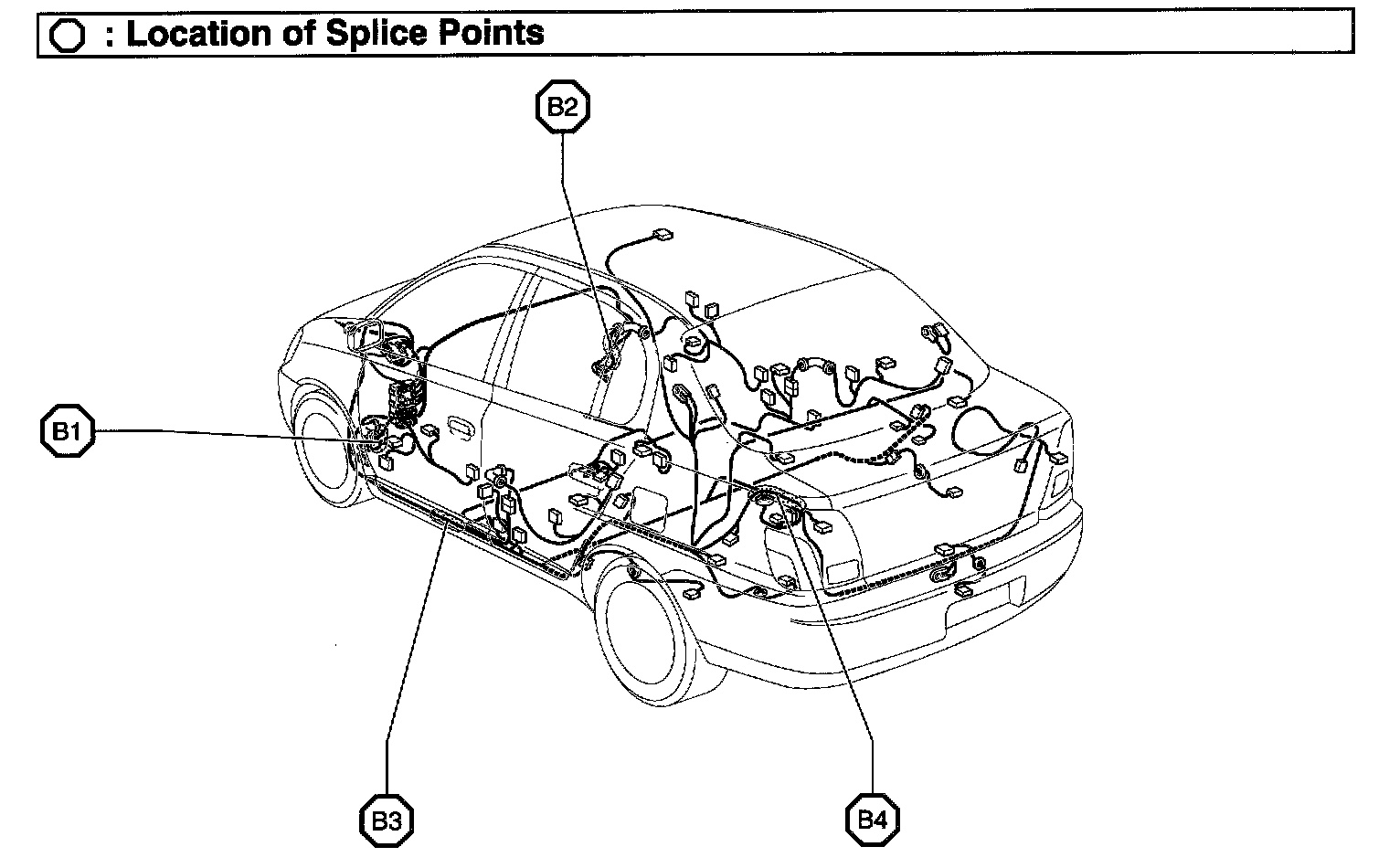

Body (4-Door):
Splice Location
B1 Front Door LH Wire
B2 Front Door RH Wire
B3 Floor Wire
B4 Floor Wire
Body (2-Door):
Splice Location
B2 Front Door RH Wire
B4 Floor Wire

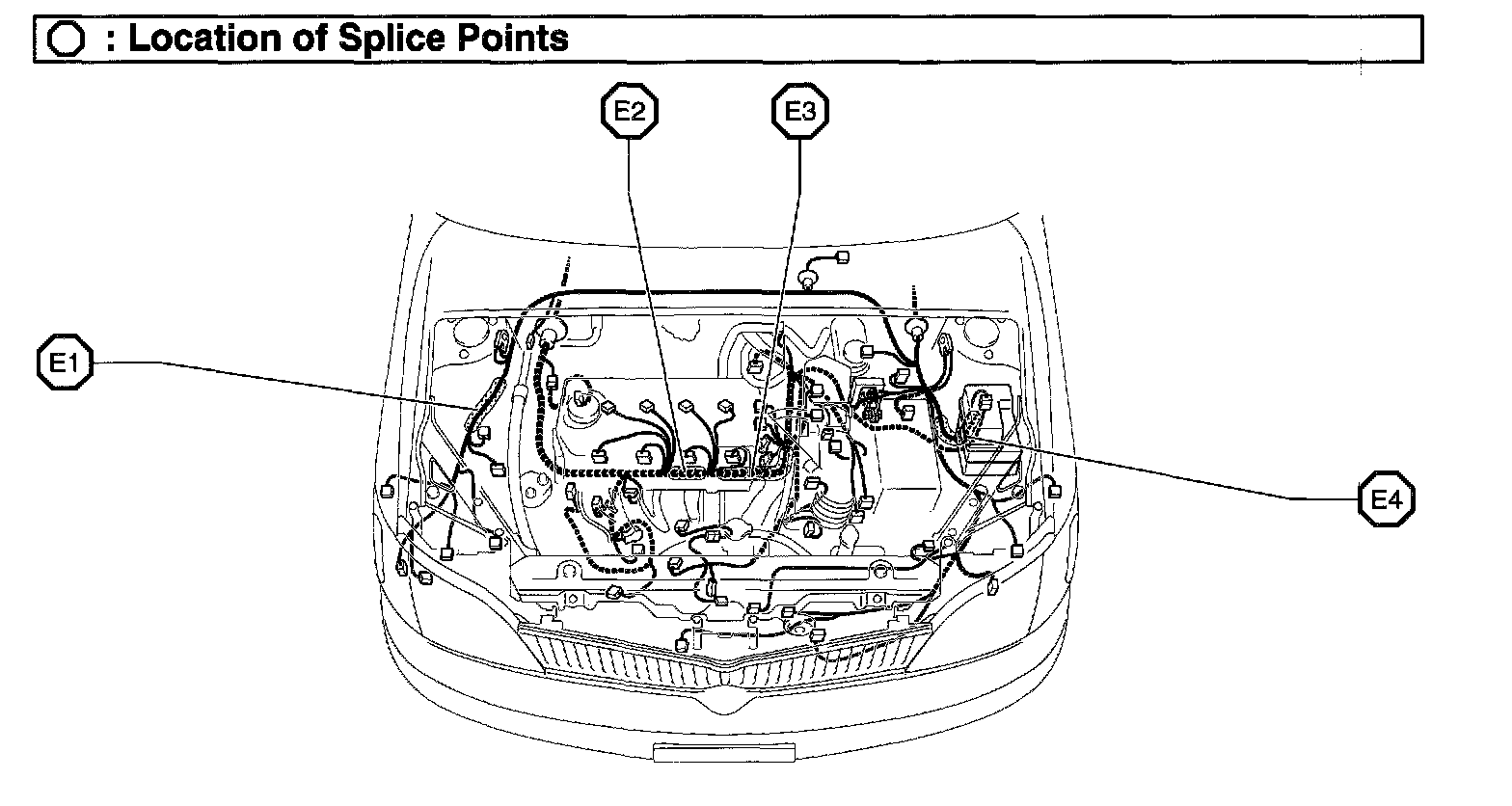

Engine Compartment:
Splice Location
E1 Engine Roof Main Wire
E2 Engine Wire
E3 Engine Wire
E4 Engine Roof Main Wire

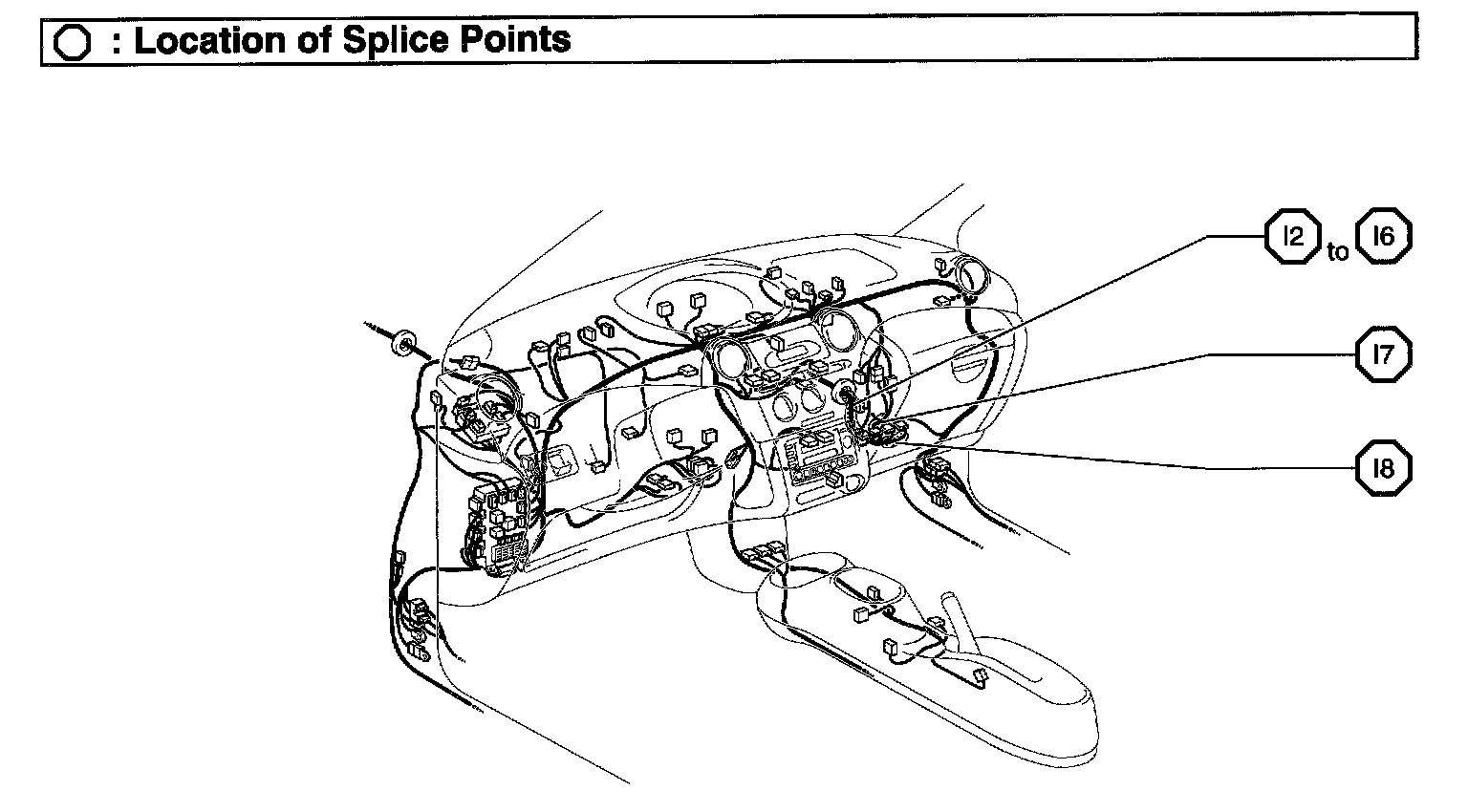

Instrument Panel / Center Console:
Splice Location
I2 to I8 Engine Wire
