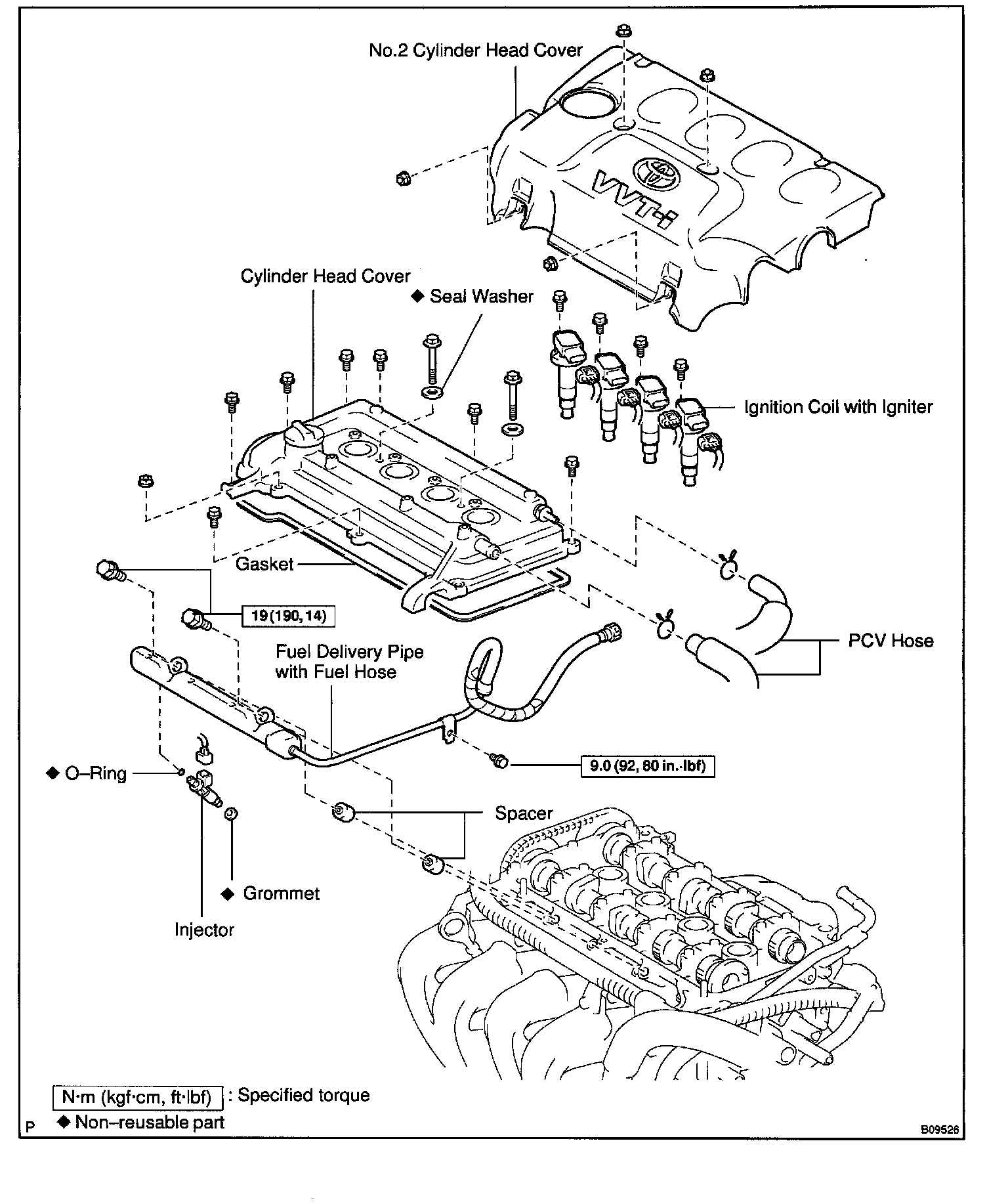

Fuel Injector
Injector:
2 bolts holding the delivery pipe to the cylinder head.
Torque:.....................19 N.m (190 kgf.cm, 14 ft.lbf)
Bolt holding the fuel pipe to the cylinder head.
Torque:.....................9.0 N.m (92 kgf.cm, 80 in.lbf)
2 bolts holding the delivery pipe to the cylinder head.
Torque:.....................19 N.m (190 kgf.cm, 14 ft.lbf)
Bolt holding the fuel pipe to the cylinder head.
Torque:.....................9.0 N.m (92 kgf.cm, 80 in.lbf)
