Body/Frame - Roof Molding Comes Loose

BODY
BO01-02

Title:
ROOF DRIP MOLDING LOOSE

Models:
'01 - '02 ECHO

July 12, 2002

Introduction

The roof molding may come loose or become deformed on certain 2001 model year ECHO vehicles.

Applicable Vehicles
^ 2001 - 2002 model year ECHO vehicles produced before the VIN shown below.





Production Change Information





Parts Information

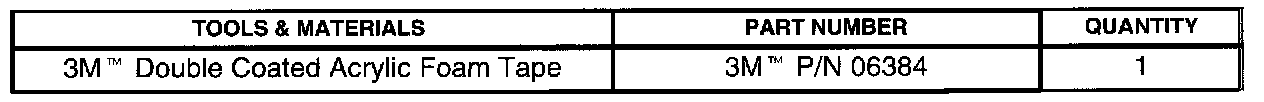

Required Tools & Material





Warranty Information

Applicable Warranty *:

This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

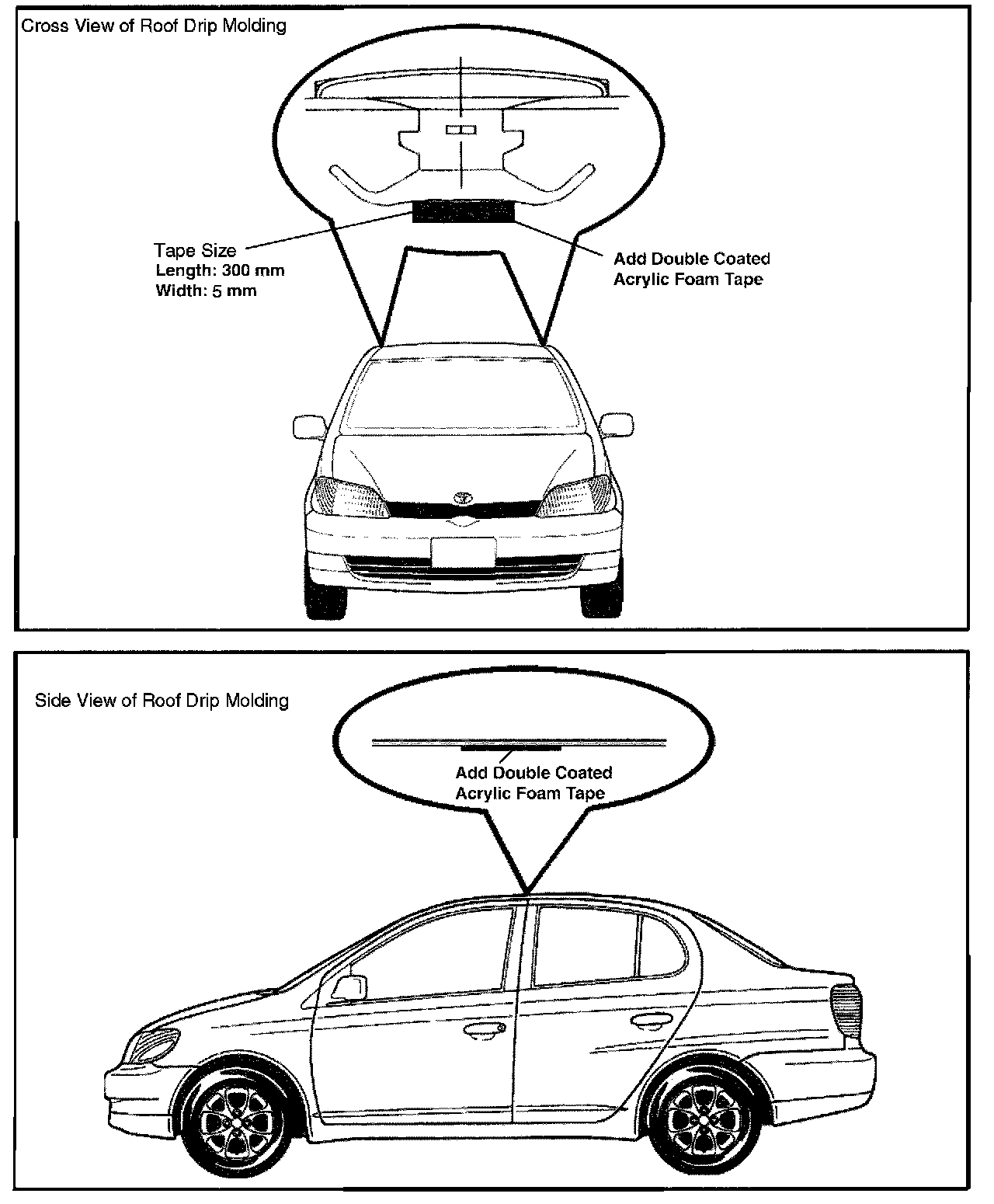

Add double coated acrylic foam tape to the center portion of the roof molding as shown in the illustrations.

Tape Size:

Length: 300 mm
Width: 5 mm

NOTE:
Replace molding as necessary.
