Canada - Body/Frame - Roof Molding Comes Loose

Bulletin
1112

Issue Date
2002-07-15

Reference
BC-02-013

Model
Echo

Year Range
2002, 2001

Market
Canada

Component
BC

Subject:
ROOF DRIP MOULDING LOOSE

The roof molding may come loose or become deformed on certain 2001 model year ECHO vehicles.

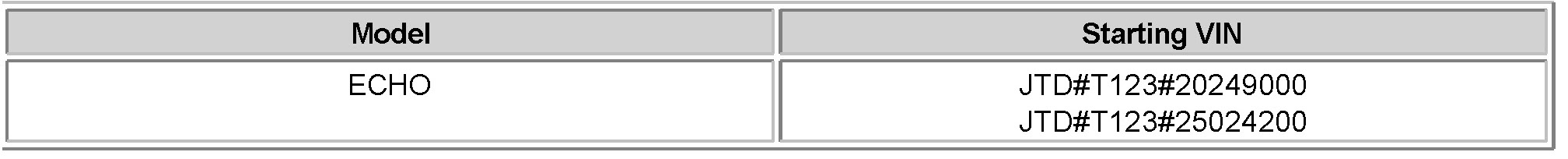

APPLICABLE VEHICLES: 2001 - 2002 model year ECHO vehicles produced before the VIN shown below.







PRODUCTION CHANGE INFORMATION:

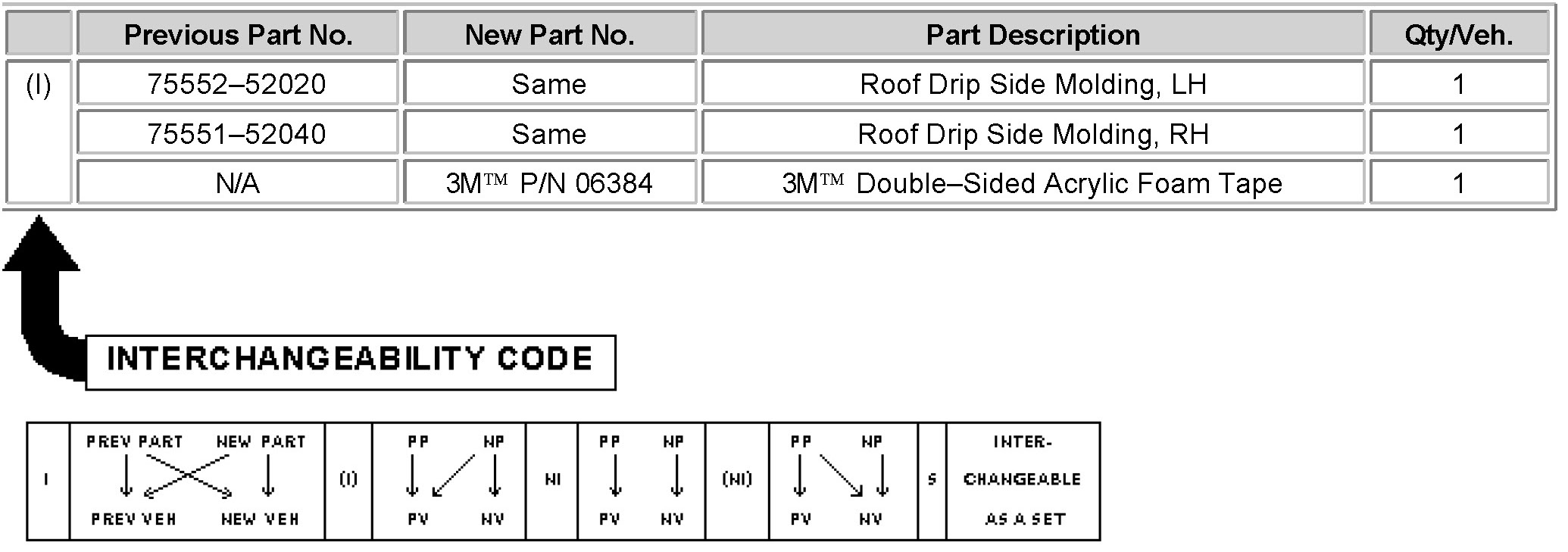

PARTS INFORMATION:

REPAIR PROCEDURE:

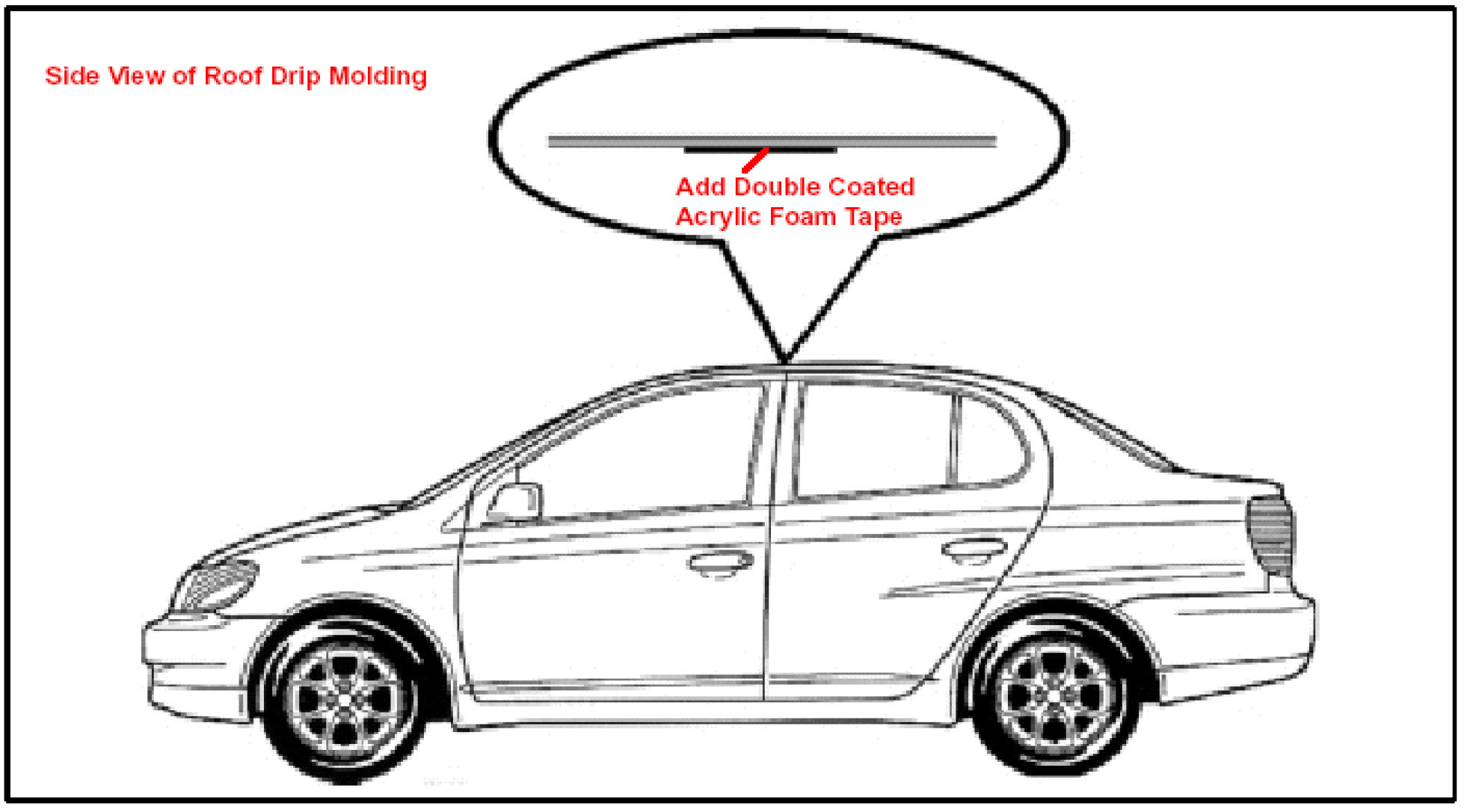

Add double coated acrylic foam tape to the center portion of the roof molding as shown in the illustrations.
Tape Size:
Length: 300 mm
Width: 5 mm







NOTE:
Replace molding as necessary.

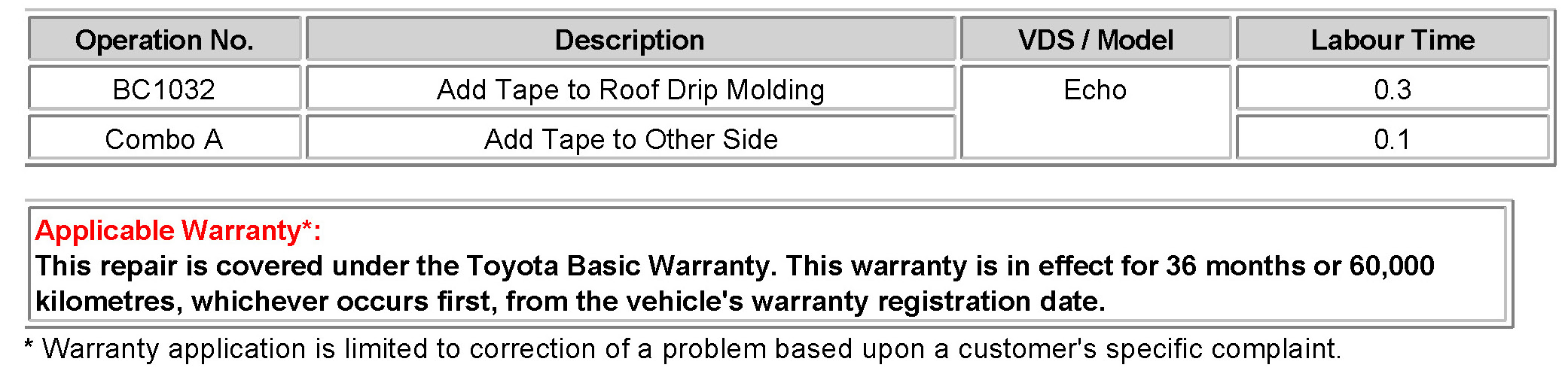

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
