Canada - Suspension - Rear Coil Spring Installation

Bulletin
TSB2764

Issue Date
May 11, 2007

Market
Canada

Title
REAR COIL SPRING INSTALLATION

Component
SUSPENSION

Models
'00 - '06 ECHO & '06 and up YARIS

INTRODUCTION:

In the event that either or both of the rear coil springs are removed for any reason, use the following procedure to ensure the proper installation of the rear coil springs.

APPLICABLE VEHICLES:
- 2000 - 2006 model year Echo vehicles.
- 2006 and up model year Yaris vehicles.






WARRANTY INFORMATION:

NOTE:
The installation procedure is the same for both the LH and RH side.

INSTALLATION PROCEDURE:







1. Install the lower coil spring insulator on to the axle beam.

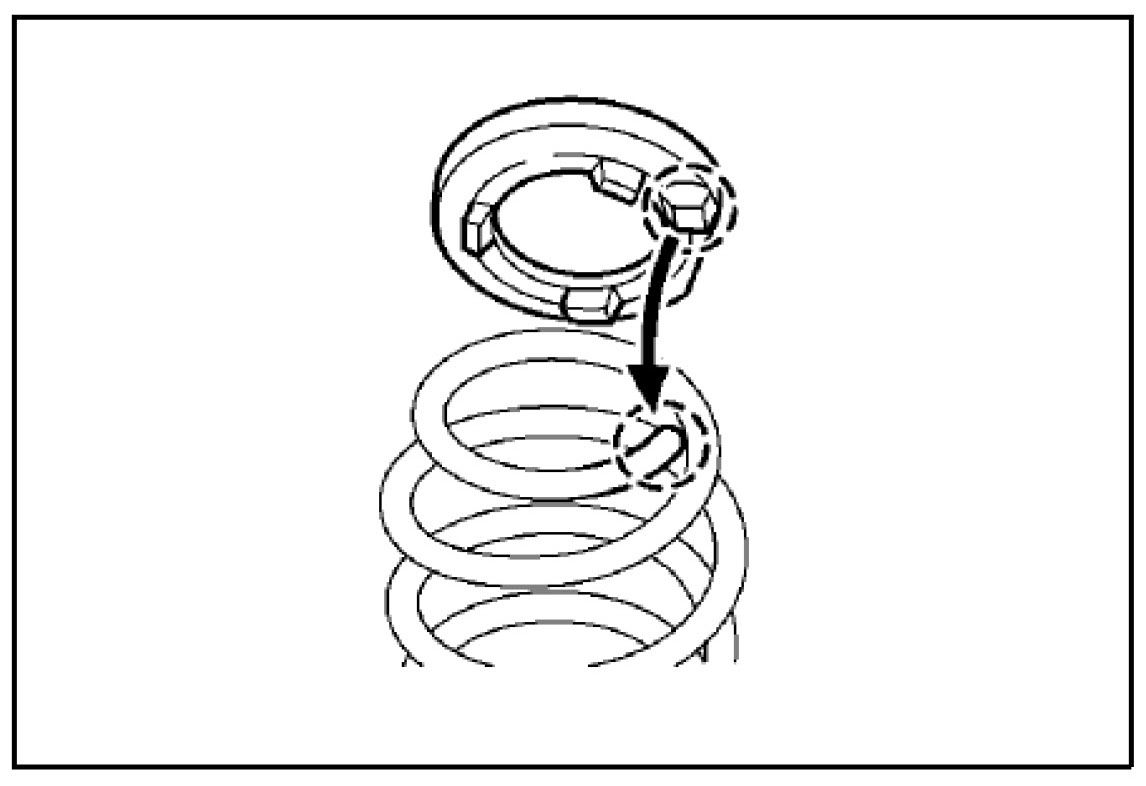

2. Install the upper coil spring insulator so that its gap fits onto the end of the coil spring.







3. Install the coil spring onto the lower coil spring insulator already installed on the axle beam.

NOTE:

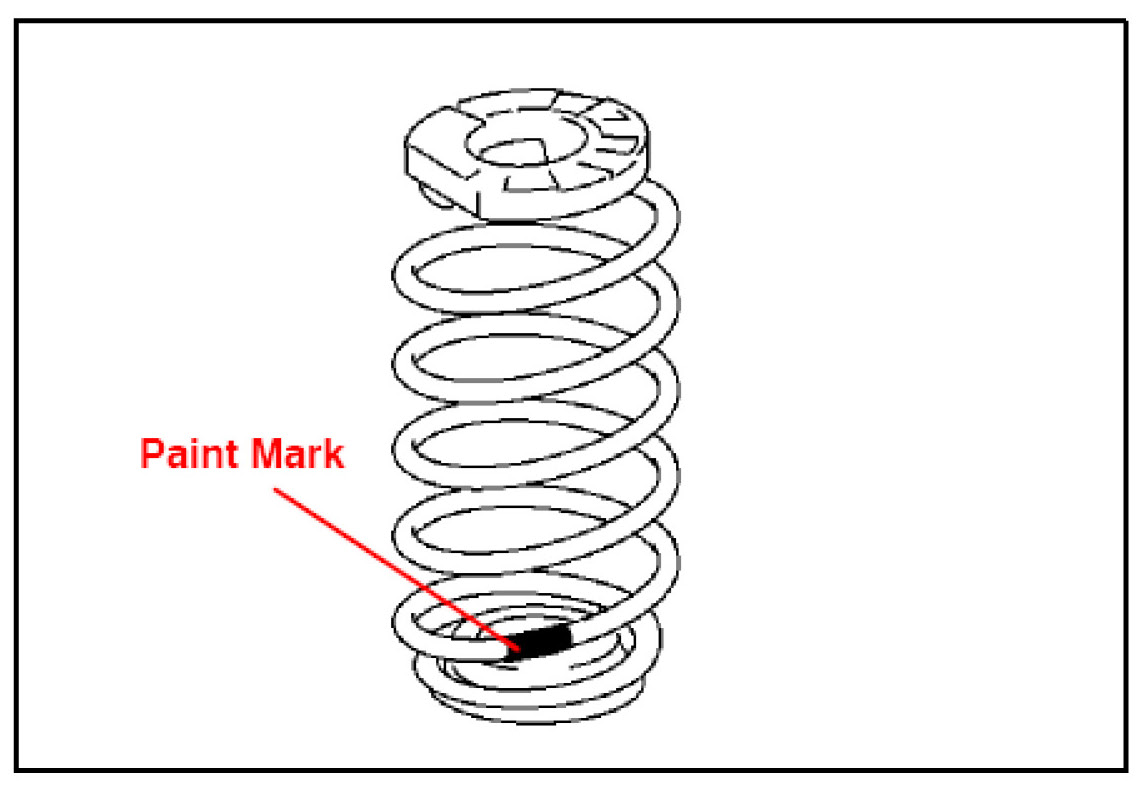

The paint mark of the coil spring should be toward the underside and rear side of the vehicle.

4. Confirm repair is satisfactory.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
