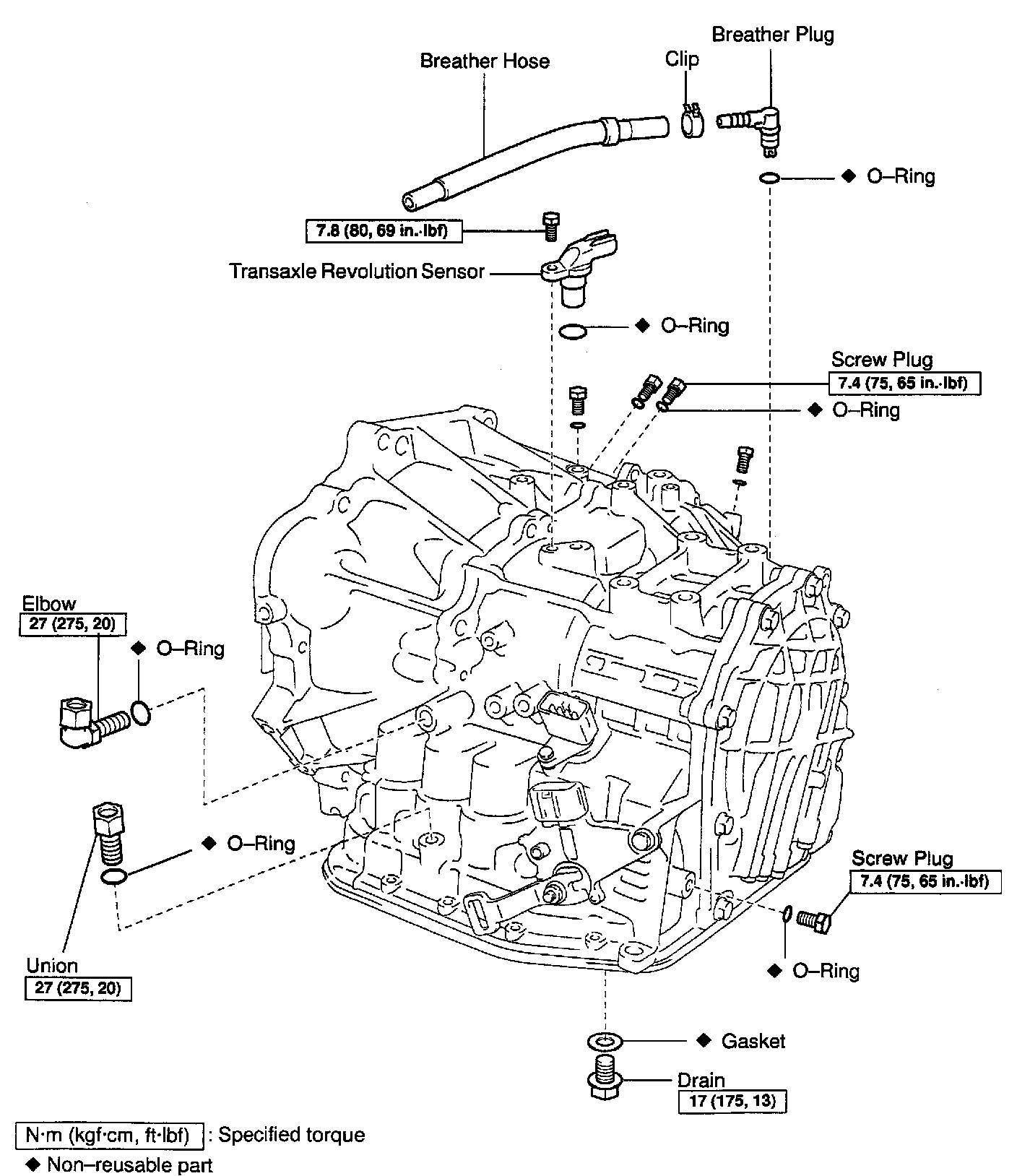

Automatic Transmission/Transaxle: Diagrams

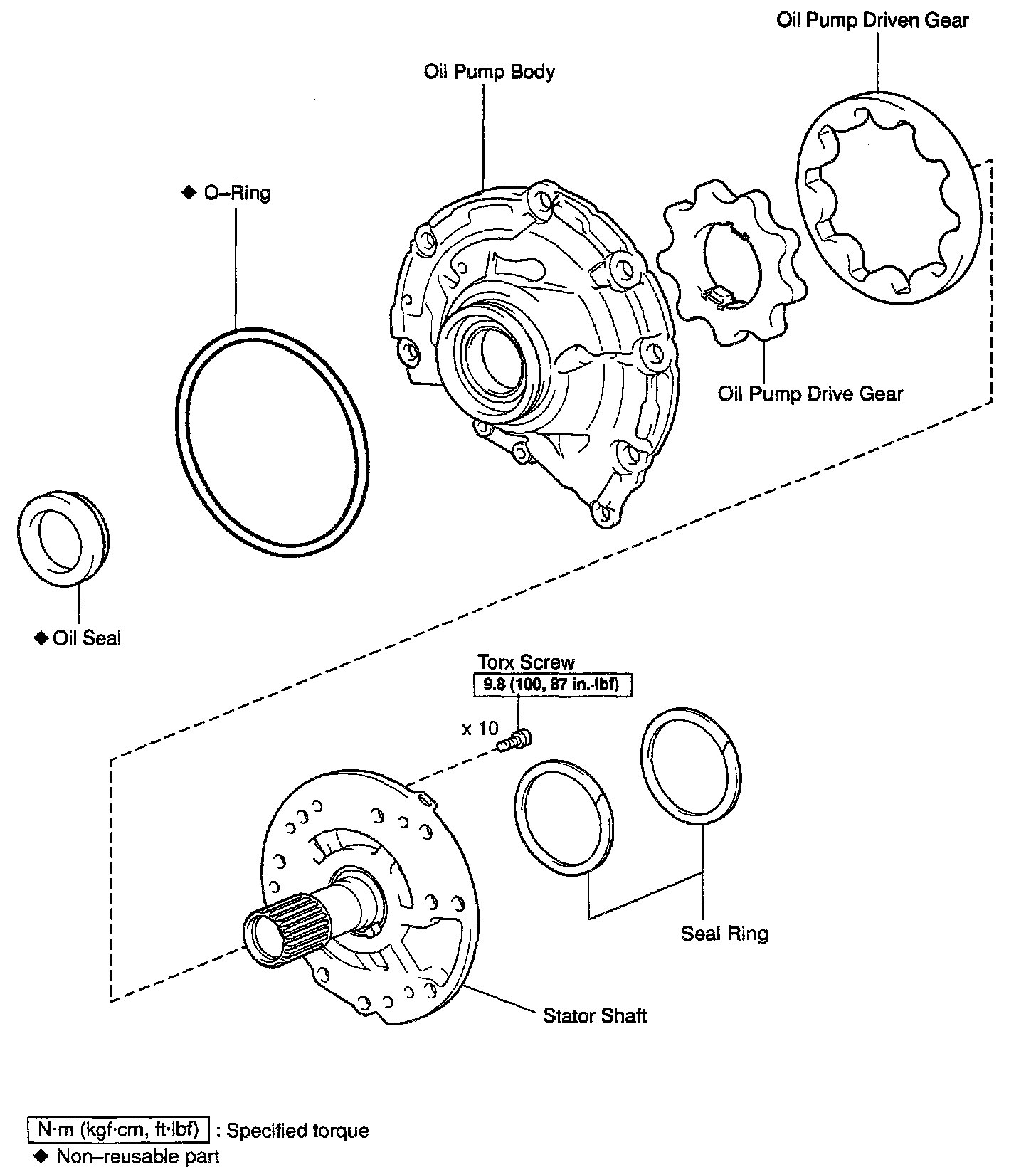

Oil Pump:

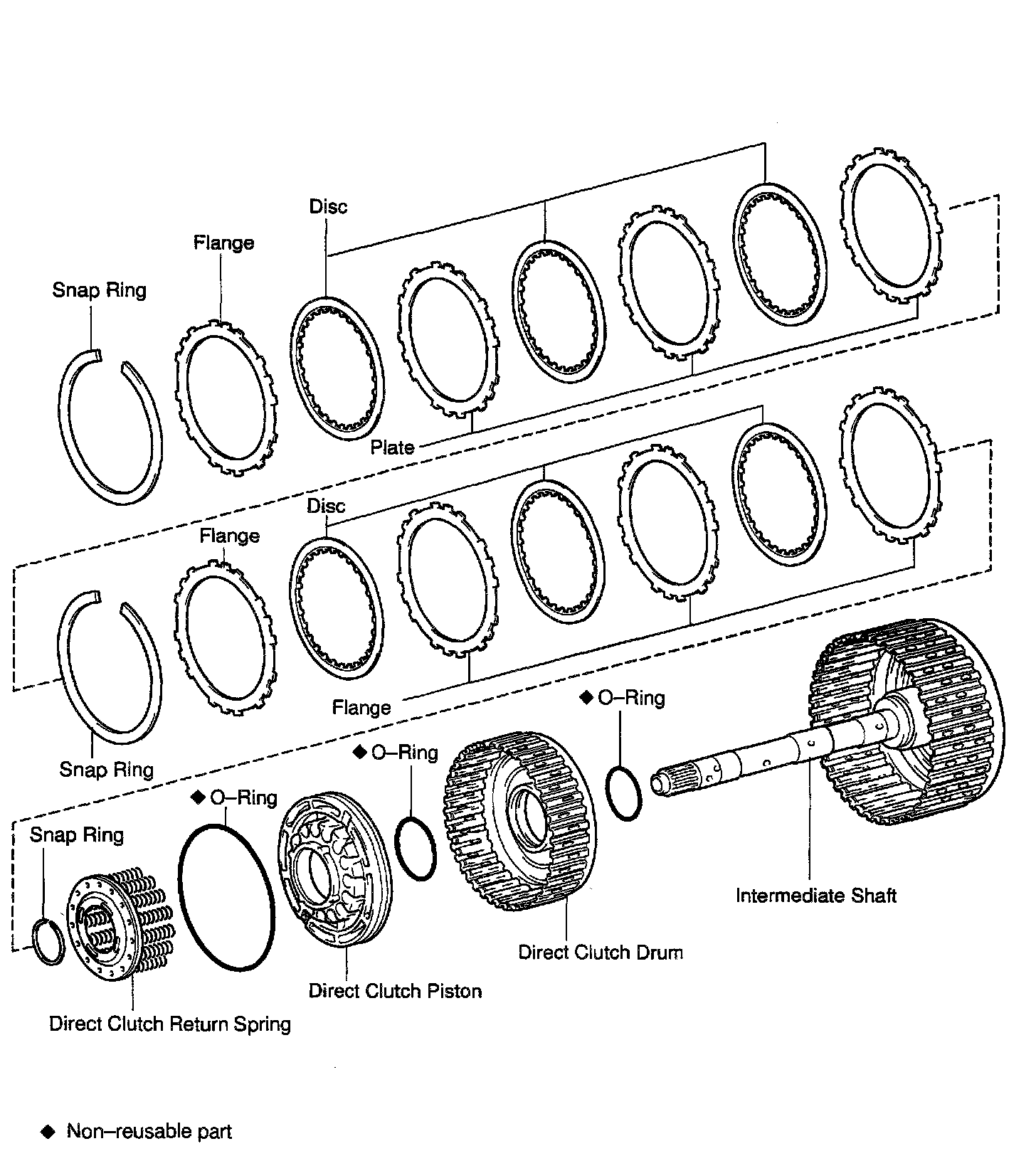

Direct and Reverse Clutch:

Forward Clutch:

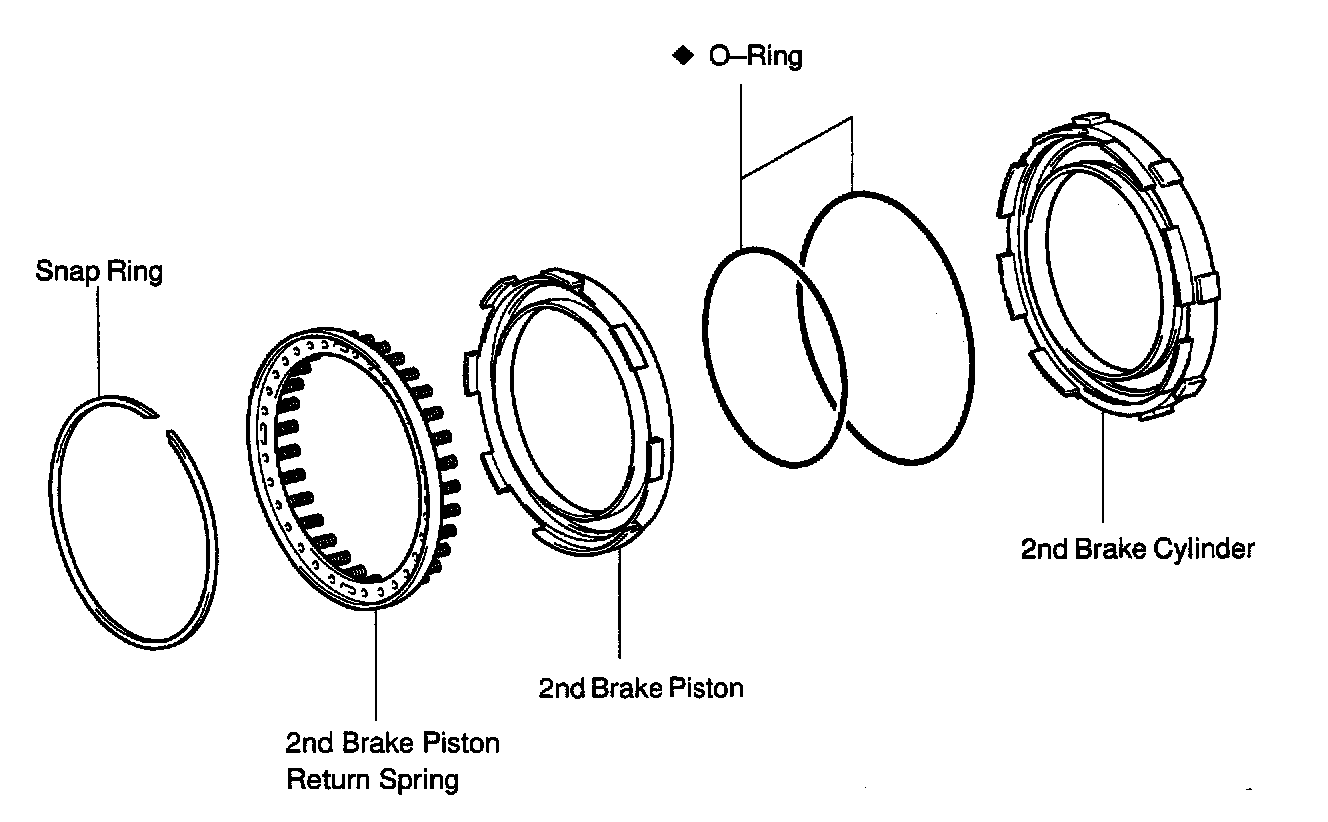

Second Brake:

Counter Driven Gear:

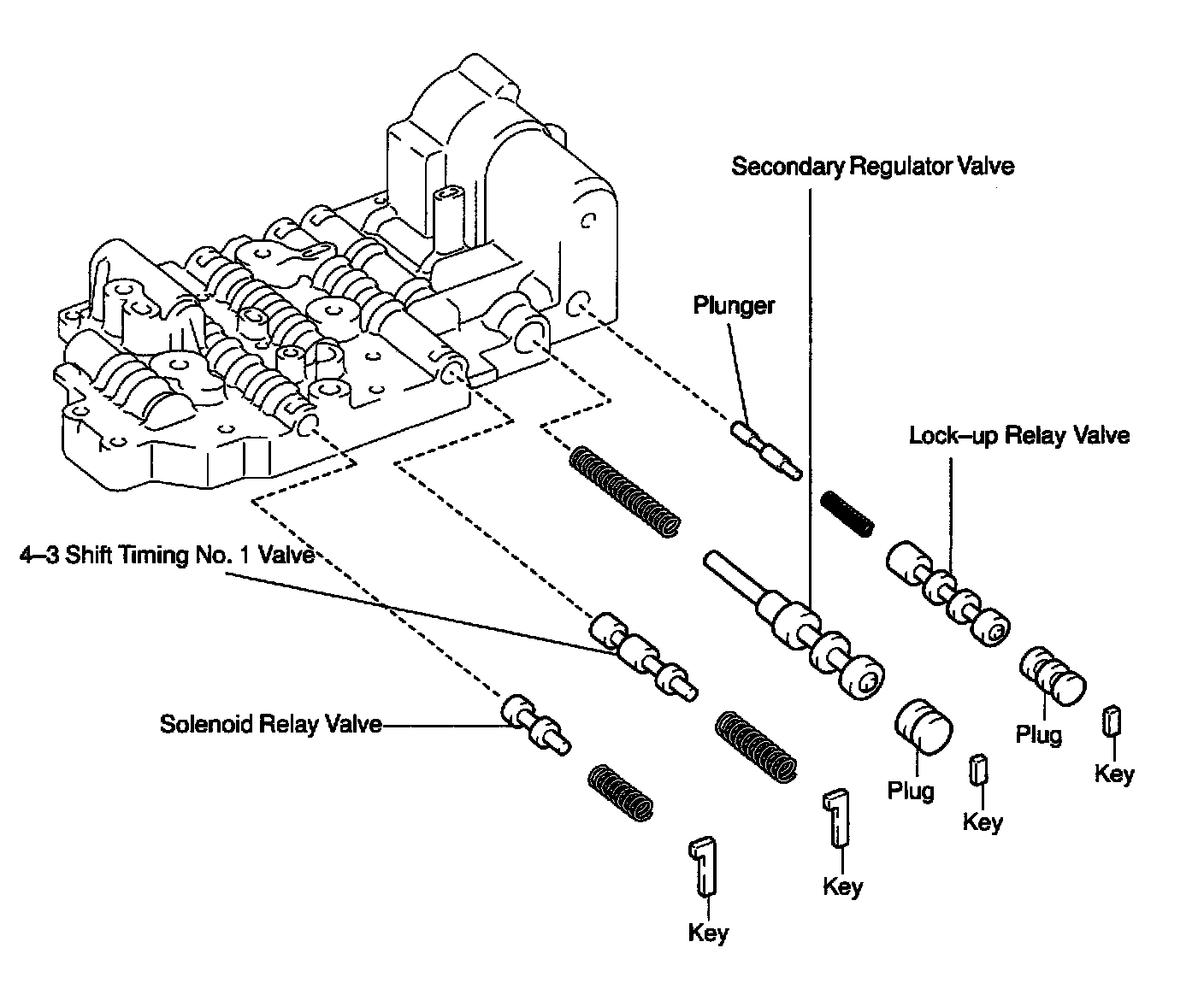

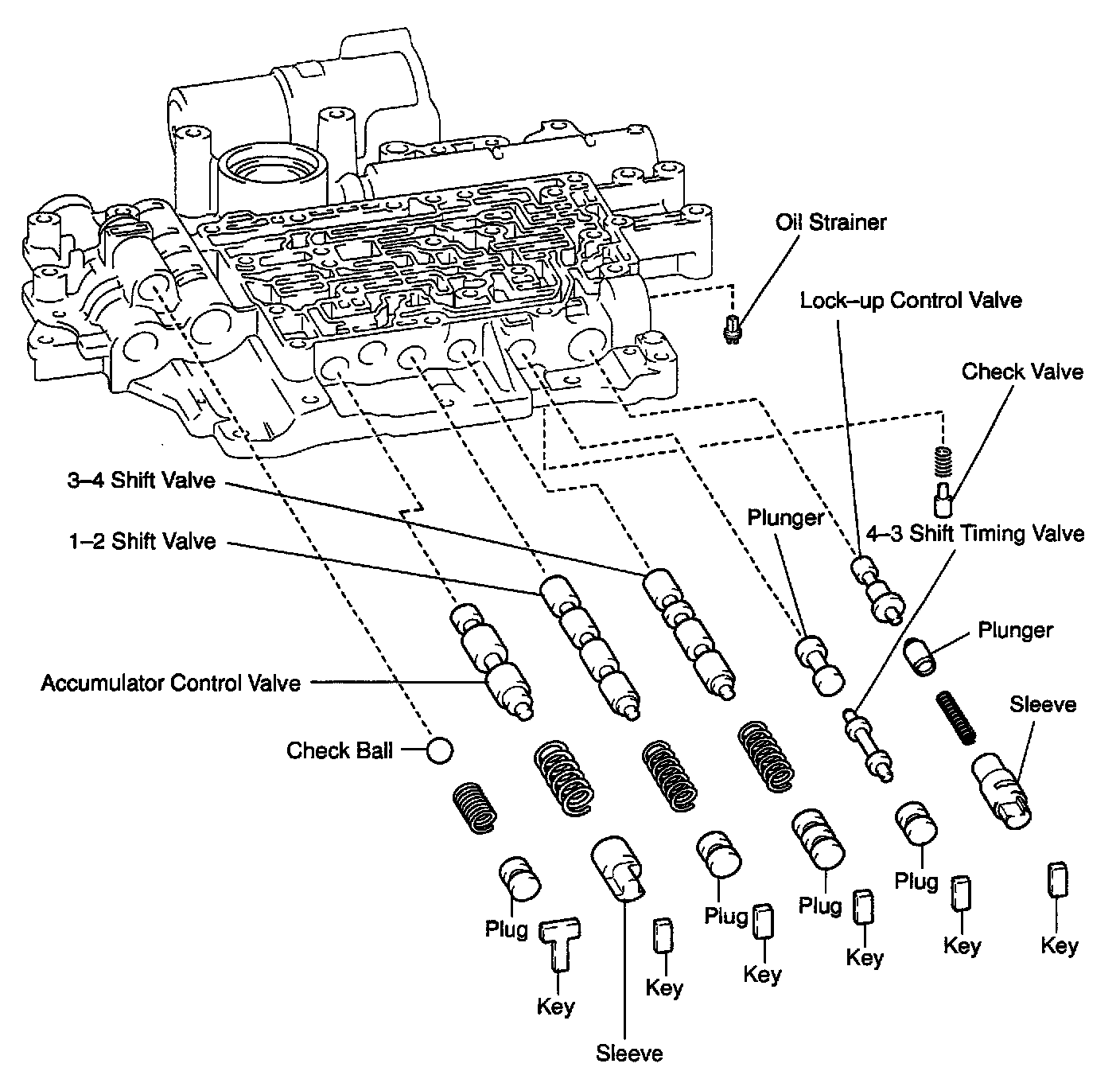

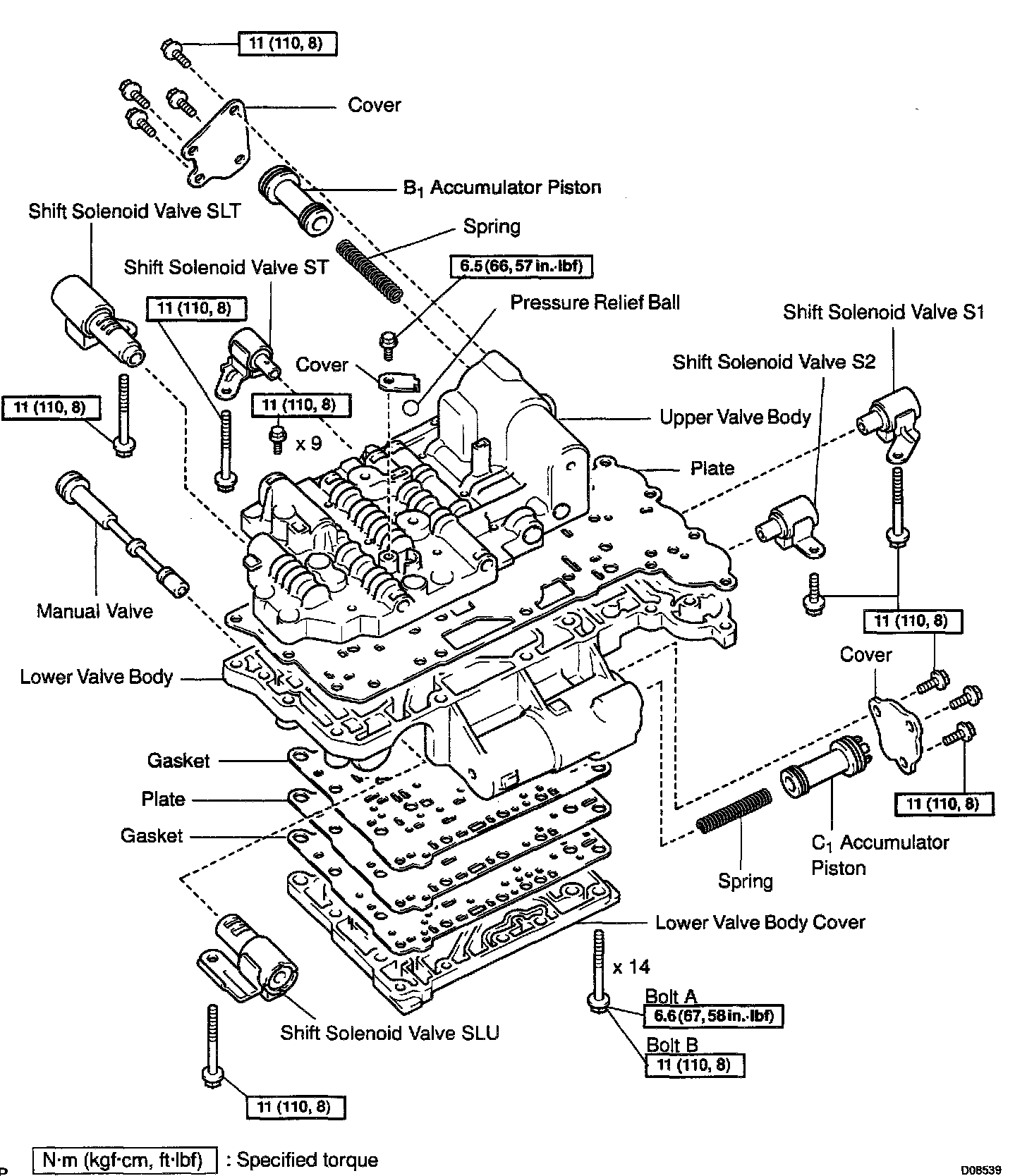

Valve Body:

Upper Valve Body #1 Of 2:

Upper Valve Body #2 Of 2:

Lower Valve Body:

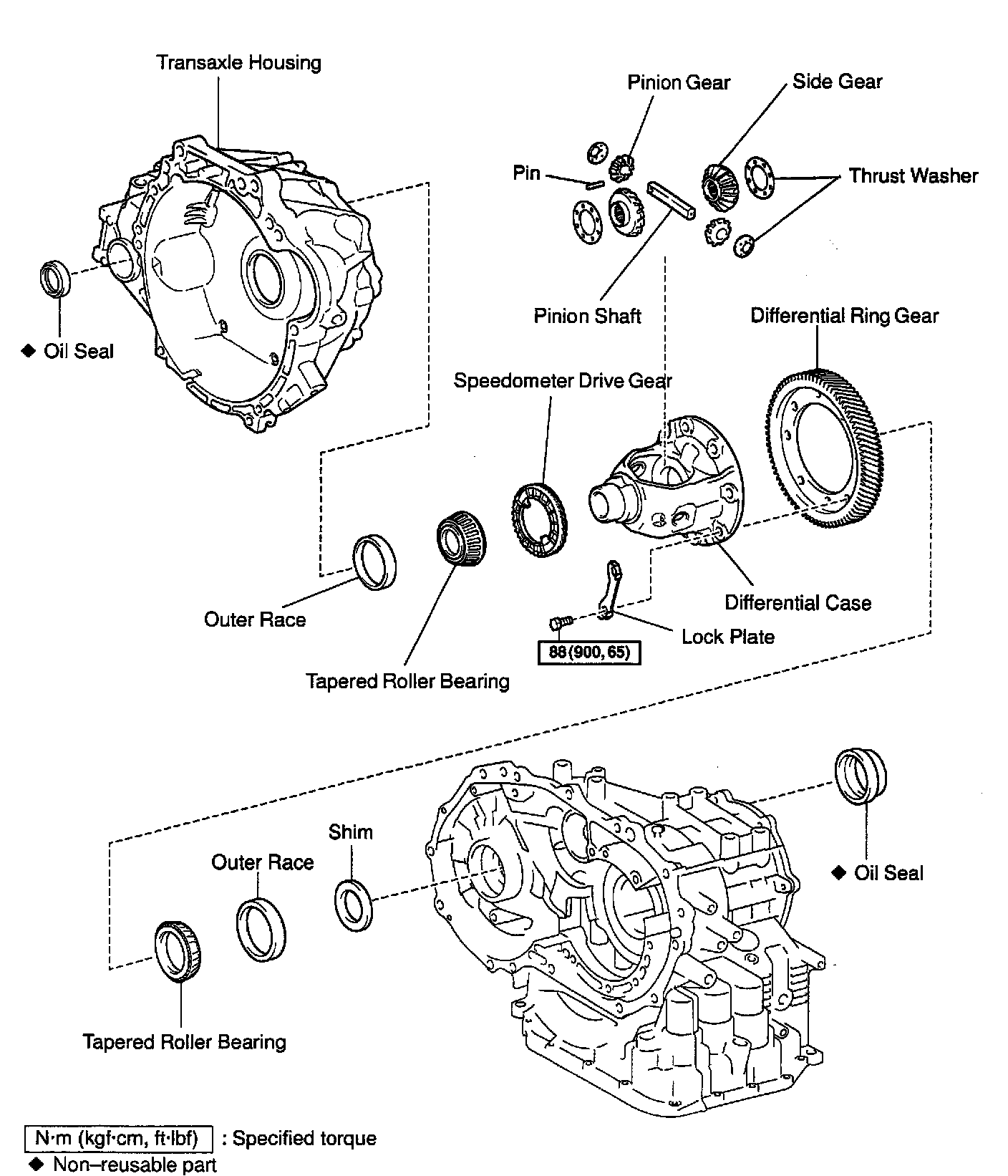

Differential Case:
