Automatic Transmission/Transaxle: Fundamentals and Basics

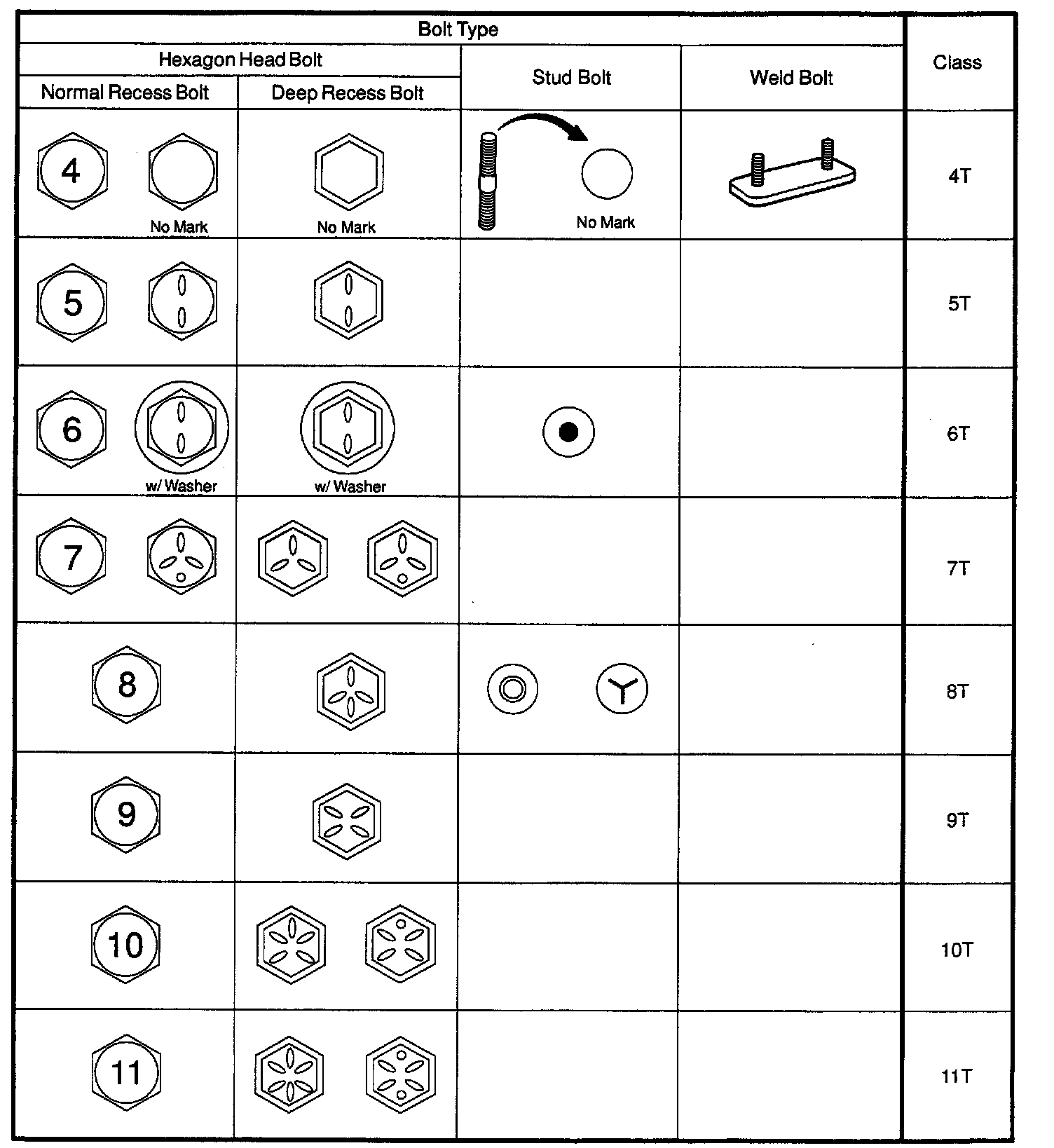

HOW TO DETERMINE BOLT STRENGTH:

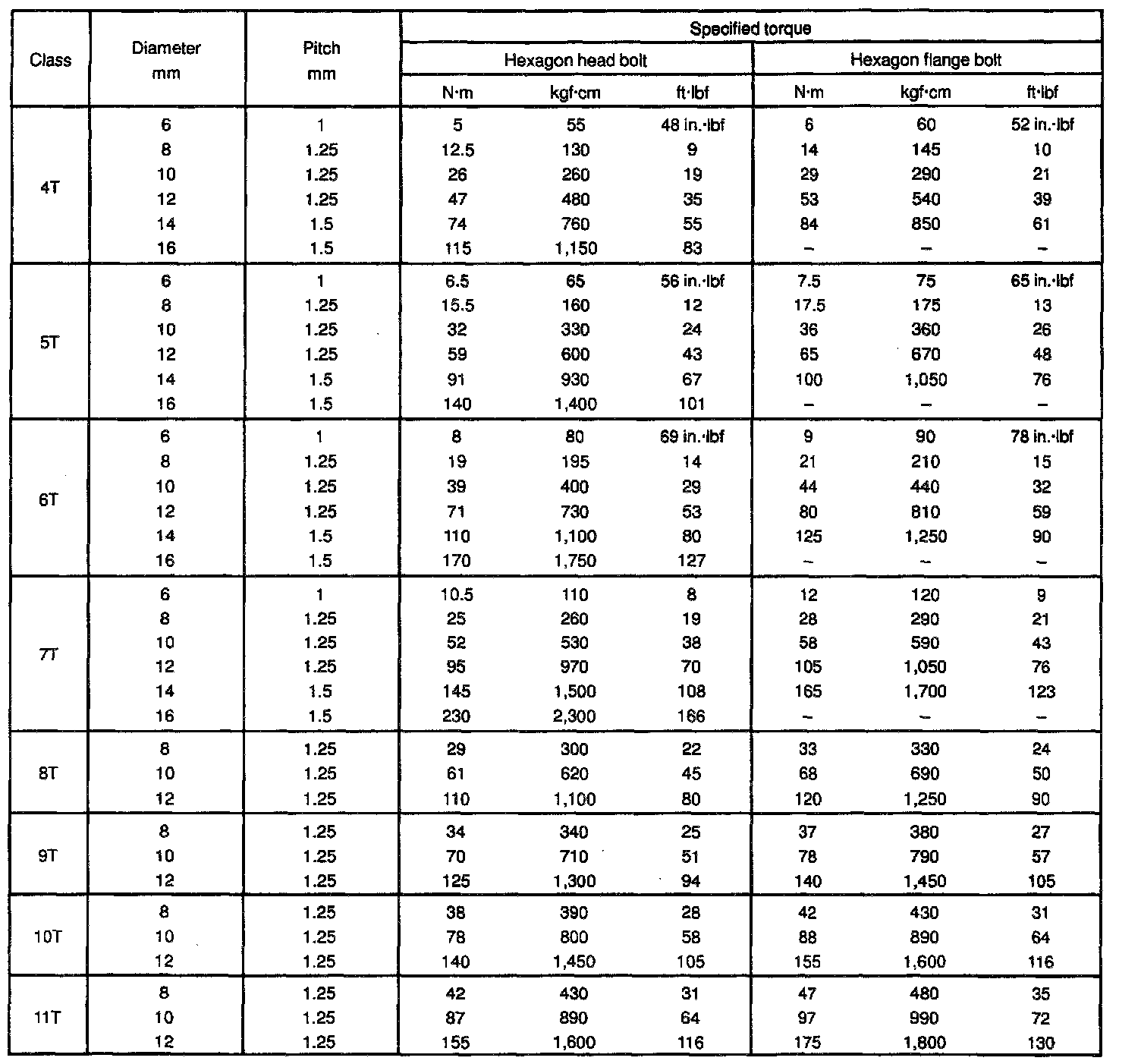

SPECIFIED TORQUE FOR STANDARD BOLTS:

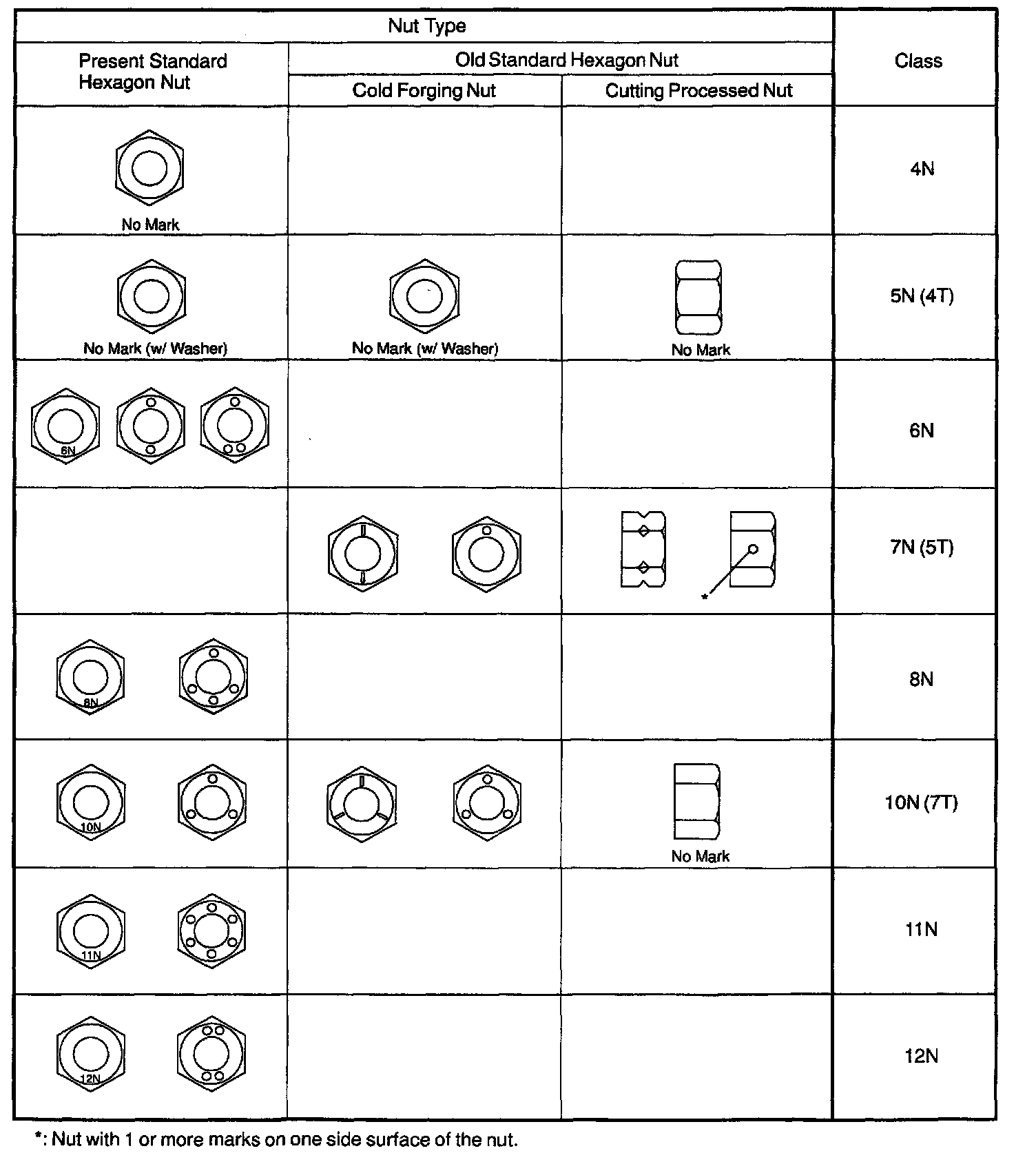

HOW TO DETERMINE NUT STRENGTH:

HINT: Use the nut with the same number of the nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.

Example: Bolt = 4T
Nut = 4N or more
