Windshield Washer Spray Nozzle: Adjustments
ADJUSTMENTADJUST FRONT WASHER NOZZLE

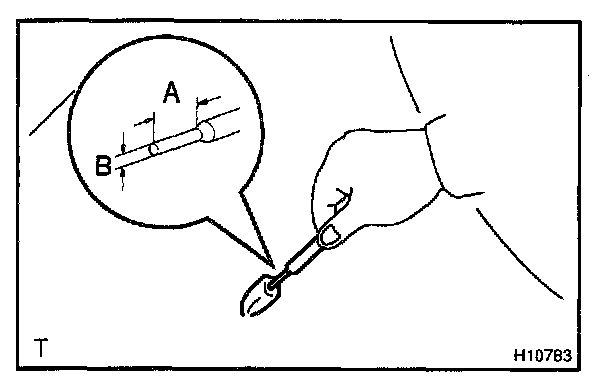

Using a tool like the one shown in the illustration, change the direction of the nozzle hole to adjust the point where washer fluid hits the windshield.
A: 2.0 - 2.5 mm (0.079 - 0.098 in.)
B: 0.7 - 0.75 mm (0.028 - 0.0295 in.)
