C0278

C0278 - ABS Solenoid Relay Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This relay supplies power to each ABS SOL. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

Wiring Diagram:

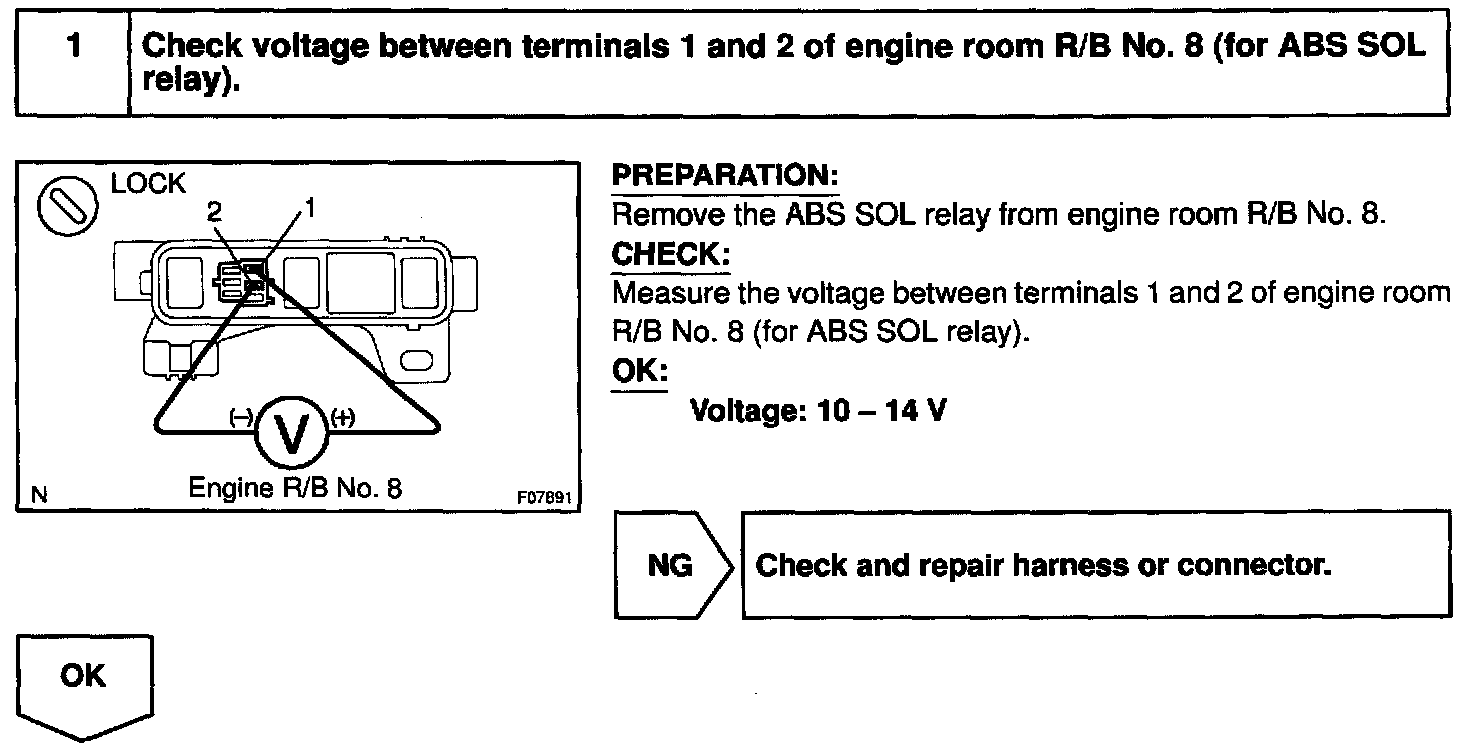

Step 1:

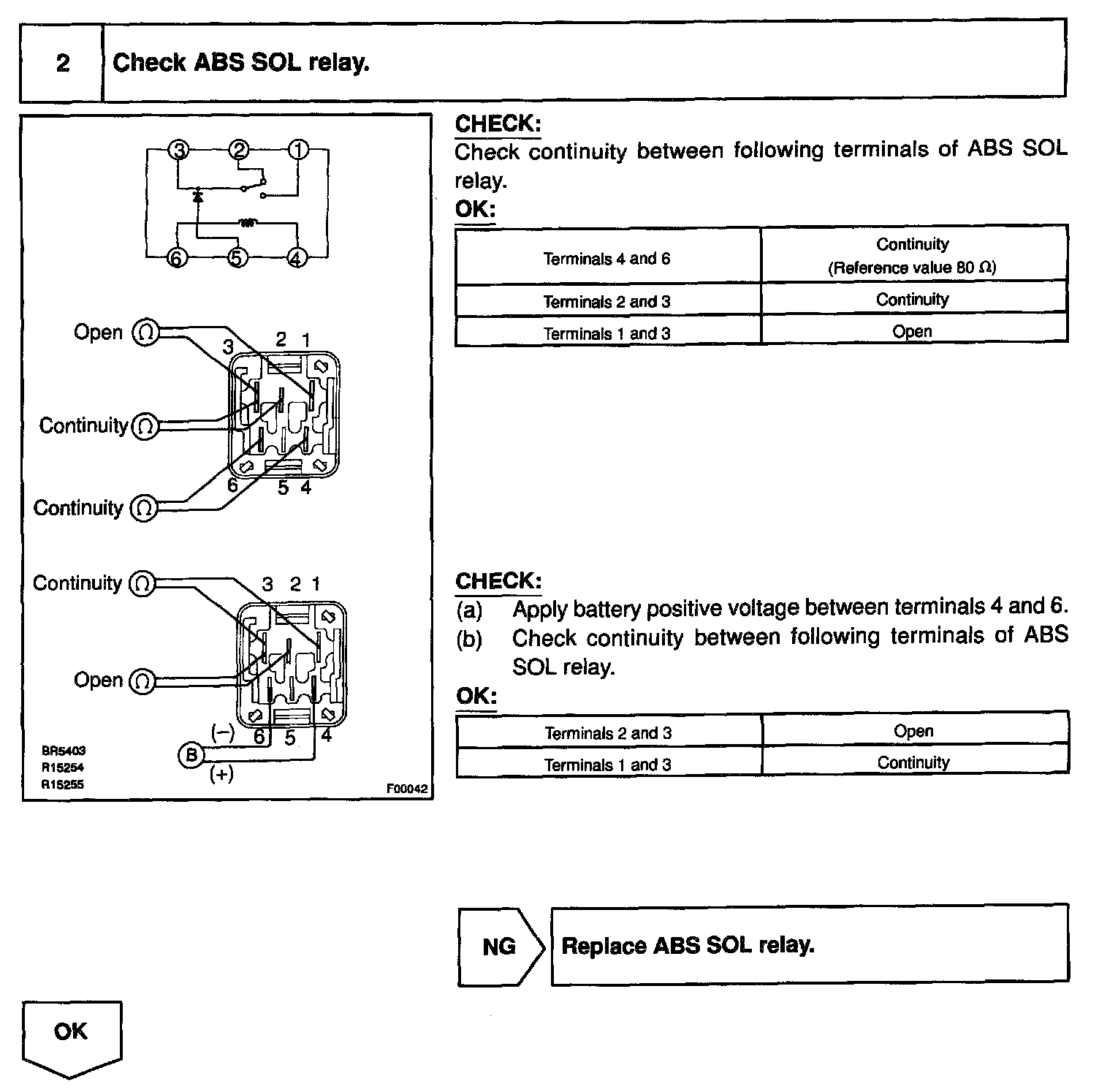

Step 2:

Step 3 - 4:

INSPECTION PROCEDURE
