C1202

C1202 - Brake Fluid Level Warning Switch Circuit

CIRCUIT DESCRIPTION

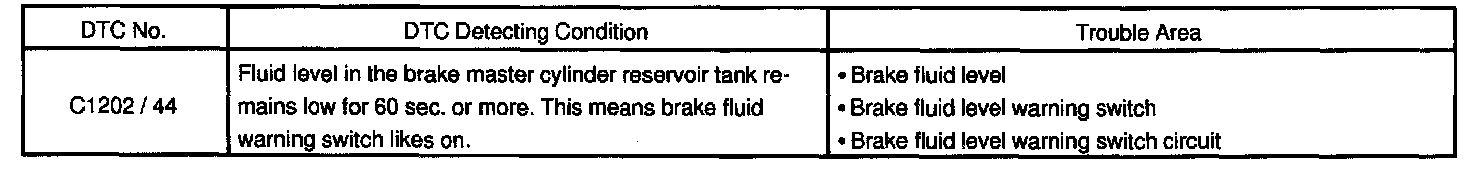

DTC Detecting Condition:

The brake fluid level warning switch sends appropriate signals to the ECU when the brake fluid level is lowered.

HINT: Depressing the parking brake pedal turns on the brake warning light, but this DTC No. C1202/44 is not output.

Wiring Diagram:

Step 1 - 3:

INSPECTION PROCEDURE
