C1350 - Brake Actuator Pump Motor Failure

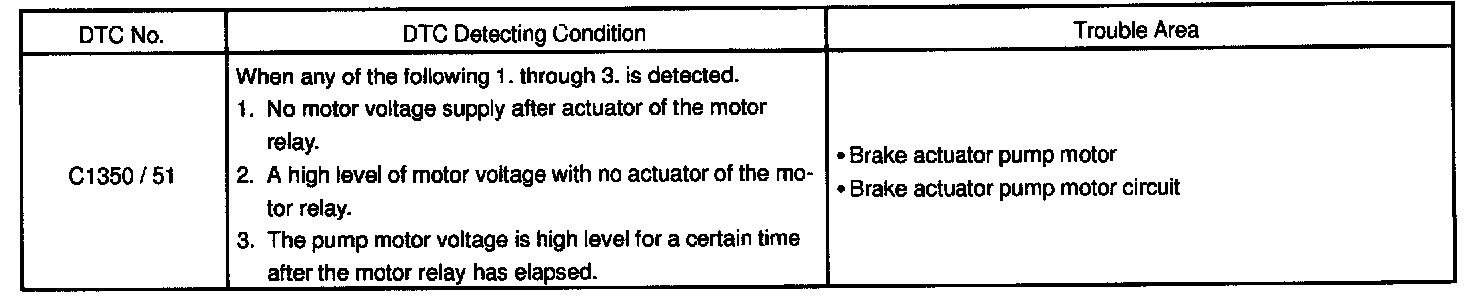

DTC Detecting Condition:
CIRCUIT DESCRIPTION

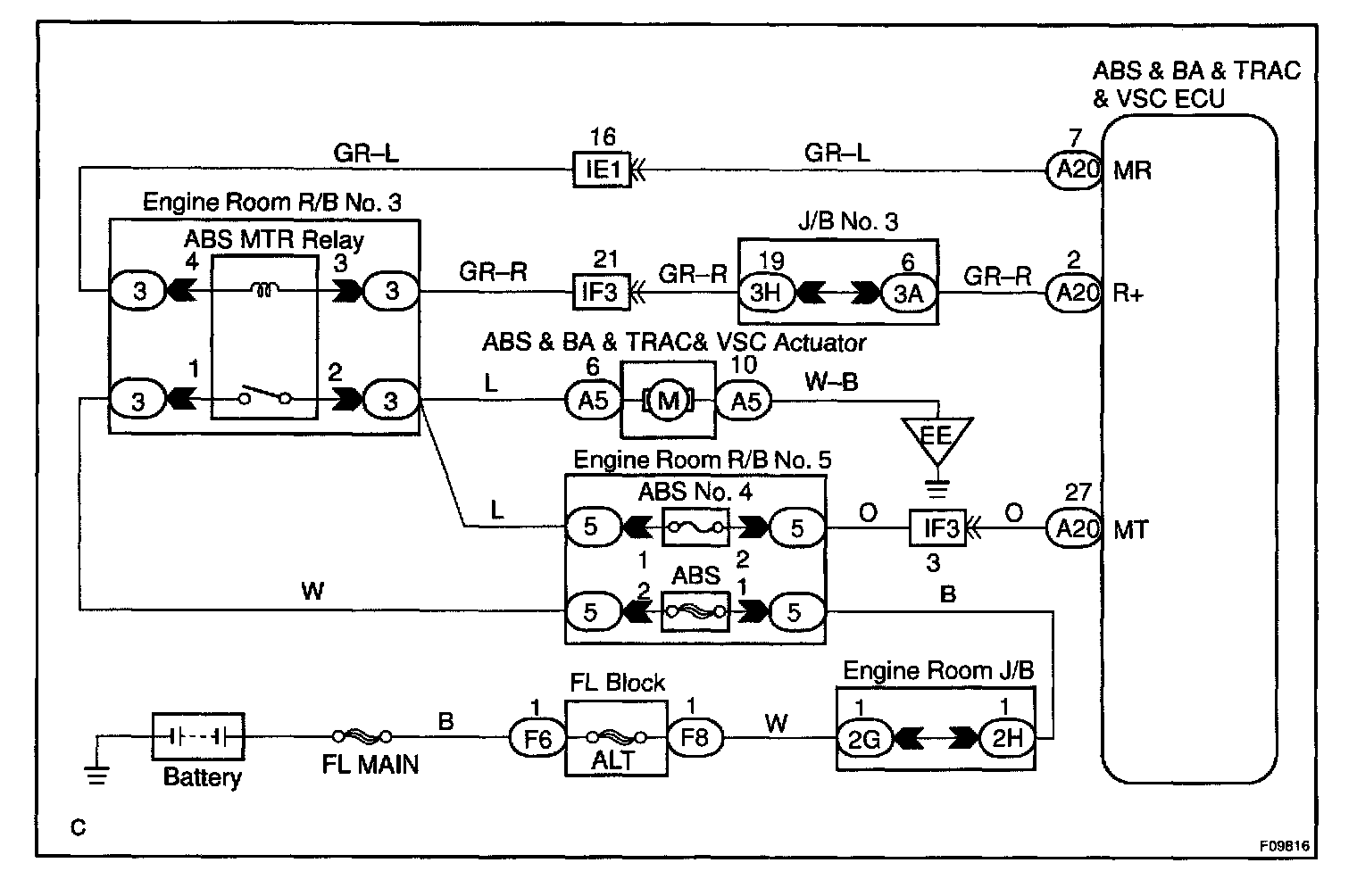

Wiring Diagram:

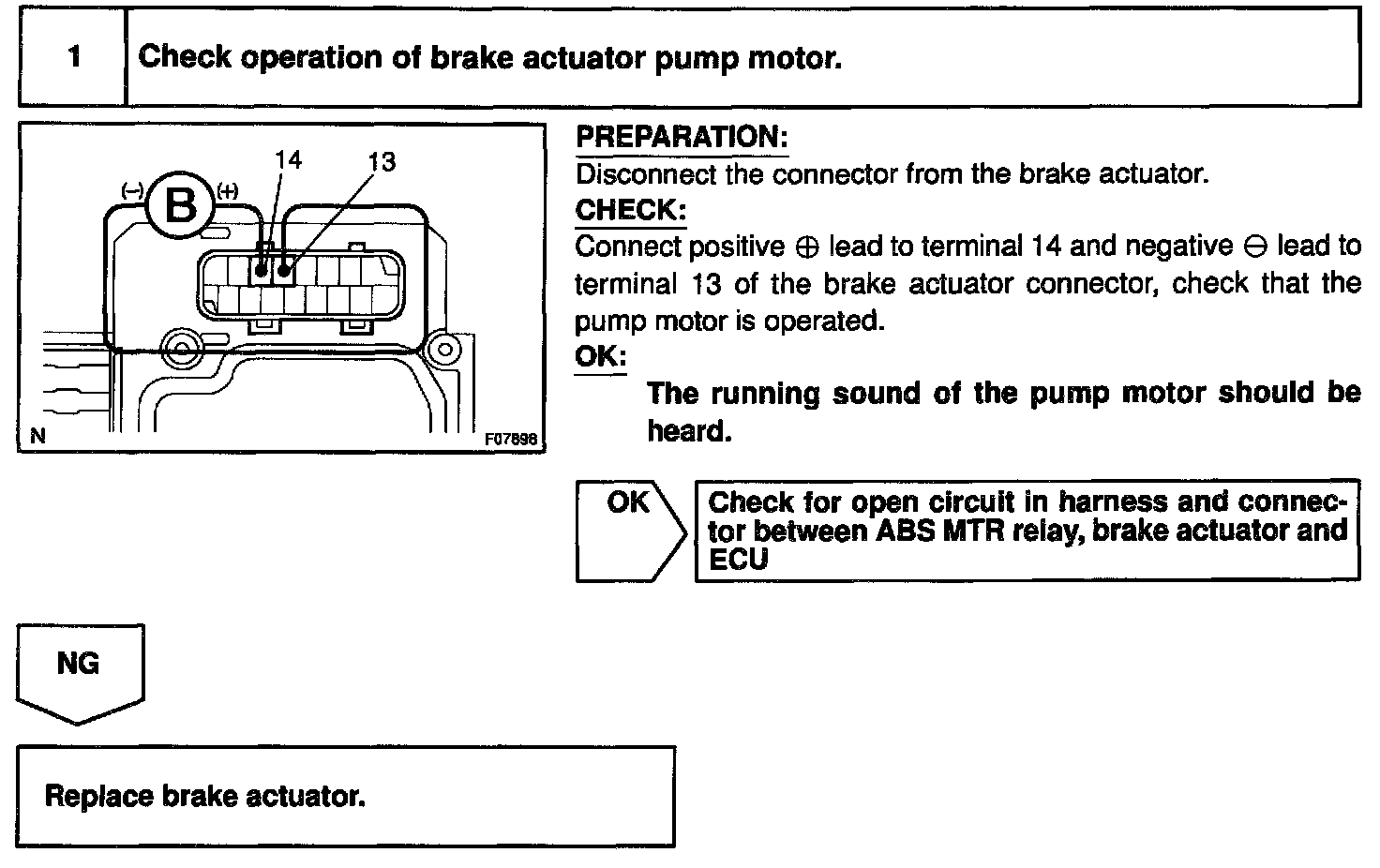

Step 1:
INSPECTION PROCEDURE
