ABS W/EBD System

24 - ABS Solenoid Circuit

CIRCUIT DESCRIPTION

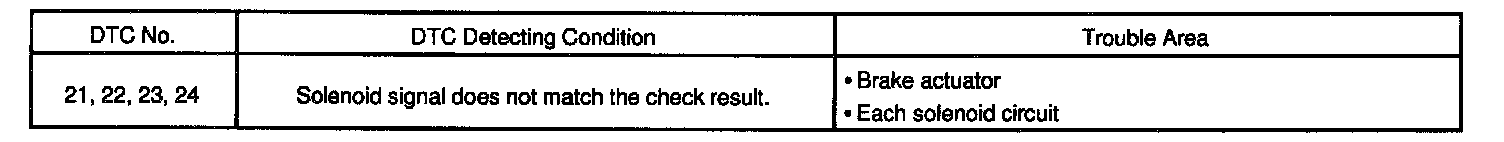

DTC Detecting Condition:

This solenoid goes on when signals are received from the ECU, and controls the pressure acting on the wheel cylinders thus controlling the braking force.

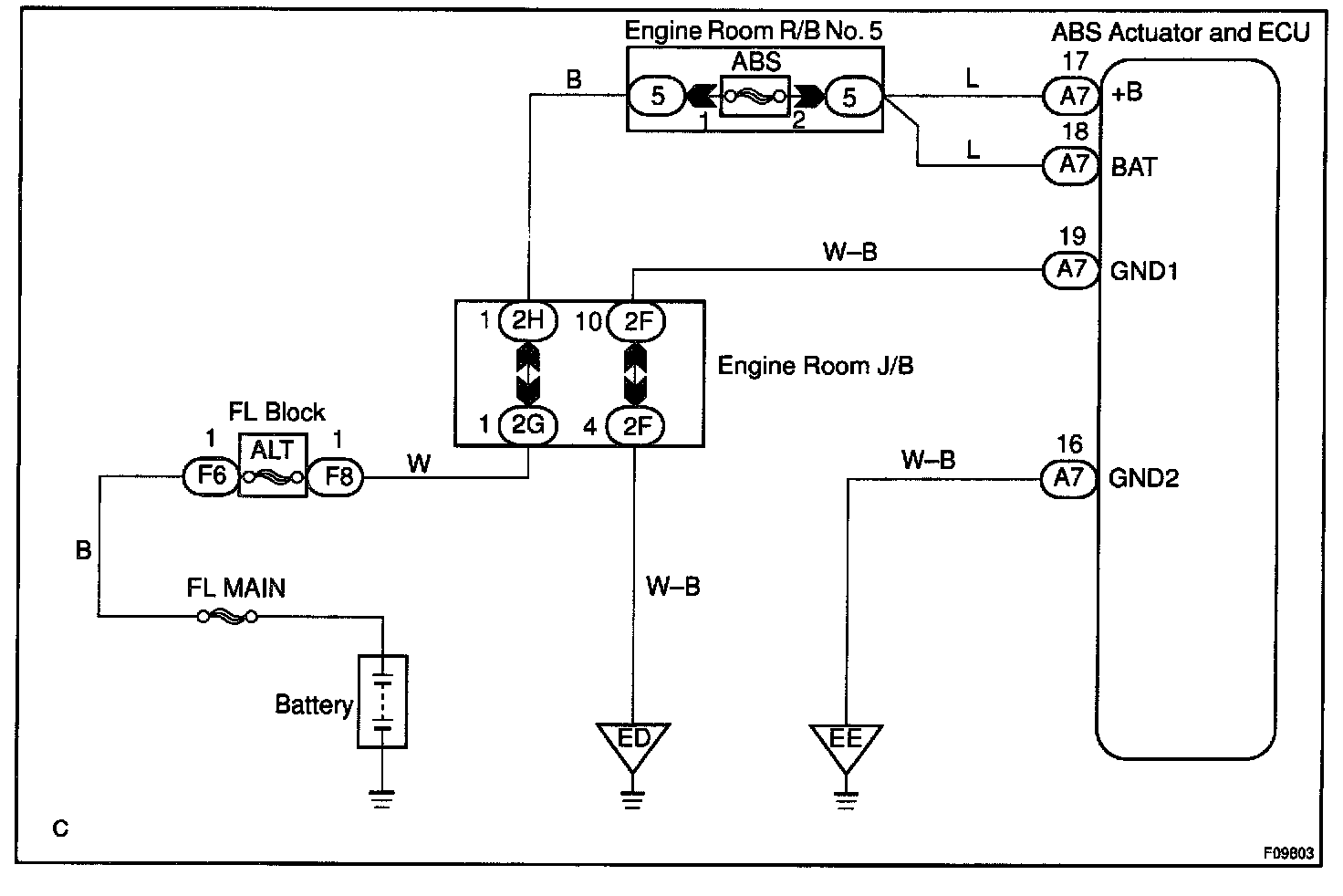

Wiring Diagram:

Step 1:

INSPECTION PROCEDURE
