Avalon XL V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

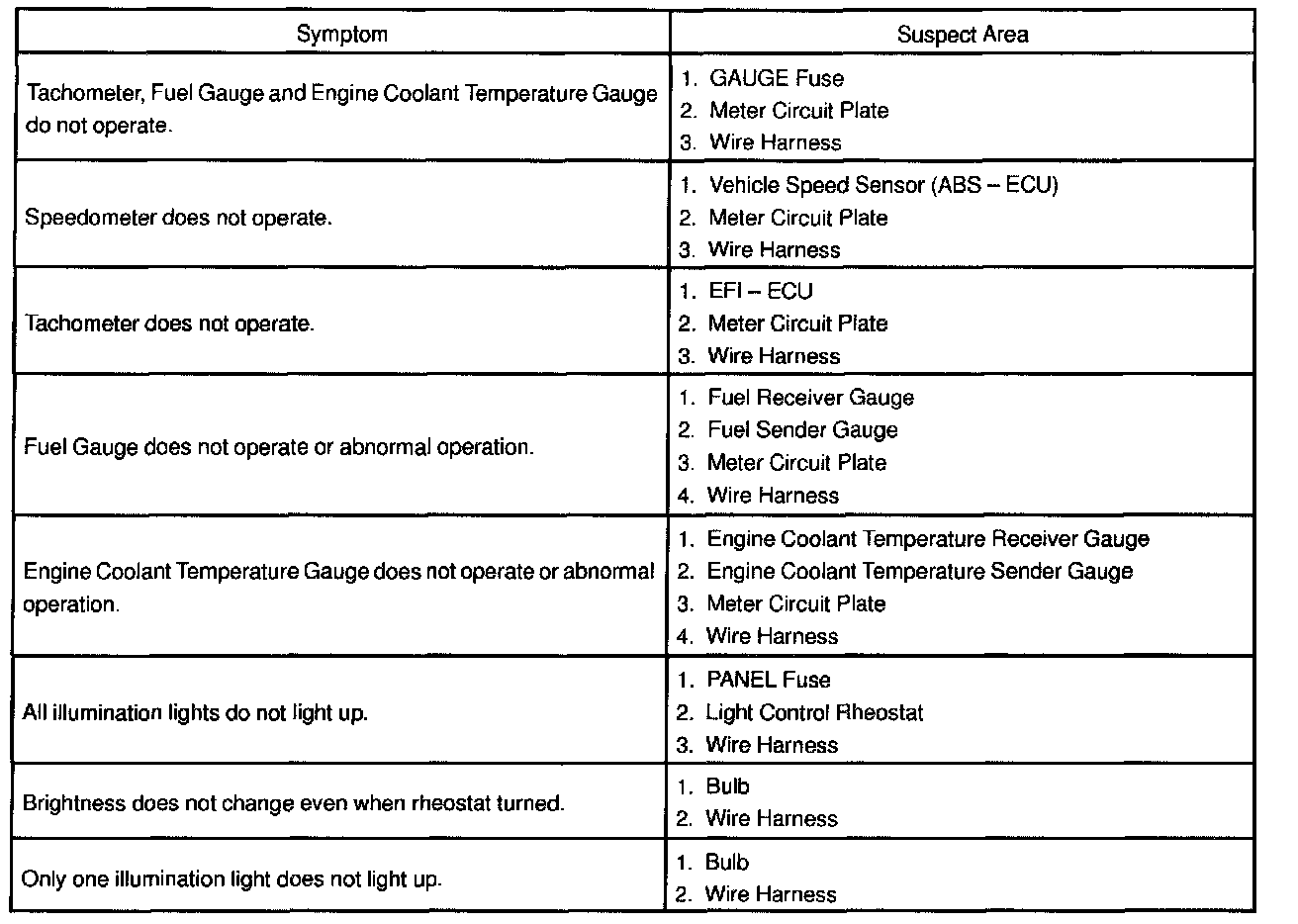

Combination Meter - Meter, Gauges And Illumination:
Combination Meter - Warning Lights:
Combination Meter - Indicator Lights:
