Windshield Washer Spray Nozzle: Testing and Inspection

INSPECTION

INSPECT FRONT WASHER NOZZLE

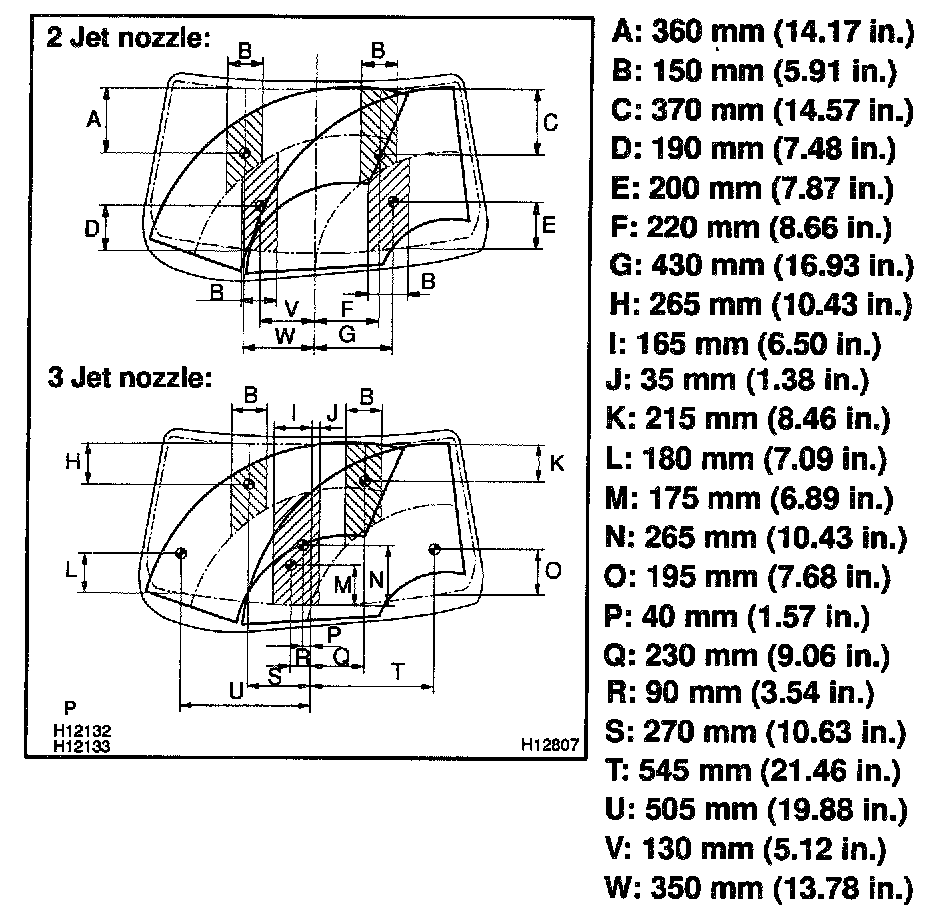

While operating the washer, check that both the point where the washer fluid from the upper nozzles hits the windshield, and the upsurge area are within the range indicated by the hatched line.
