Component Tests and General Diagnostics
NOTE: This article contains corrected data processed from TSB# PG001-05.INSPECTION
1. INSPECT WIRELESS DOOR LOCK DIAGNOSIS MODE

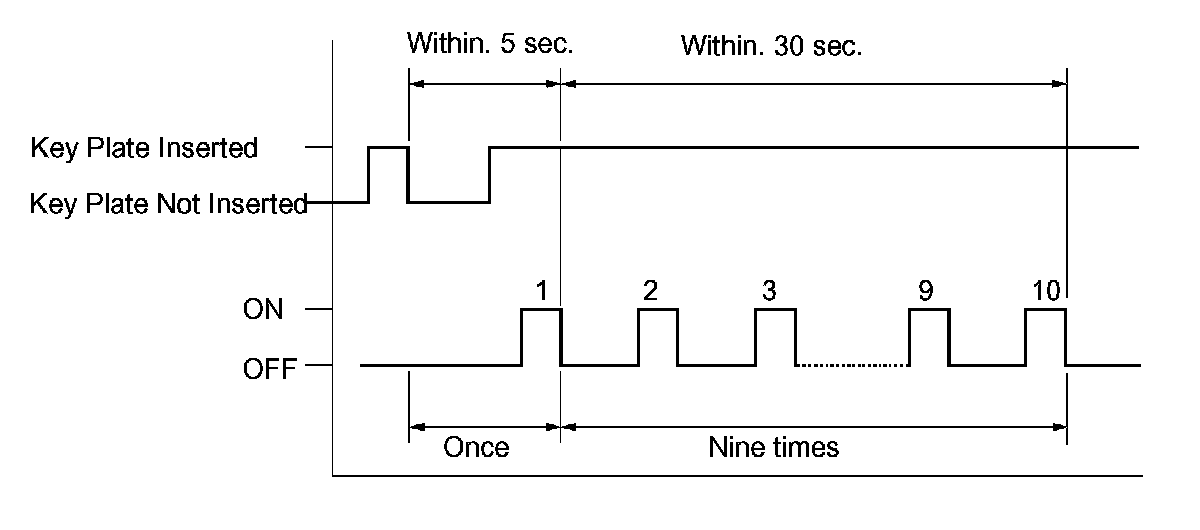

a. Start up diagnosis mode.
HINT: Follow the method below.
(1) Insert the ignition key into the ignition key cylinder.
(2) Remove the ignition key from the ignition key cylinder.
(3) Insert the key into the ignition switch.
(4) Turn the ignition switch ON once within 5 sec.
(5) Repeat turning the ignition switch OFF -> ON 9 times within 30 sec.
(6) Enter the diagnosis mode, and make sure that the buzzer sounds.
b. Finishing the Diagnosis Mode.
During the Diagnosis mode, turn the ignition switch OFF --> ON to go back to the normal mode.
At this time, make sure that the buzzer sounds.
c. Diagnosis Mode Check
HINT: Check how the buzzer sounds when pressing each transmitter switch.
(1) LOCK switch
(2) UNLOCK switch
(3) Luggage door switch
(4) Disagreement of recognition code or rolling code
HINT: If (4) is detected in the Diagnosis Check, conduct the recognition code registration.
(5) No response from the buzzer
HINT: Conduct the following checks.
- Check the wireless door lock transmitter.
- Check the wireless door lock receiver.
2. INSPECT WIRELESS DOOR LOCK TRANSMITTER OPERATION
HINT: Refer to "Wireless door lock control receiver and transmitter replacement".
a. Using a screwdriver, pry out the cover.
b. Remove the battery (lithium battery).
c. Install a new or normal battery (lithium battery).
HINT: When a new or normal battery cannot be obtained, connect 2 new 1.5 V batteries in series, connect the battery positive (+) to the battery receptacle side terminal and battery negative (-) to the bottom terminal, then apply 3 V to the transmitter.
d. In the location where is approx. 1 m (3.28 ft) away from driver's outside handle in the right direction, face the transmitter to the vehicle, and check the transmitter operation when pressing a transmission switch on the transmitter.
Standard: Remote control of vehicle door lock can be operated.
HINT:
- The operation distance changes according to how customers hold the transmitter or where it is used.
- Because of using the very weak radio wave, if there is a strong wave or noise on the frequency being used, the operation distance may become shorter.
e. Install the battery (lithium battery).
f. Install the cover securely.
3. CHECK BATTERY CAPACITY
HINT:
- Make sure to use the TOYOTA electrical tester.
- With the battery unloaded at the test, judge cannot be made whether the battery is available or not.
- When the transmitter is faulty, the energy amount left in the battery might not be checked correctly.
- On the lithium battery used for the transmitter, the voltage more than 2.5 V with the battery unloaded is shown on the tester until the energy is completely consumed. Accordingly when inspecting the energy amount left in the battery, it is necessary to measure the voltage when the battery is loaded (1.2 kohm).
a. Using a screwdriver, pry out the cover.
b. Remove the battery (lithium battery).
c. Connect the lead to the negative (-) terminal of the transmitter and install the battery.
d. Connect the tester positive (+) probe to the battery (lithium battery) positive (+) terminal, and tester negative (-) probe to the lead respectively.
e. Press one of the transmission switches on the transmitter for approx. 1 second.
f. Press the transmission switch on the transmitter again to measure the voltage.
Standard: 2.1 V or more
HINT:
- When the temperature of the battery is low, the judgement cannot be made correctly.
When the outcome of the test is less than 2.1 V, conduct the test again after leaving the battery in a place at 18°C (64°F) for more than 30 minutes.
- By auto power off function, the voltage becomes no load voltage (more than 2.5 V) condition 0.8 seconds after the switch was pressed.
Make sure to read the voltage before it.
- High voltage might be shown once or twice after leaving the battery, judge should be made with the voltage shown at the 3rd time or later.
g. Disconnect the lead.
h. Set the battery (lithium battery) in the transmitter.
i. Install the cover securely.
4. INSPECT WIRELESS DOOR LOCK CONTROL CANCEL SWITCH
If continuity is not as specified, replace the switch.
If continuity is as specified, inspect the switch circuit.
5. INSPECT WIRELESS DOOR LOCK CONTROL CANCEL SWITCH CIRCUIT
6. INSPECT WIRELESS DOOR LOCK BUZZER OPERATION
Connect the positive (+) lead from the ohmmeter to terminal 1 and the negative (-) lead to terminal 2, and check that the buzzer sounds.
If operation is not as specified, replace the buzzer.
7. INSPECT WIRELESS DOOR LOCK BUZZER CIRCUIT
8. Connector disconnected:
INSPECT WIRELESS DOOR LOCK CONTROL RECEIVER CIRCUIT
Disconnect the connector from the receiver and inspect the connector on the wire harness side, as shown.
If the circuit is not as specified, inspect the circuit connected to other parts.
9. Connector connected:
INSPECT WIRELESS DOOR LOCK CONTROL RECEIVER CIRCUIT
Connect the wire harness side connector to the receiver and inspect the wire harness side connector from the backside, as shown.
If circuit is as specified, replace the receiver.
If the circuit is not as specified, inspect the circuit connected to other parts.
