Rear Planetary Gear

DISASSEMBLY

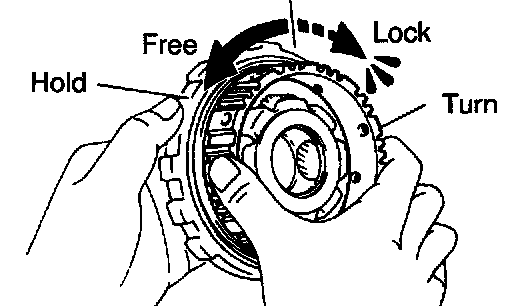

1. CHECK OPERATION OF NO. 2 ONE-WAY CLUTCH
Hold the outer race and turn the rear planetary gear.
The rear planetary gear should turn freely counterclockwise and should lock clockwise.
2. SEPARATE NO. 2 ONE-WAY CLUTCH AND REAR PLANETARY GEAR





3. REMOVE THRUST WASHER
Remove the thrust washer from the rear side of planetary gear.





4. REMOVE NO. 2 ONE-WAY CLUTCH FROM OUTER RACE

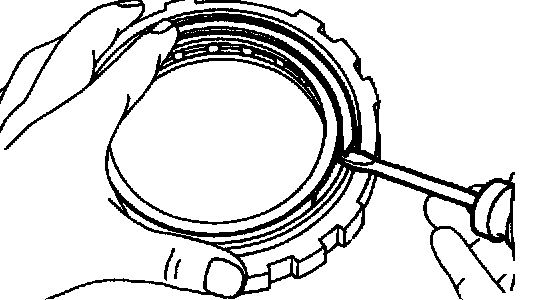

a. Using a screwdriver, remove the 2 snap rings and retainers from both sides.
b. Remove the No. 2 one-way clutch from the outer race.

INSPECTION





1. MEASURE PLANETARY PINION GEAR THRUST CLEARANCE
Using a feeler gauge, measure the planetary pinion gear thrust clearance.
Standard clearance: 0.16 - 0.56 mm (0.0063 - 0.0220 inch)
Maximum clearance: 0.61 mm (0.0240 inch)
If the clearance is greater than the maximum, replace the planetary gear assembly.

REPLACEMENT





1. REMOVE RING GEAR FLANGE
a. Using a screwdriver, remove the snap ring.
b. Remove the flange from the ring gear.





2. INSTALL RING GEAR FLANGE
a. Place the flange into the ring gear.
b. Using a screwdriver, install the snap ring.

REASSEMBLY
1. INSTALL ONE-WAY CLUTCH





a. Install the No. 2 one-way clutch into the outer race, facing the flange side of the No. 2 one-way clutch toward the shiny side of the outer race.





b. Using a screwdriver, install the 2 retainers and snap rings to both sides.





2. INSTALL PLANETARY GEAR INTO NO. 2 ONE-WAY CLUTCH
Install the planetary gear into the No. 2 one-way clutch, facing the inner race of the rear planetary gear toward the black side of the No. 2 one-way clutch outer race.





3. CHECK OPERATION OF NO. 2 ONE-WAY CLUTCH





4. INSTALL THRUST WASHER
a. Coat the thrust washer with petroleum jelly.
b. Align the tab of the washer with the hollows of the carrier.
