C1224

DTC C1224/44 NE Signal Circuit

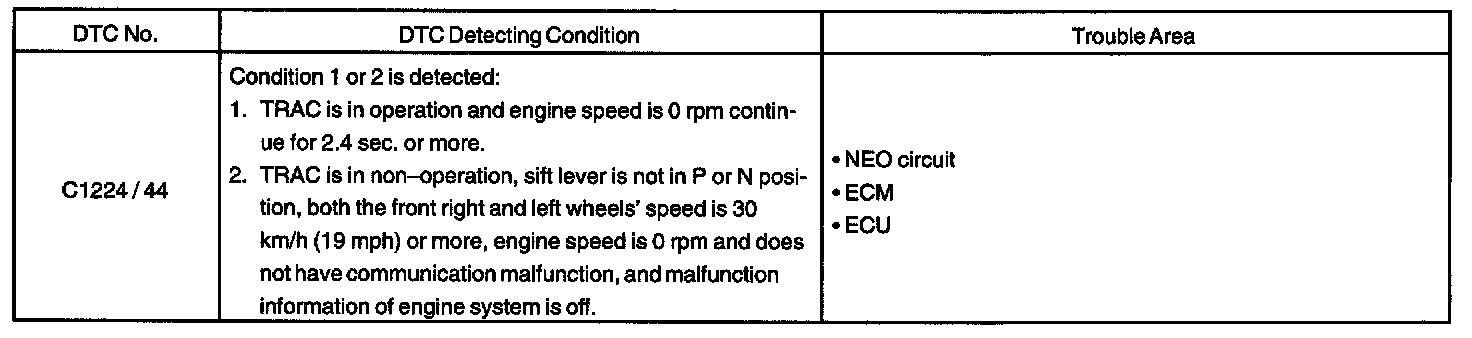

DTC Detecting Condition:

CIRCUIT DESCRIPTION
ABS & TRAC ECU receives the engine speed signals (NE signals) from the ECM.

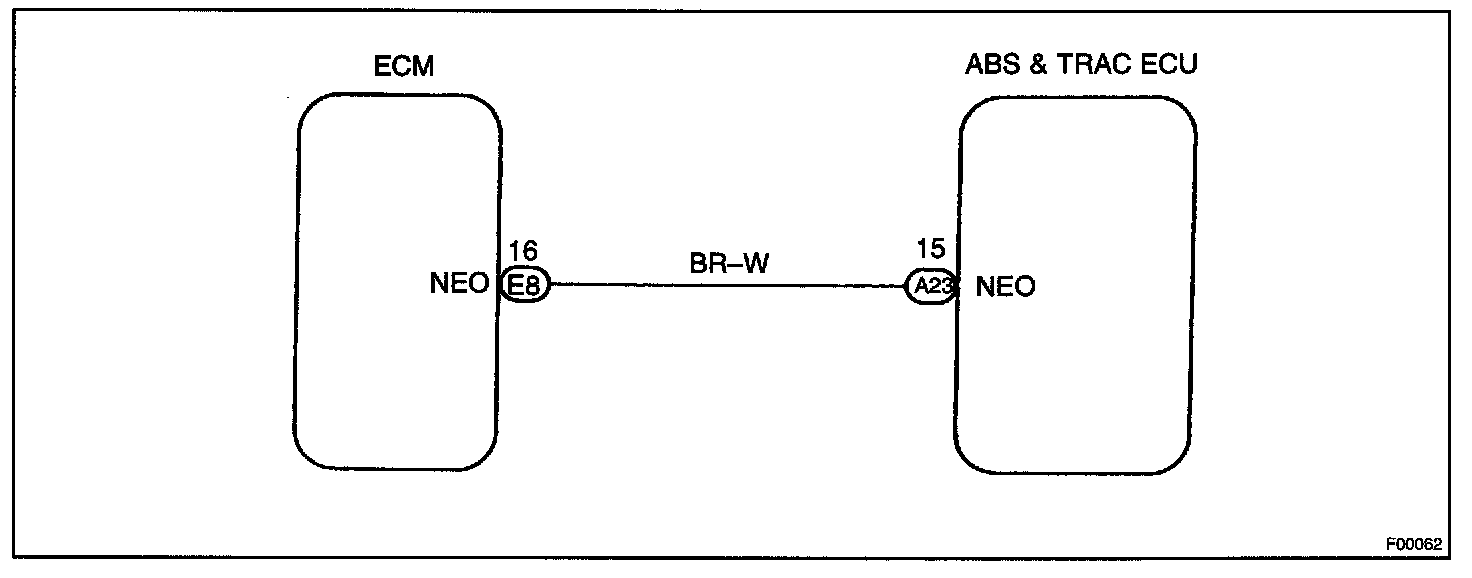

Wiring Diagram:

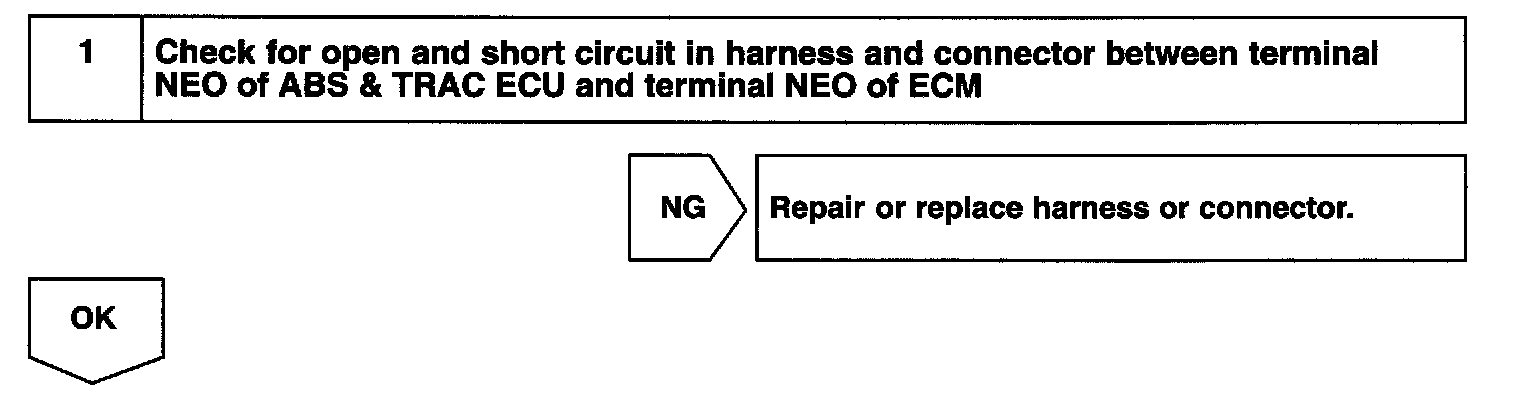

Step 1:

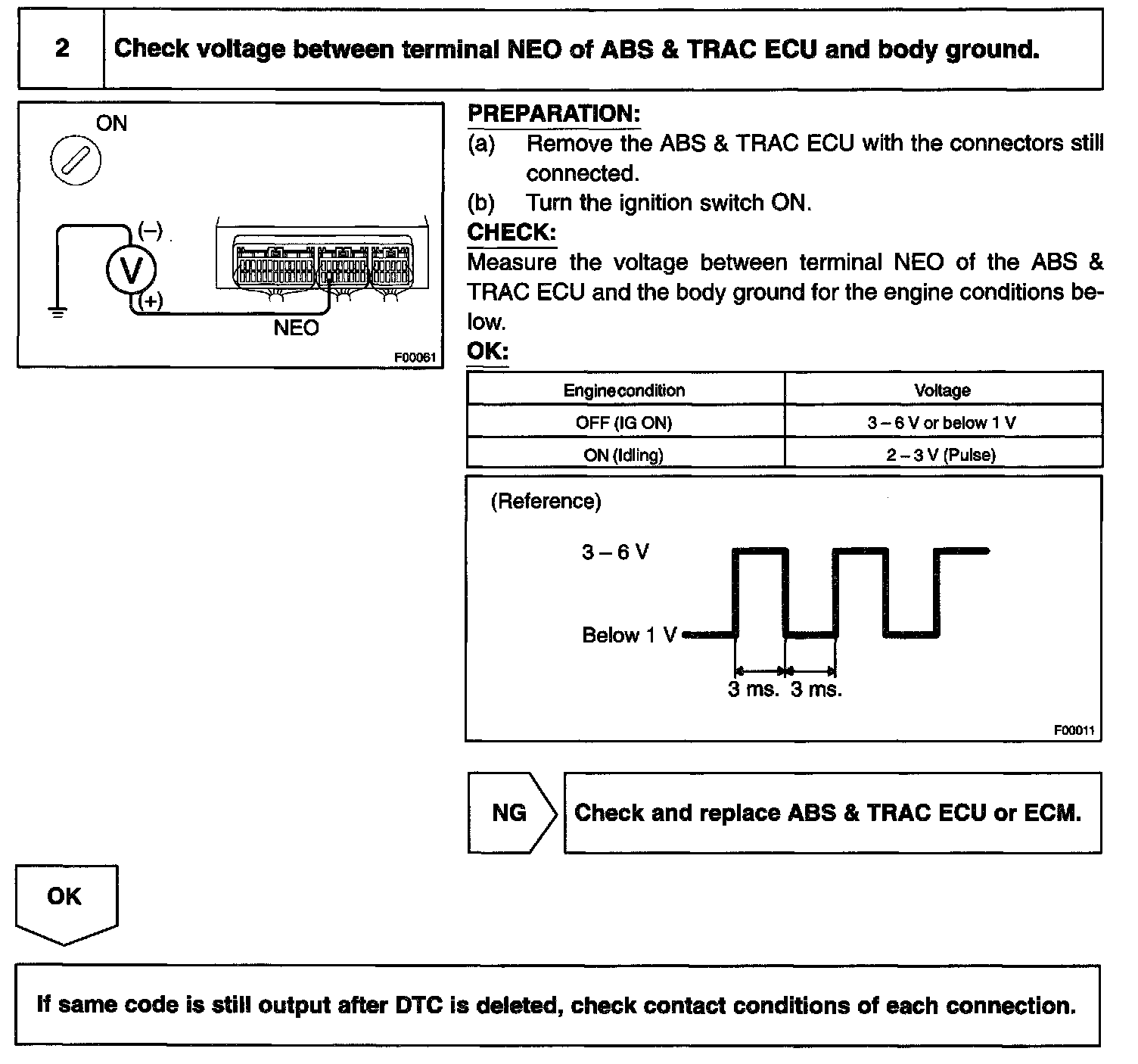

Step 2:

INSPECTION PROCEDURE
