C1241

DTC C1241/41 IG Power Source Circuit

DTC Detecting Condition:

CIRCUIT DESCRIPTION
This is the power source for the ECU and the actuators.

Fail safe function:
If a trouble has occurred in the power source circuit, the ECU cuts off the current to the ABS & TRAC solenoid relay and prohibits the ABS & TRAC controls.

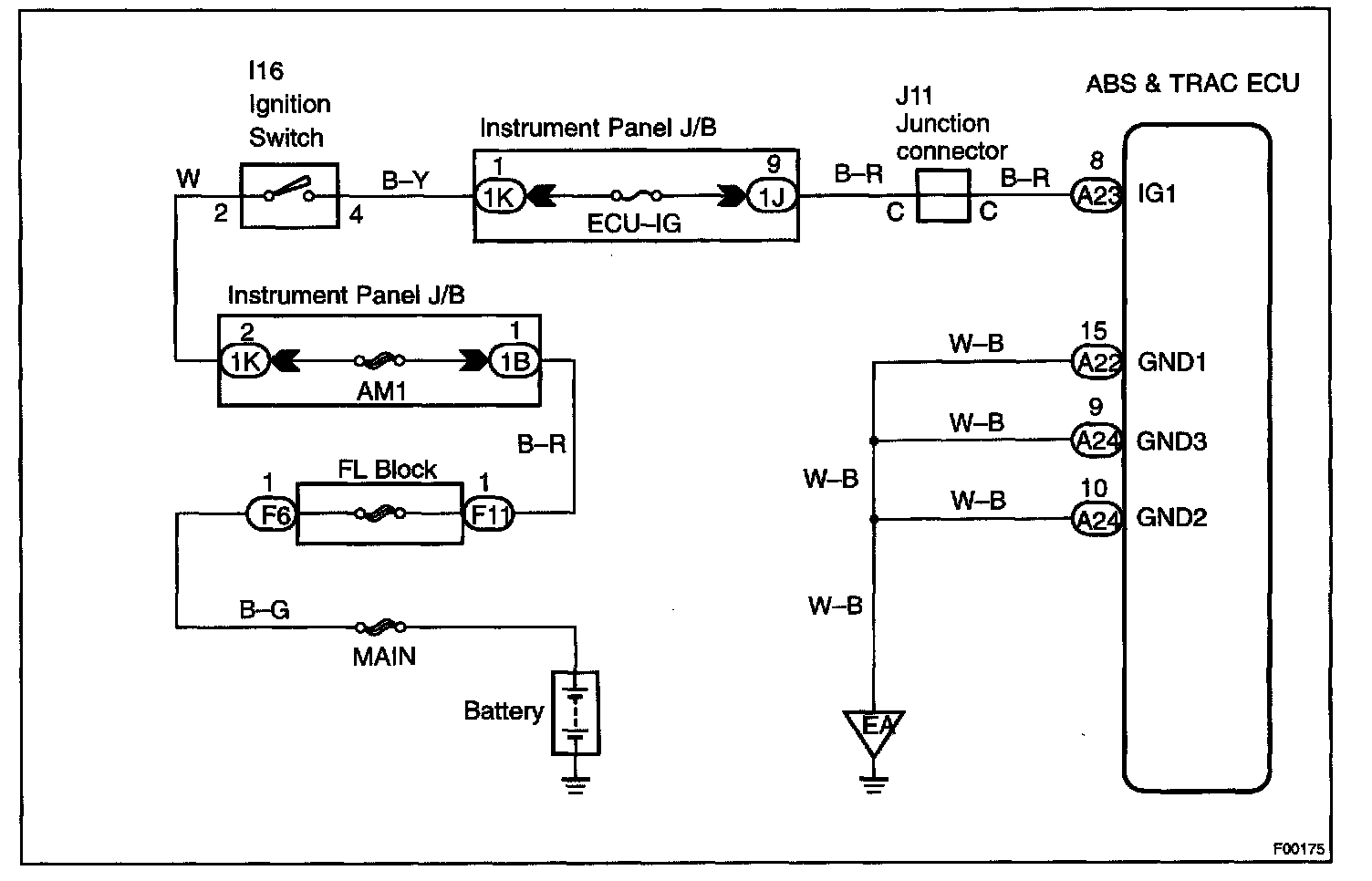

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

INSPECTION PROCEDURE
