ABS w/ Traction Control (TRAC)

C0278/11 - C1241/41:

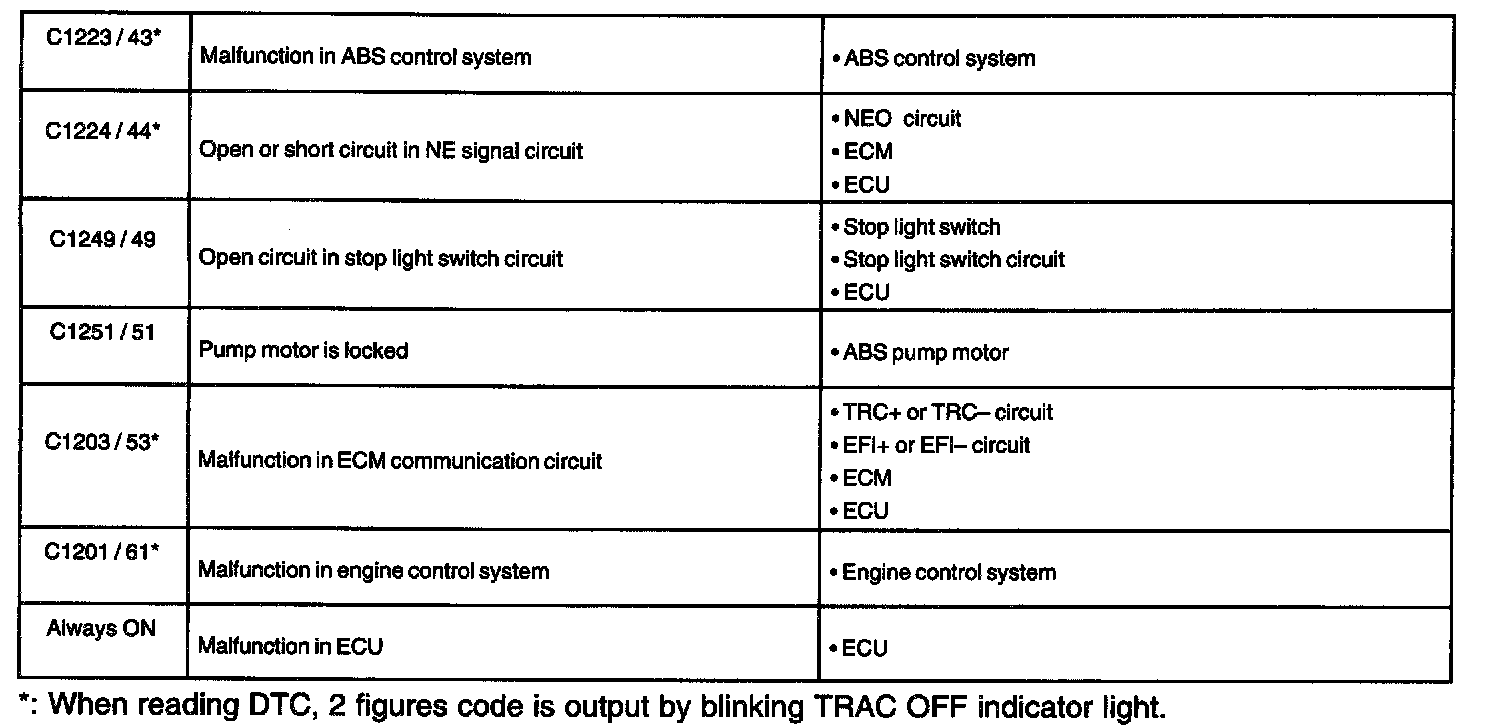

C1223/43 - C1201/61:

DIAGNOSTIC TROUBLE CODE CHART

HINT:
- Using SST 09843-18020, connect terminals Tc and E1 of the DLC1 or DLC2, and remove the short pin.
- If a malfunction code is displayed during the DTC check, check the circuit listed in code. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Procedures".

HINT: There is a case that hand-held tester cannot be used when ABS warning light is always on.
