Symptom Related Diagnostic Procedures

Problem Symptoms Table:

Problem Symptoms Table:

Problem Symptoms Table:

Problem Symptoms Table:

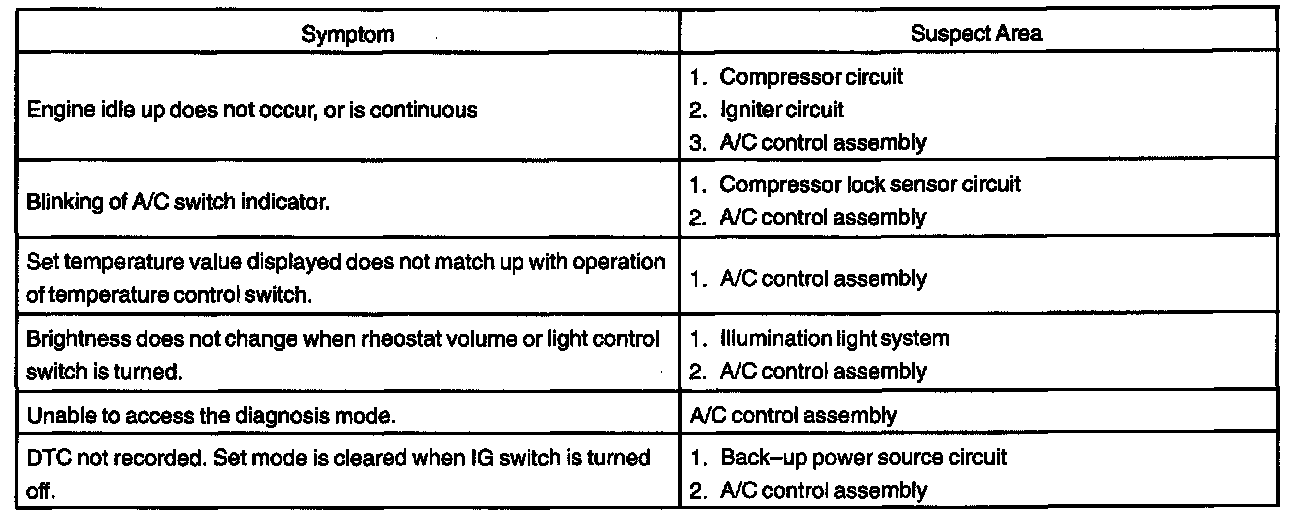

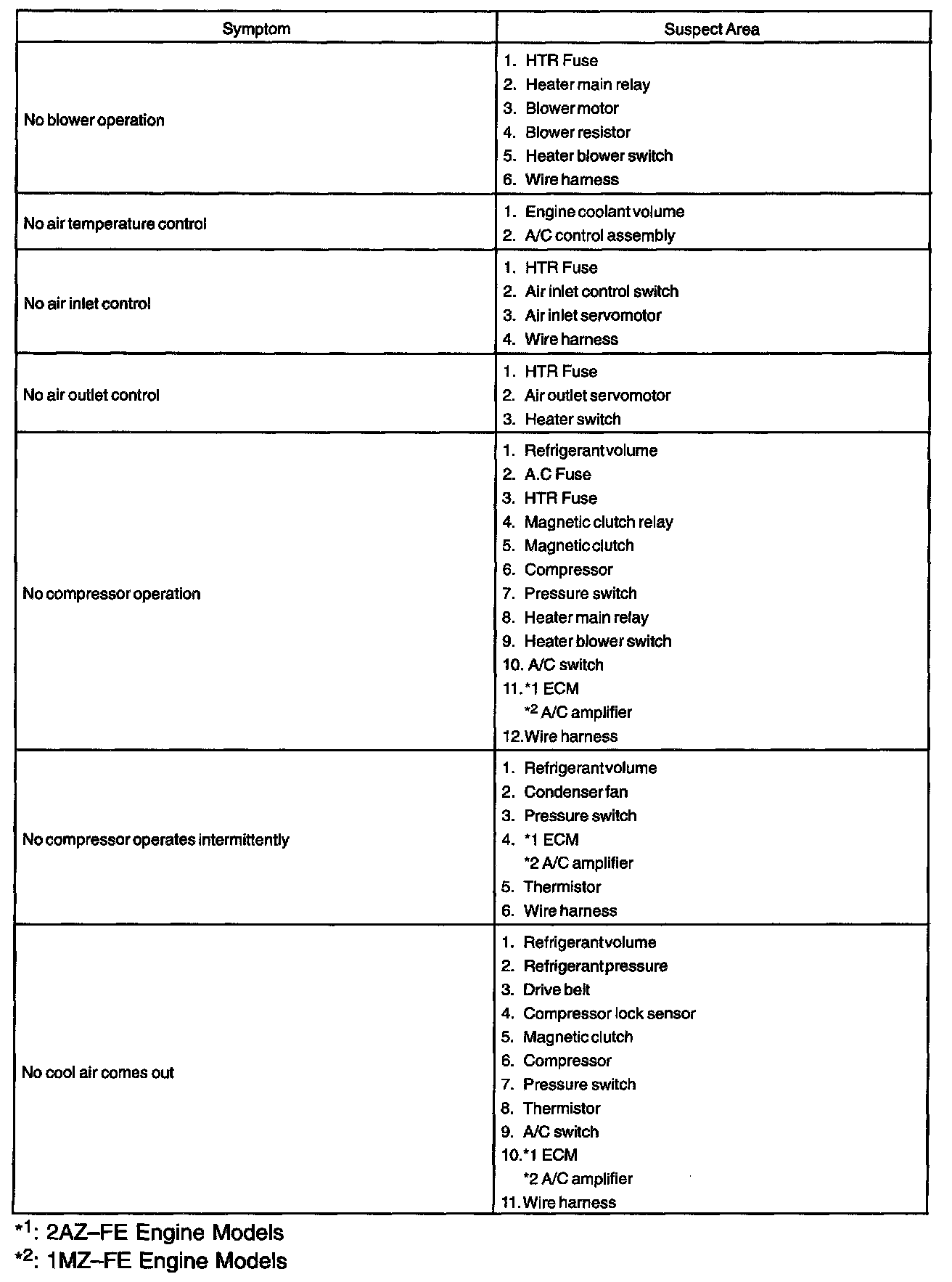

PROBLEM SYMPTOMS TABLE
Use the table the help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, repair or replace the these parts.
