Relay Box: Locations

Instrument Panel J/B:

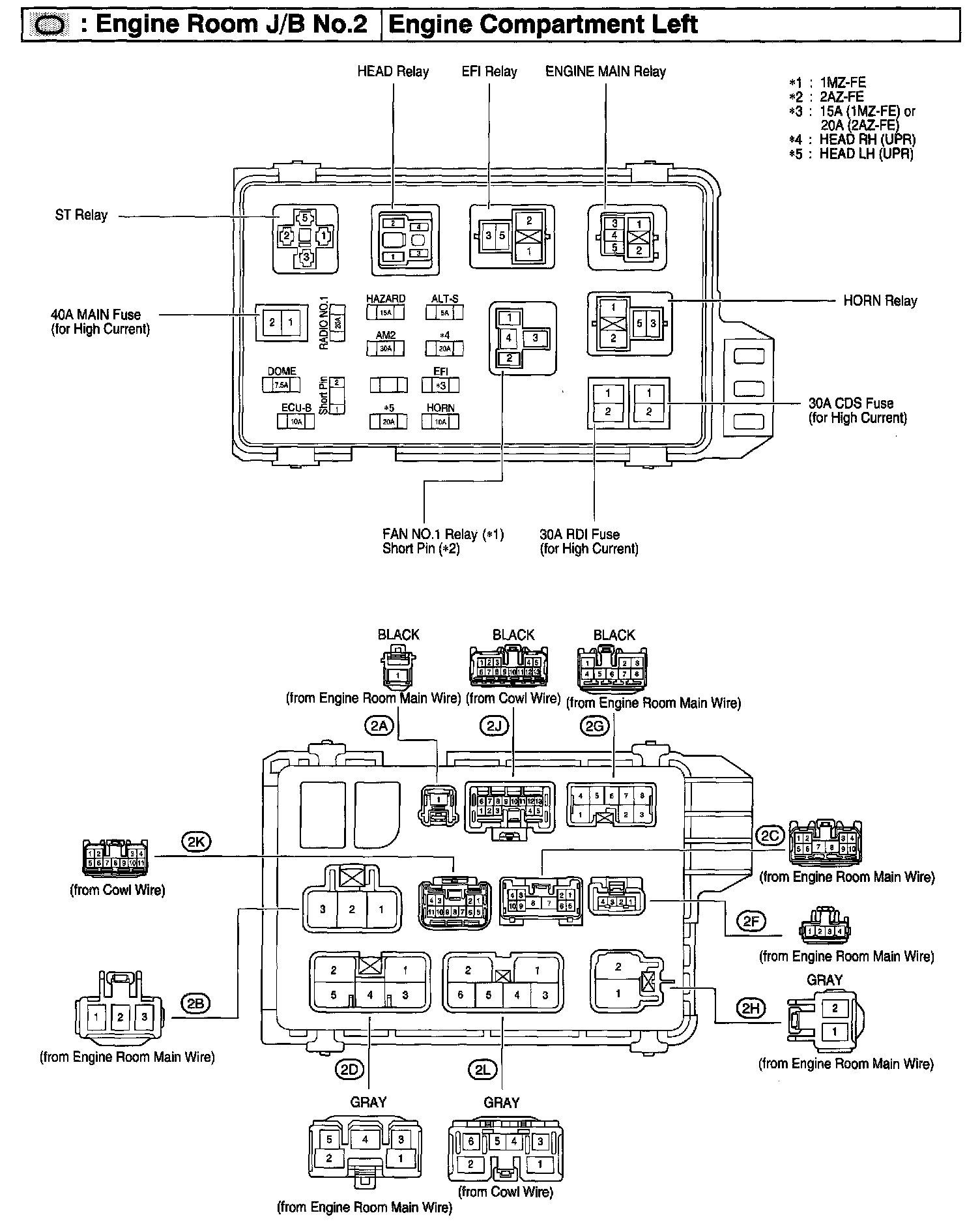

Engine Room J/B No.2:

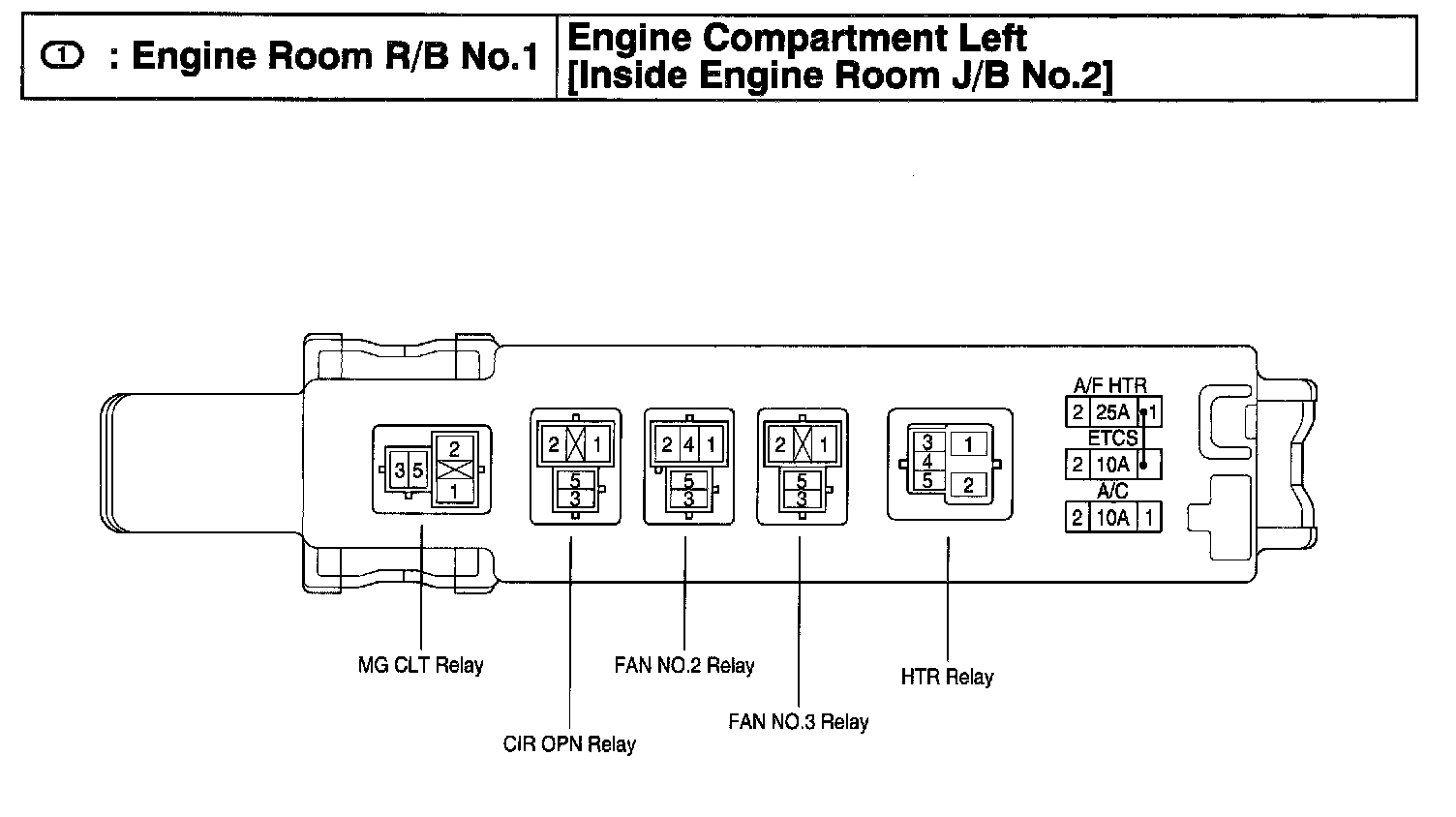

Engine Room R/B No.1:

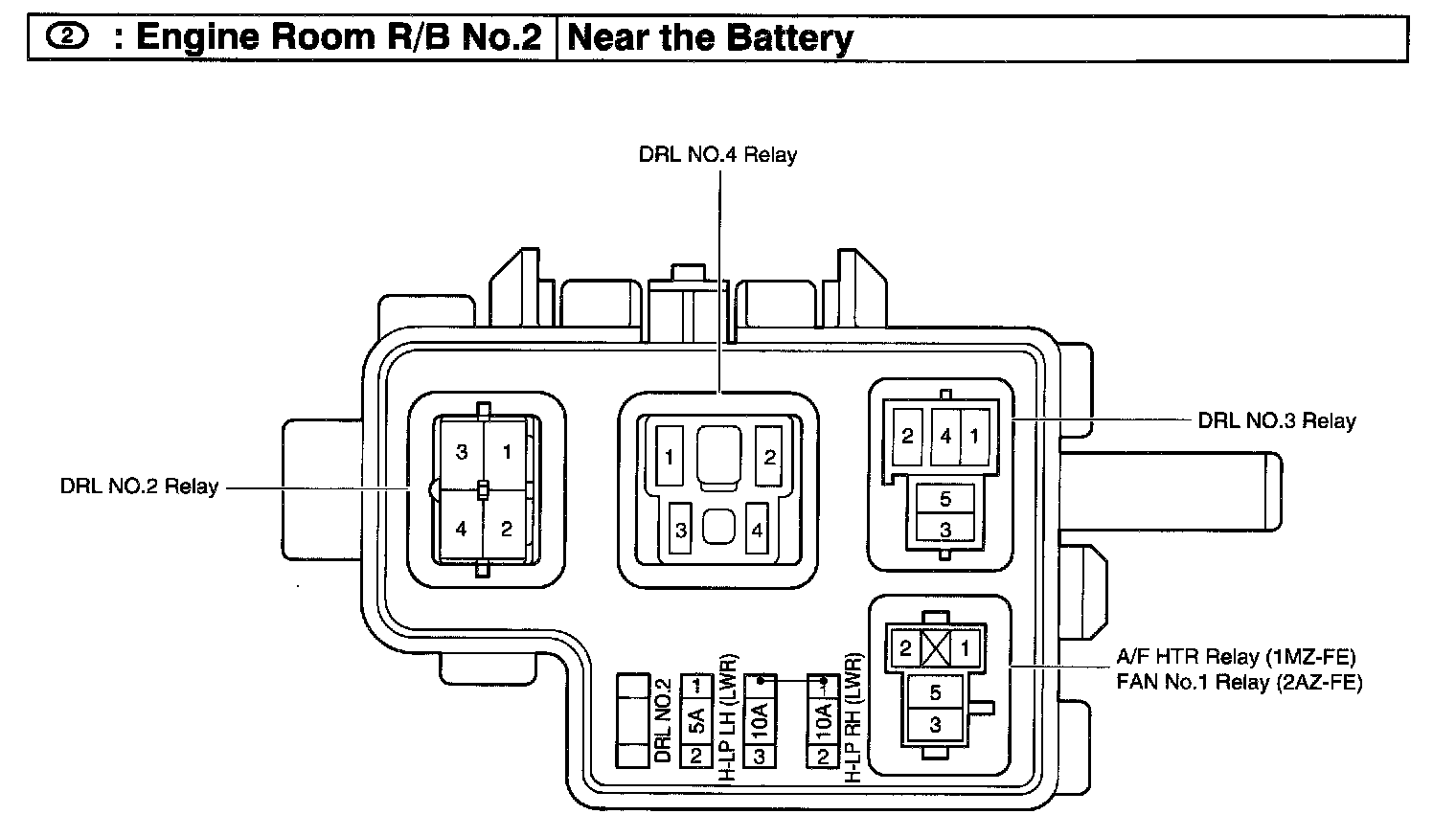

Engine Room R/B No.2:

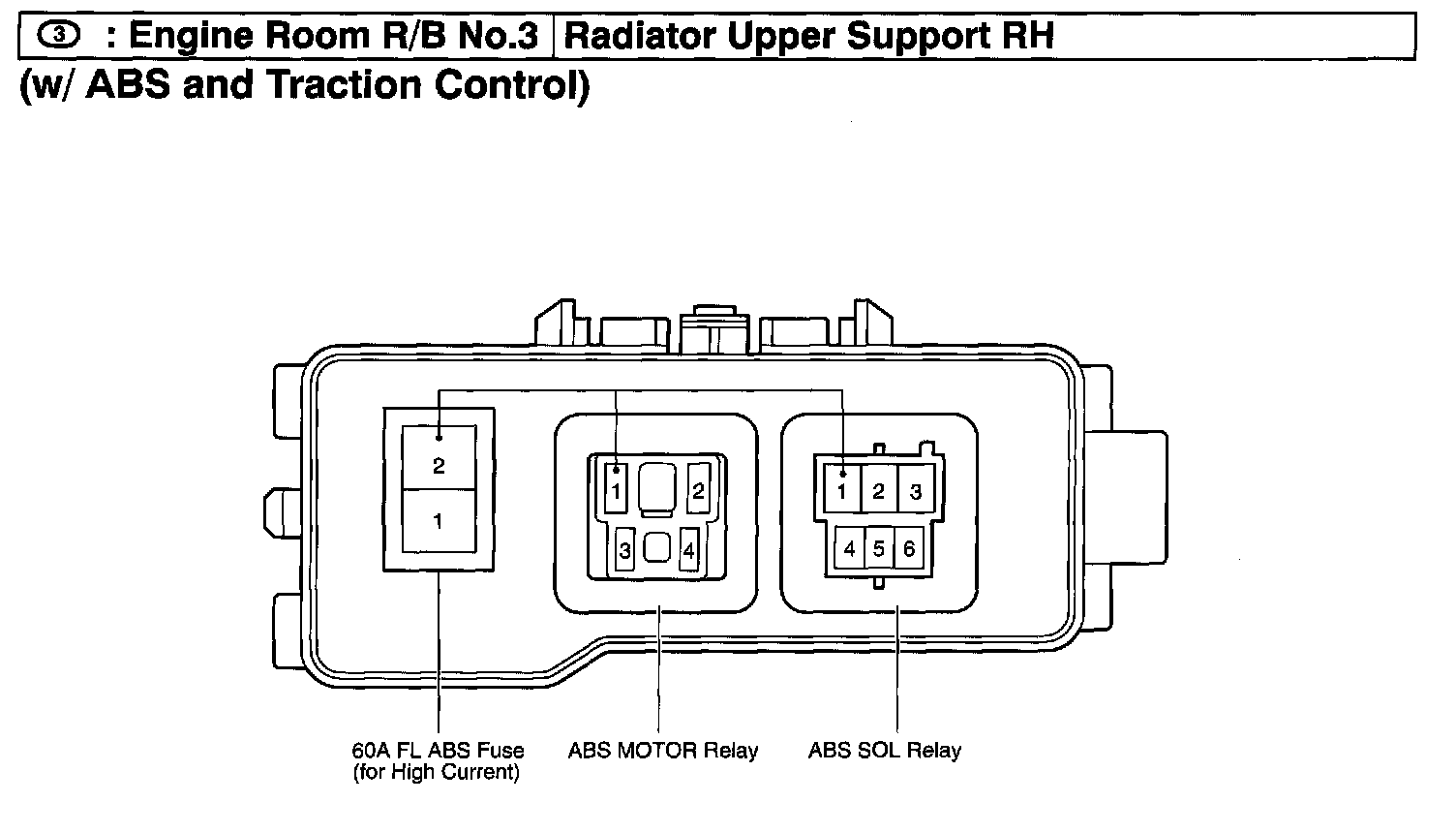

Engine Room R/B No.3:

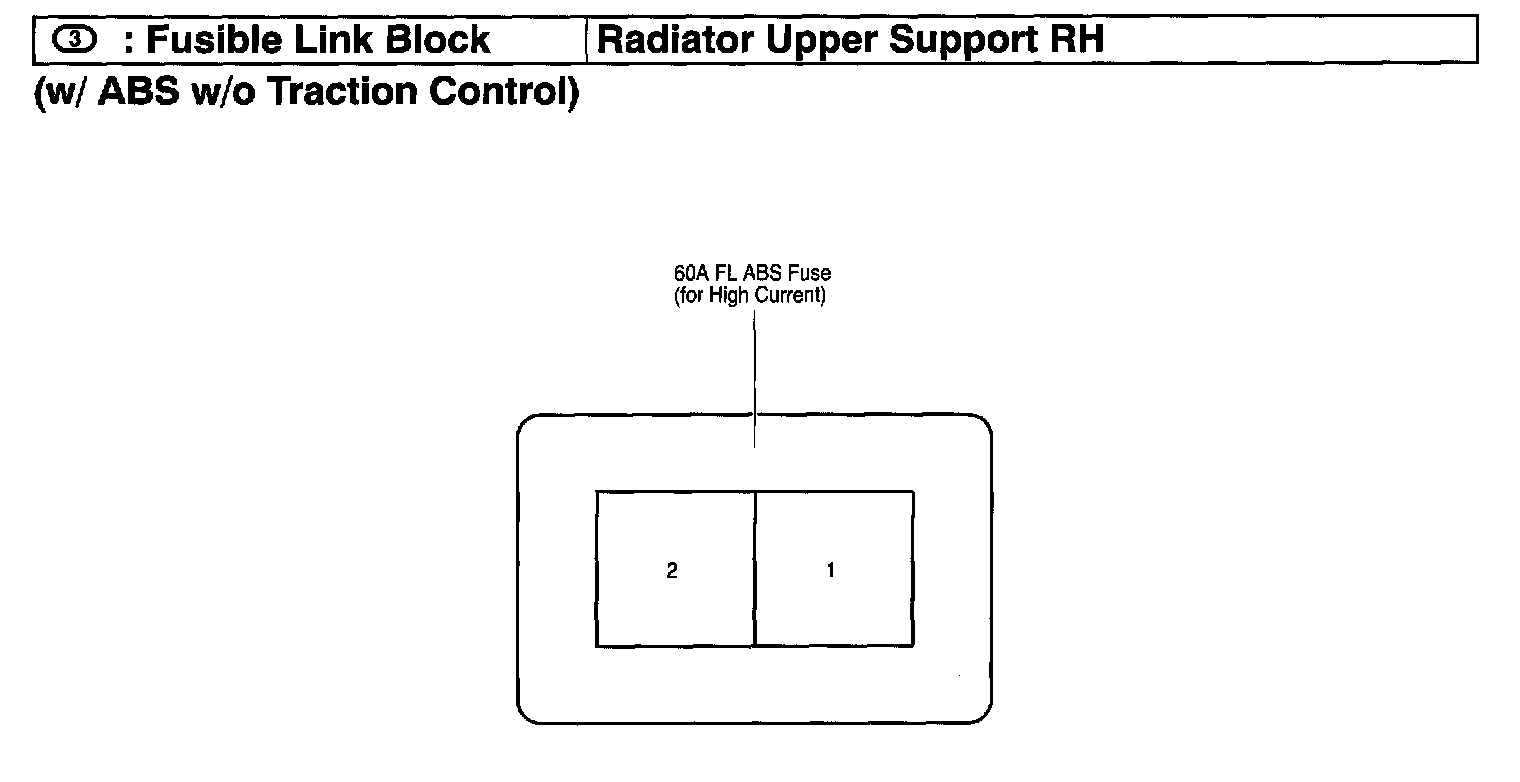

Fusible Link Block - (w/ ABS w/o Traction Control):

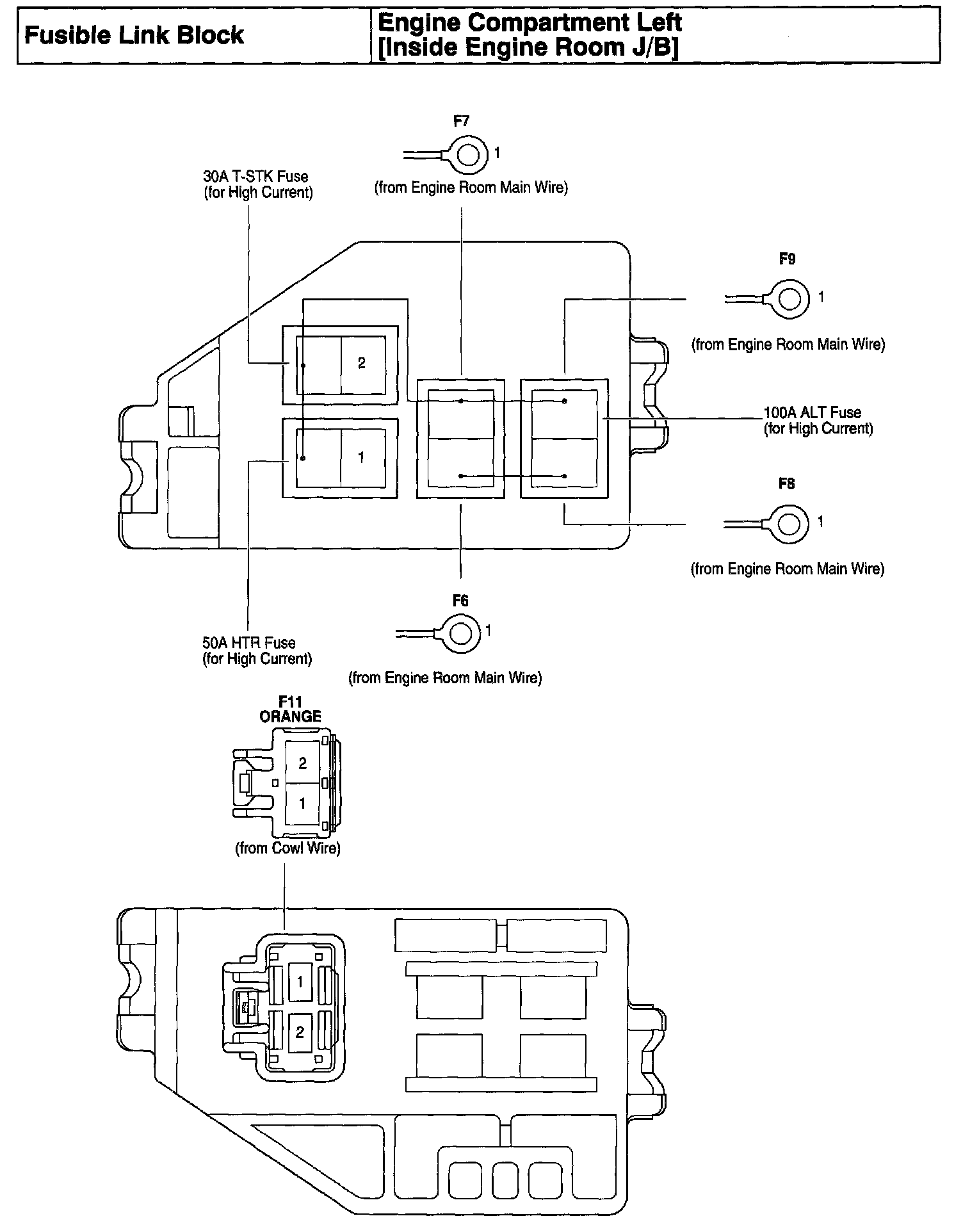

Fusible Link Block:

Engine Compartment:

Instrument Panel - Coupe:

Instrument Panel - Convertible:
