Manual Transmission/Transaxle

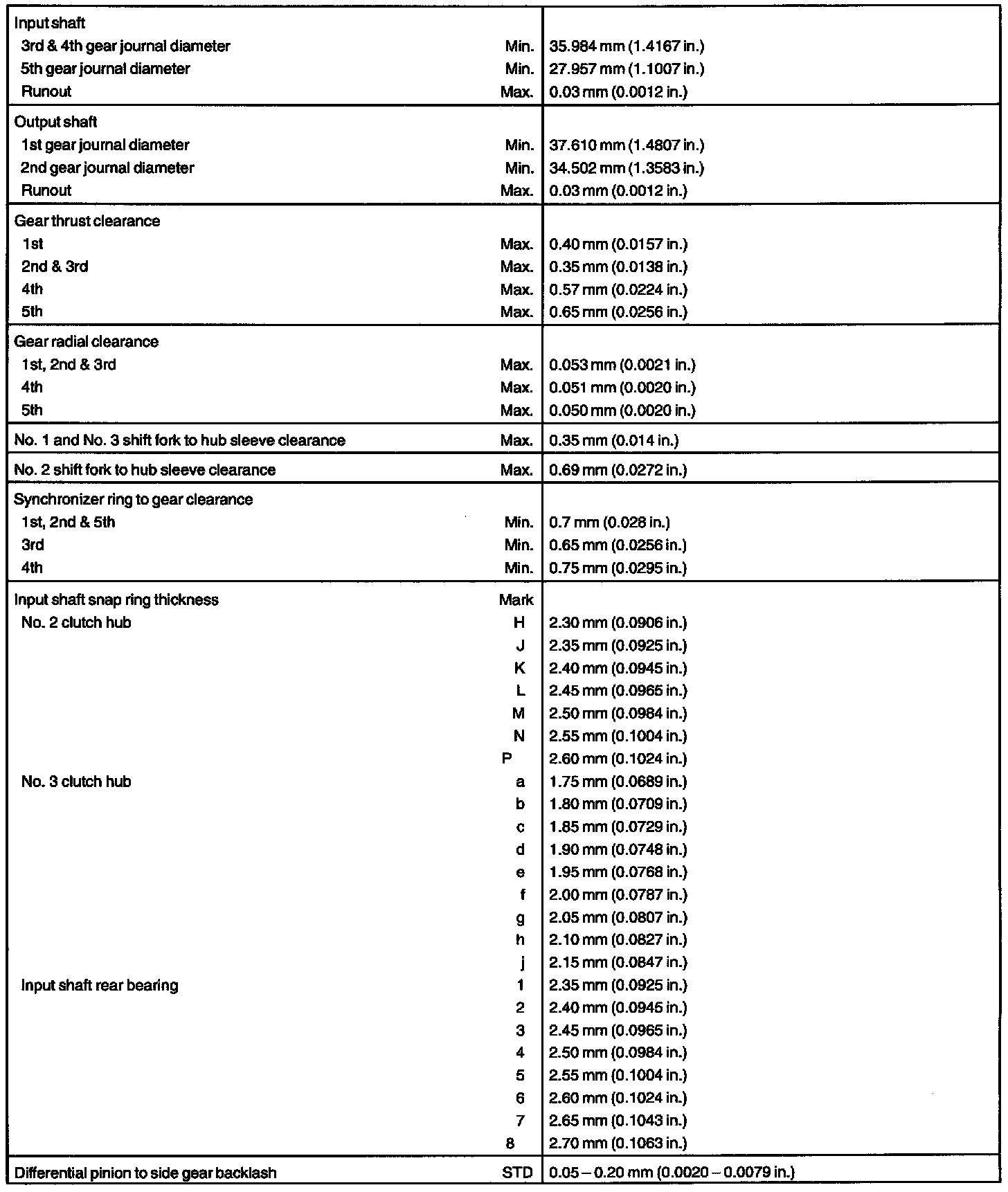

MANUAL TRANSAXLE (E153) SERVICE DATA:

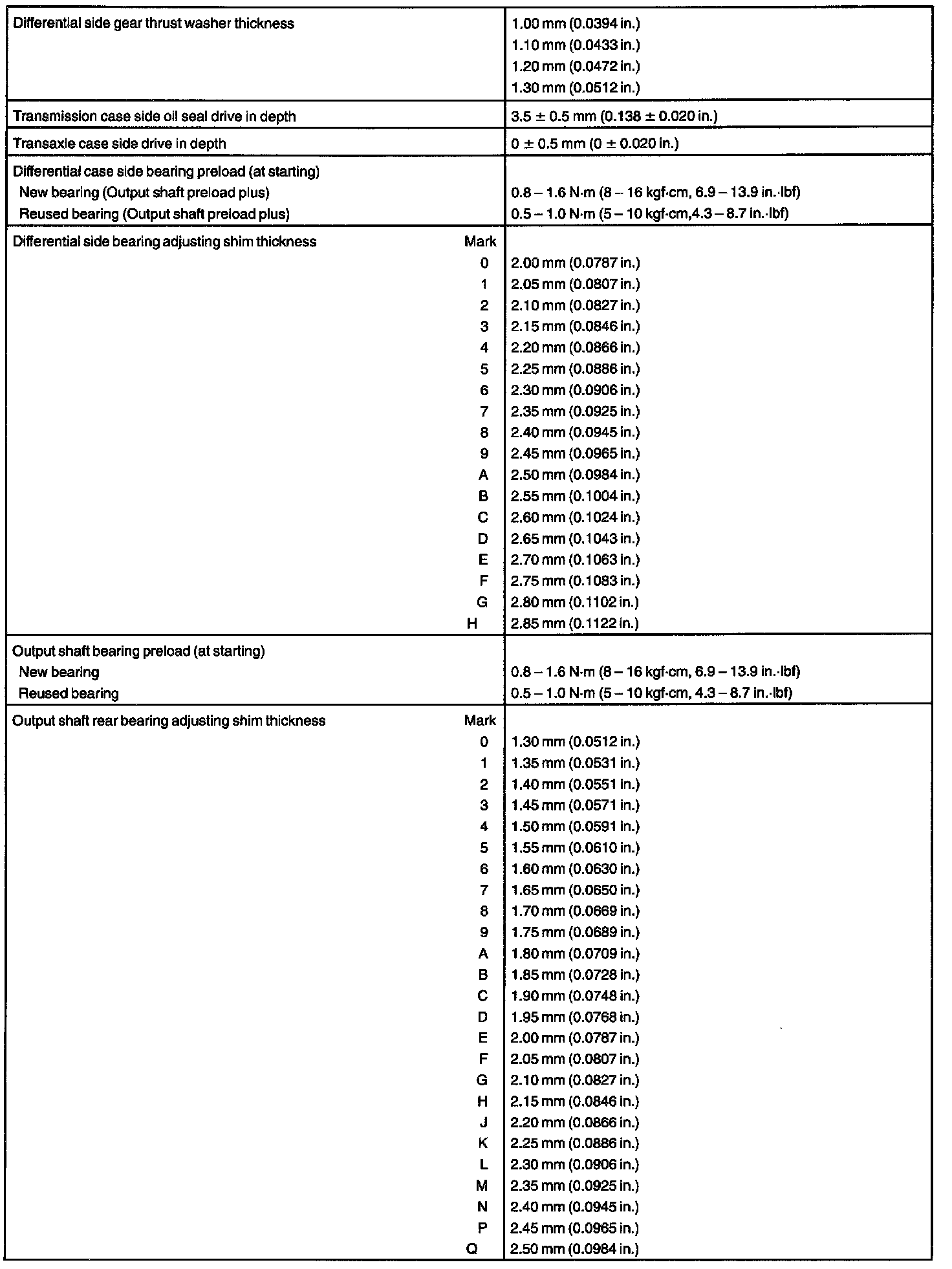

MANUAL TRANSAXLE (E153) SERVICE DATA:




MANUAL TRANSAXLE (E153) SERVICE DATA:




TORQUE SPECIFICATION:




TORQUE SPECIFICATION:





MANUAL TRANSAXLE (E153)

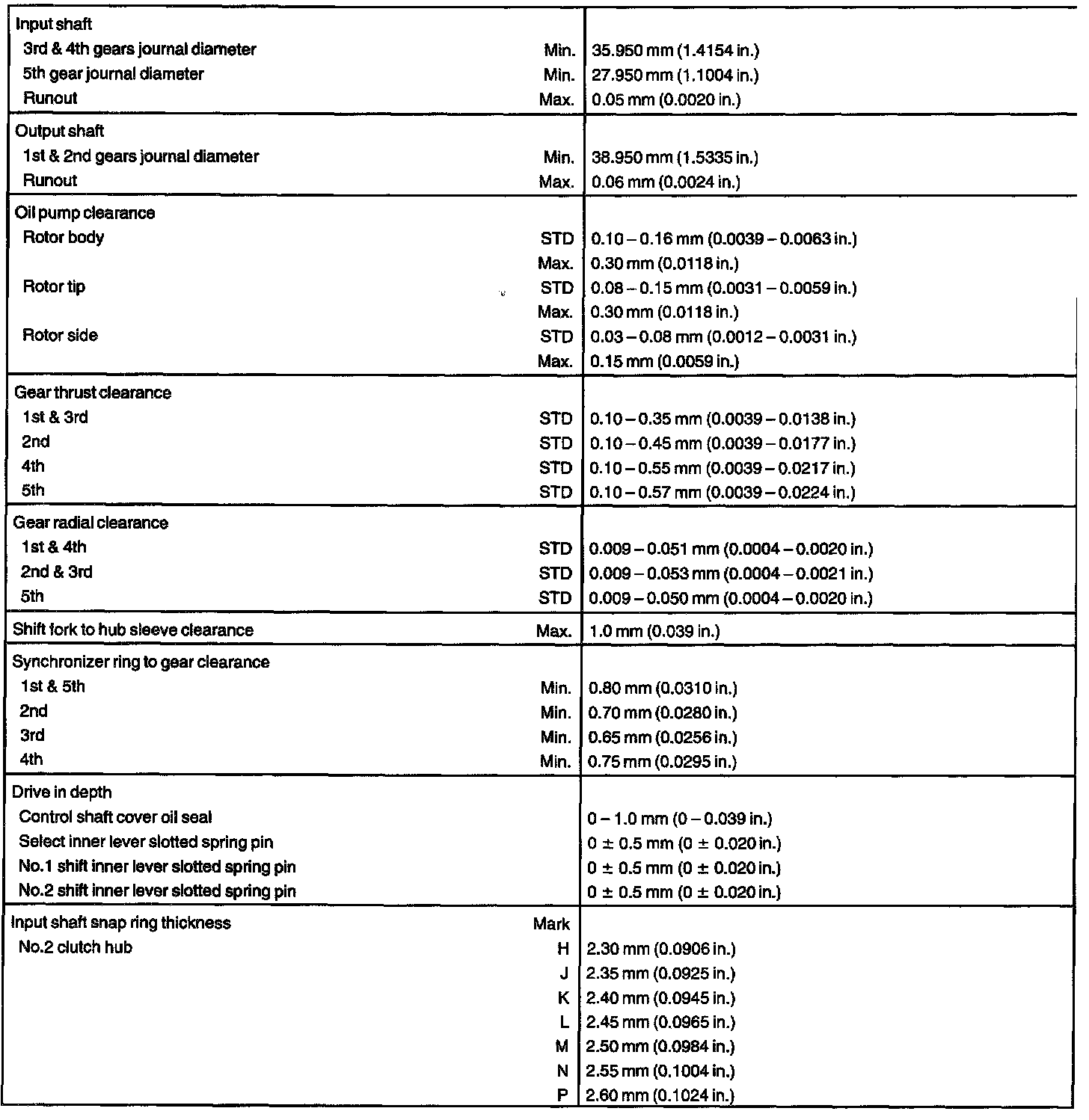

MANUAL TRANSAXLE (E351) SERVICE DATA:

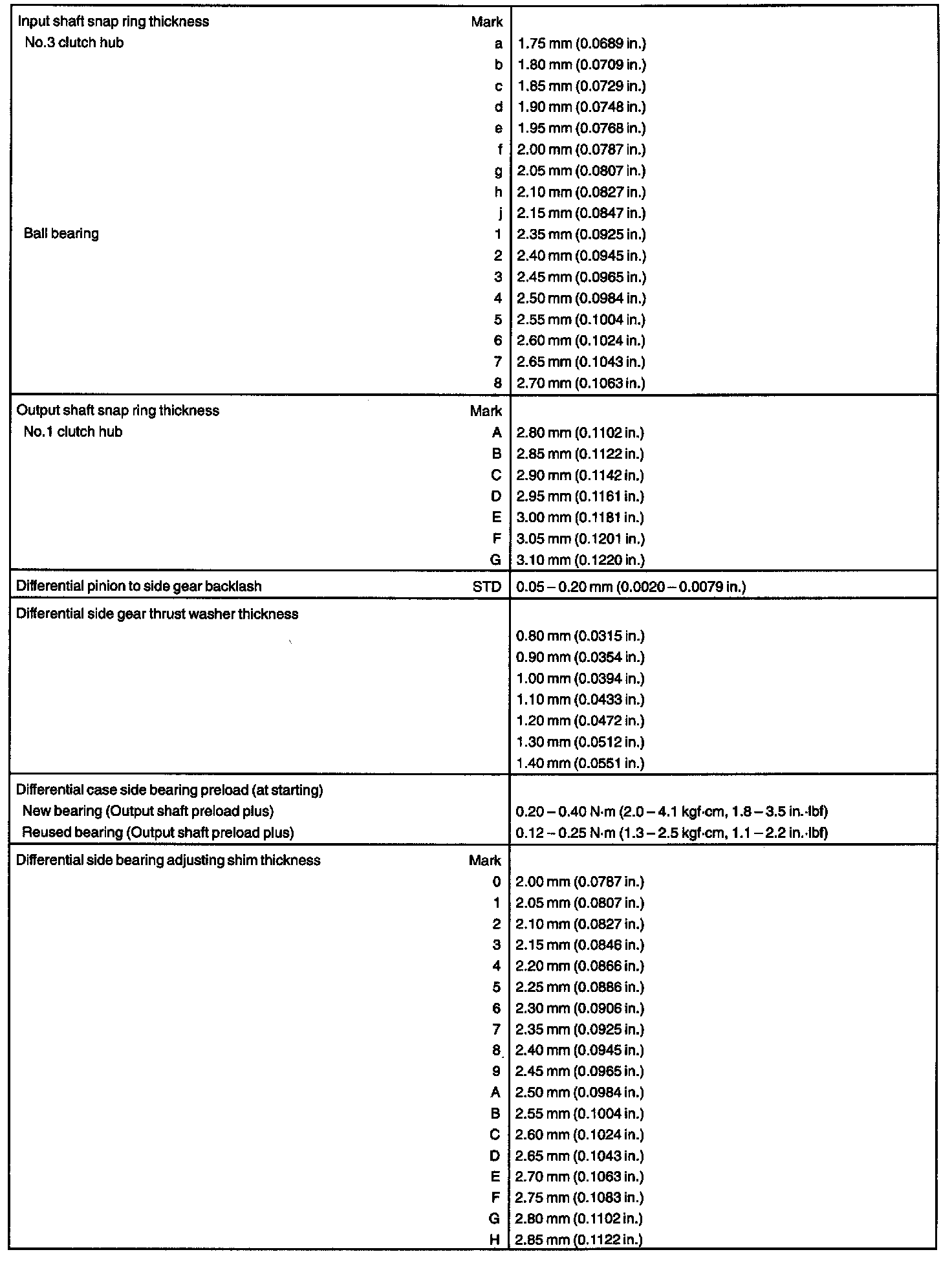

MANUAL TRANSAXLE (E351) SERVICE DATA:




TORQUE SPECIFICATION:





MANUAL TRANSAXLE (E351)
