Canada - Engine Controls - MIL ON/O2 Sensor DTC's Set

Bulletin
1051

Issue Date
2002-03-25

Reference
EE-01-010

Model
Camry

Year Range
2002

Market
Canada

Component
EE

Subject:
M.I.L."ON" DTC P1130, P1135, P1150 OR P1155

Under certain driving conditions, some 2002 model year Japan built Camry vehicles may exhibit a M.I.L. "ON" with one of the following DTCs as a result of an Air Fuel (A/F) Sensor manufacturing and installation issue.
- P1130 (Air Fuel Ratio Sensor Circuit Range/Performance Malfunction [Bank 1, Sensor 1])
- P1135 (Air Fuel Ratio Sensor Heater Circuit Malfunction [Bank 1, Sensor 1])
- P1150 (Air Fuel Ratio Sensor Circuit Range/Performance Malfunction [Bank 2, Sensor 1])
- P1155 (Air Fuel Ratio Sensor Heater Circuit Malfunction [Bank 2, Sensor 1])

With DTC P1130, additional DTCs may be recorded including P0171, P0300, P0301, P0303 or P0305.
With DTC P1150, additional DTCs may be recorded including P0174, P0300, P0302, P0304, P0306.
Replacement of the affected Air Fuel Sensor will correct this condition.

APPLICABLE VEHICLES:

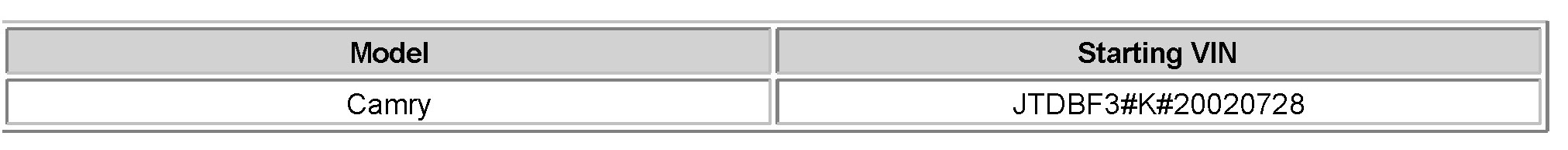

2002 model year Japan Built Camry vehicles produced before the VIN shown below.





PRODUCTION CHANGE INFORMATION:





PARTS INFORMATION:

DIAGNOSTIC PROCEDURE:

Refer to the 2002 Camry Repair Manual, Volume 2, for details on diagnosing A/F Sensors.





REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
