Canada - Sliding Roof Sunshade - Crackle Noise

Bulletin
1027

Issue Date
2001-11-30

Reference
BC-01-031

Model
Camry

Year Range
2002

Market
Canada

Component
BC

Subject:
SLIDING ROOF SUNSHADE CRACKLE NOISE

A repair procedure is available for incidents of 2002 model year Camry sliding roof sunshade crackle noise (closed position and driving on rough roads).

APPLICABLE VEHICLES:
2002 model year Camry vehicles.

PARTS INFORMATION:





NOTE:
The lubricant is recommended for this repair procedure, however product is not sold through Toyota.

REPAIR PROCEDURE:

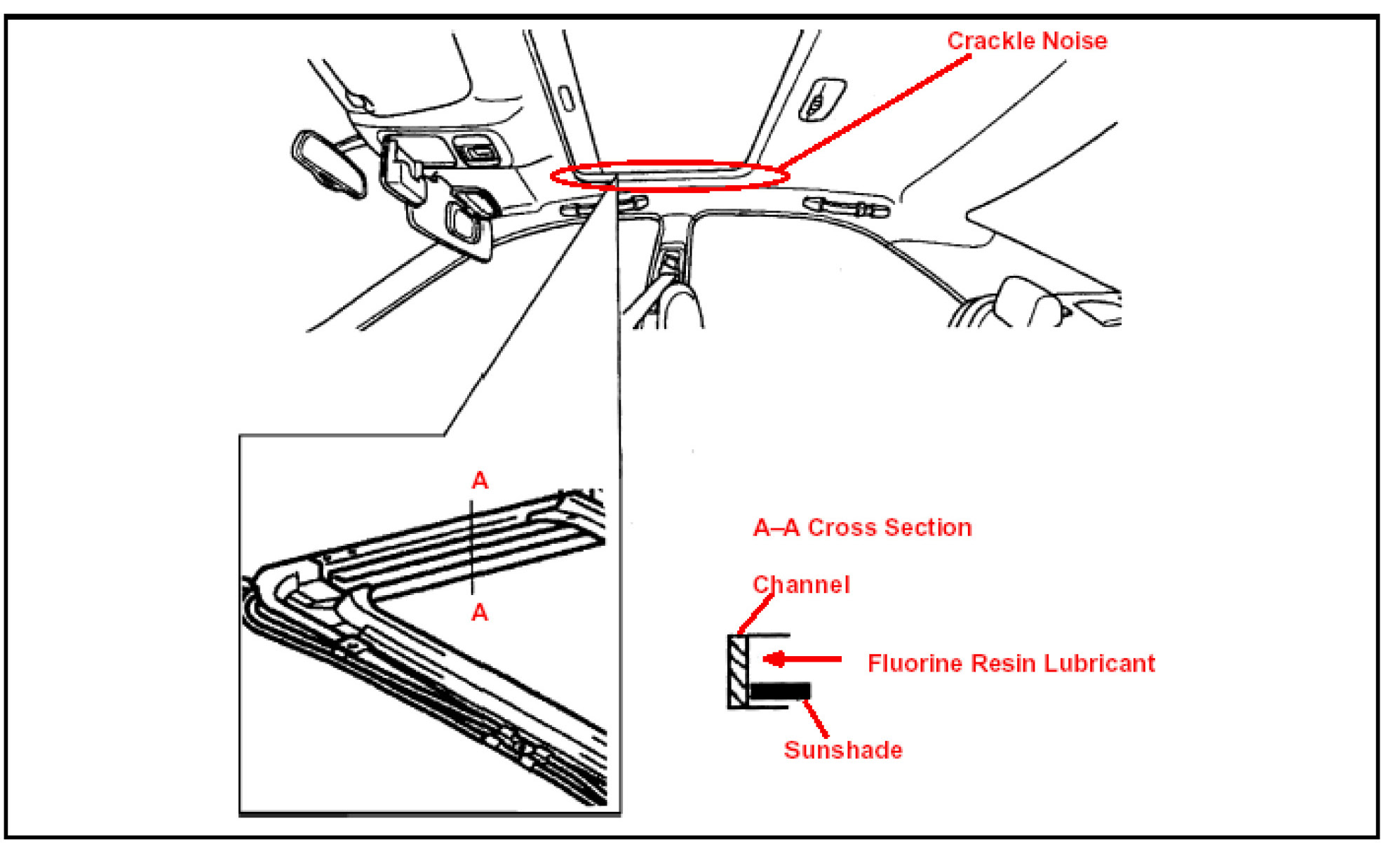

Apply flourine resin lubricant, such as Aerospace Lubricants Pro 21 synthetic spray lubricant, to the sunshade upper and lower surfaces where the sunshade channel makes contact as shown. Assure lubricant does not spray onto headliner or sunshade fabric.

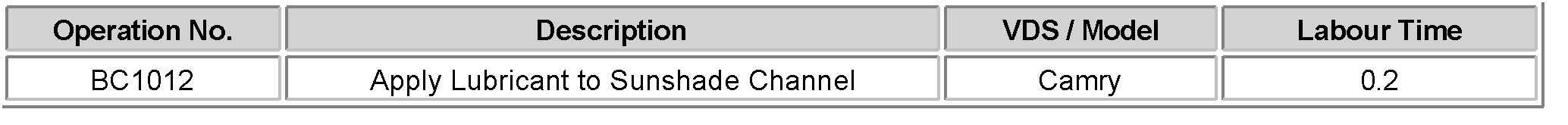

REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
