Drive Shaft - Nut Chisel Tool

SPECIAL SERVICE TOOLS
SS001-02

Title:

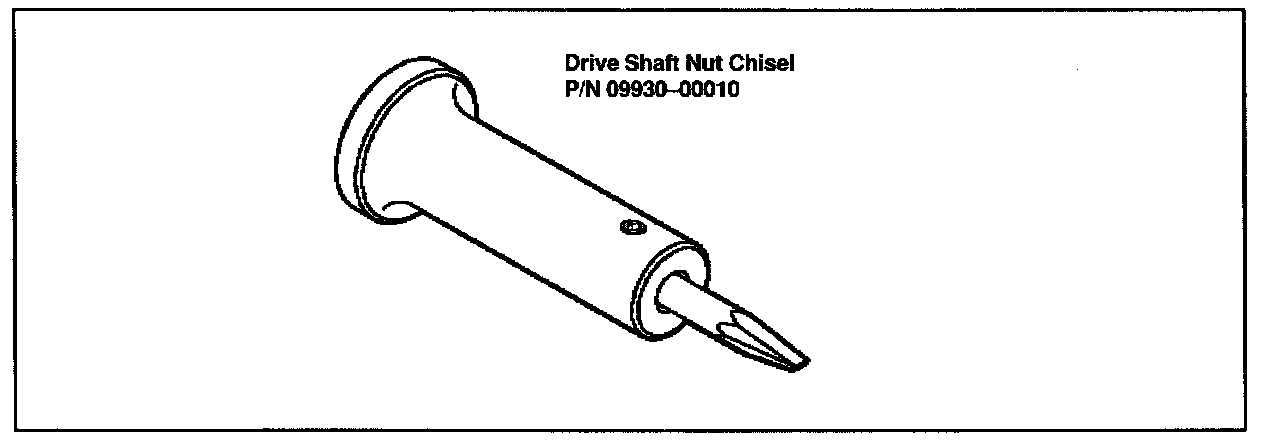

DRIVE SHAFT NUT CHISEL

Models:
Applicable Camry, Celica, ECHO, Highlander, MR2 Spyder, Prius, & RAV4

March 1, 2002

Introduction





The function of the Drive Shaft Nut Chisel is to properly bend the detented portion of a locking nut out of the way of shaft threads for removal of the nut. This is important to eliminate the possibility of thread damage during nut removal. After nut installation, the tool can also be used to stake the locking nut.

Applicable Vehicles
^ 2000 - 2002 model year ECHO, Celica & MR2 Spyder vehicles.
^ 2001 - 2002 model year Highlander, Prius & RAV4 vehicles.
^ 2002 model year Camry vehicles.

Application Procedure

Procedures for this application will be listed in applicable Repair Manual sections.

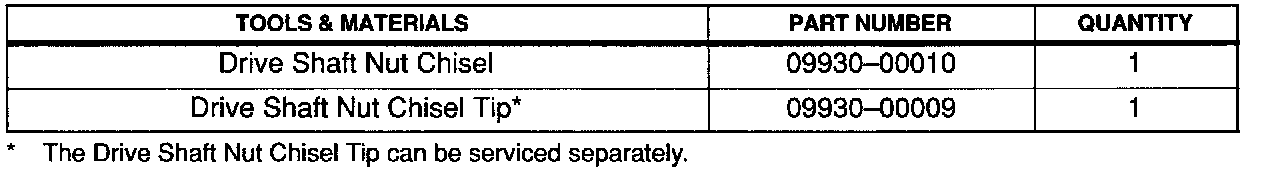

Required Tools & Material

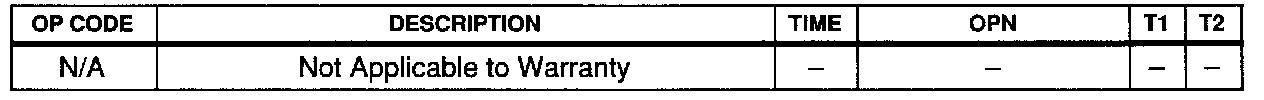

Warranty Information
