Front License Plate - Installation

PRODUCT GENERAL INFORMATION
PG011-01

August 3, 2001

Title:
FRONT LICENSE PLATE INSTALLATION

Models:
'02 Camry

Introduction

The following procedure is recommended for front license plate installation on 2002 model year Camry vehicles.

Applicable Vehicles
^ 2002 model year Camry vehicles.

Installation Procedure

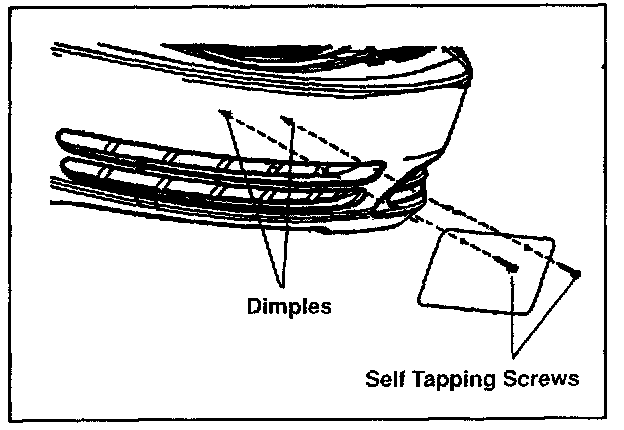

1. Align the holes on the license plate to the dimples on the front bumper.





2. Install two (2) self-tapping screws through the license plate and into the front bumper at the dimples.

NOTE:
^ Do NOT drill holes into the bumper.
^ Do NOT overtighten the screws.





Use self-tapping screws with the following dimensions:

Nominal Length: 25.0 mm (0.98 in.)

Diameter: 6.0 mm (0.24 in.)

Pitch 2.5 mm (0.098 in.)

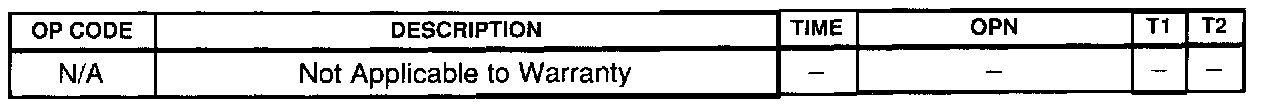

Warranty Information
