Fuel System - Gas Cap Sticking
ENGINEEG002-02
REVISED
Revised: October 30, 2002
Title:
GAS CAP STICKS
Models:
'02 Camry
TSB REVISION NOTICE:
The Information contained in this TSB was revised on October 30, 2002.
The previous TSB should be discarded.
Introduction
Under certain conditions the gas cap on some 2002 model year Camry vehicles may stick and consequently become difficult to remove. Under these circumstances the gas cap should be replaced with a new updated part which will ease the removal of the cap.
Applicable Vehicles
^ 2002 model year Camry vehicles produced BEFORE the Production Change Effective VINs listed below.
Production Change Information

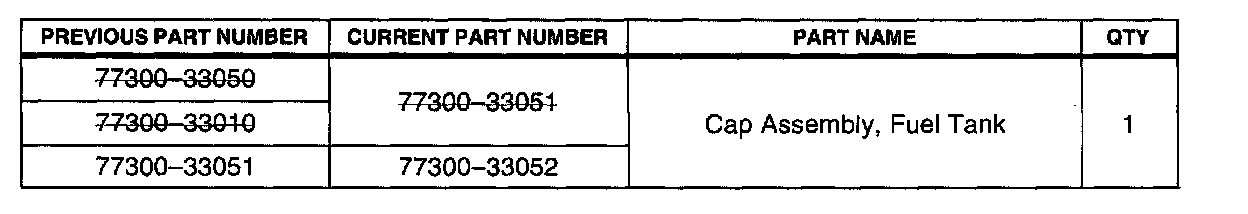

Parts Information

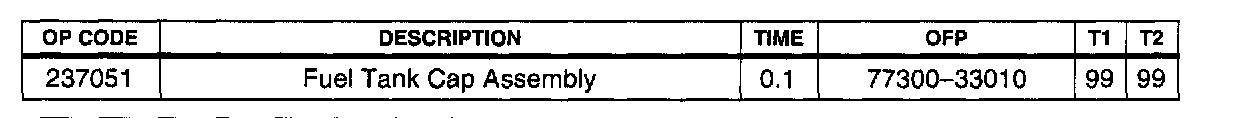

Warranty Information
Applicable Warranty *:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to repair work based upon a customer's specific complaint.
Replacement Procedure

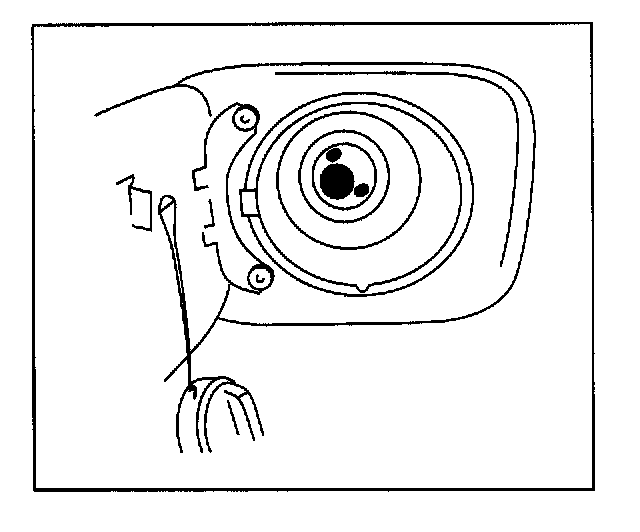

1. Remove the gas cap from the fill neck.
2. Remove the tether from the fuel door with side cutters or pliers.
3. Install the new tether in the hole on the fuel door from which the old tether was removed.

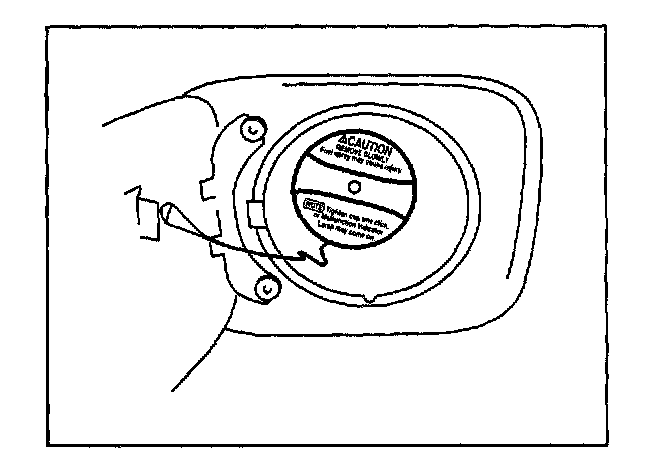

4. Replace the gas cap by inserting into the fill neck and tightening clockwise until there is a single click. This click indicates the cap is tight.
Customer Assistance
Instructions For Proper Operation of the Gas Cap
Gas Cap Removal

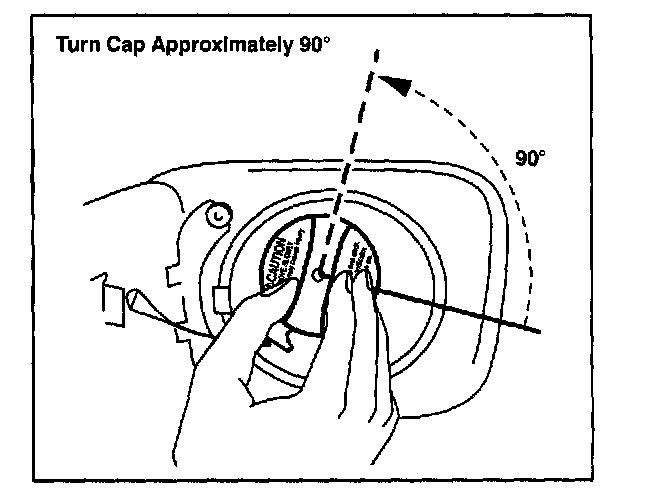

1. To remove the fuel tank cap, turn the cap slowly counterclockwise for roughly 90 degrees of rotation until you start to feel a resistance.
(Although a click will be heard during turning, it does not indicate that the cap has been released.)
2. Then rotate the cap an additional 30 degrees or until the counterclockwise rotation can no longer continue.
3. At this stage, you should pause slightly before removing the cap. It is not unusual to hear a slight "swoosh" or "hiss" when the cap is opened. The removed cap can be stored on the back side of the fuel filler door.
Gas Cap Installation
When installing the gas cap turn the cap clockwise until you hear one click.
When you hear a click, the cap is fully closed. Do not turn further after the click.
NOTICE:
To remove or Install the gas cap, apply turning force only - do not pull or pry it.
Trying to pull or pry the cap can result in damage to the cap itself.
NOTE:
^ If the cap is not tightened securely, the malfunction indicator lamp comes on. Make sure the cap is tightened securely.
^ The Indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible.
