Roof Molding - Deformed

BODY
BO007-02

Title:
ROOF MOLDING DEFORMATION

Models:
'02 Camry (TMMK)

March 1, 2002

Introduction

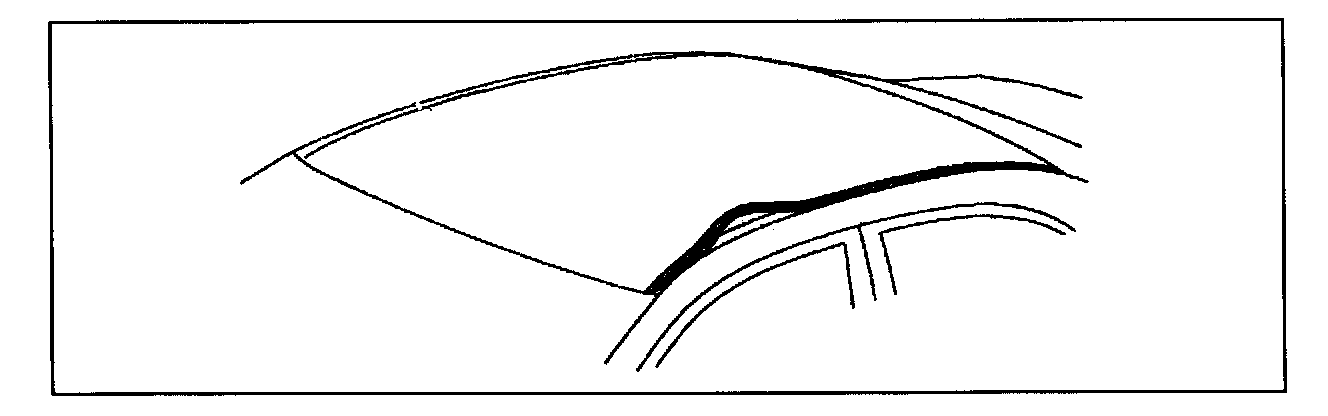

This bulletin provides the recommended repair procedure in cases where the 2002 model year Camry (TMMK) roof moldings lift away from the roof as shown below.

Applicable Vehicles

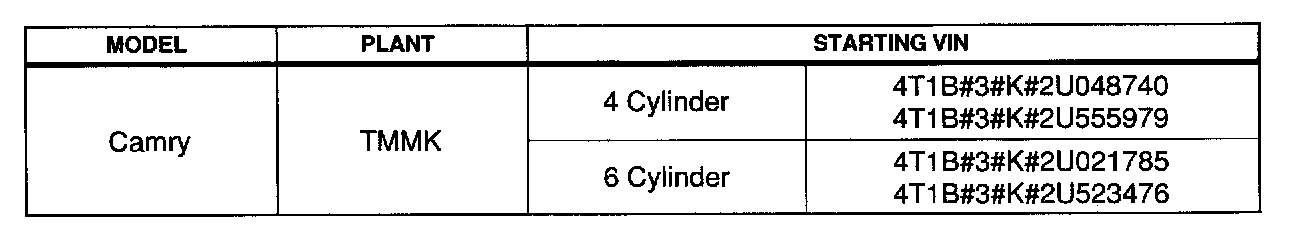

2002 model year Camry (TMMK) vehicles produced before the VINs shown below.





Production Change Information





Parts Information

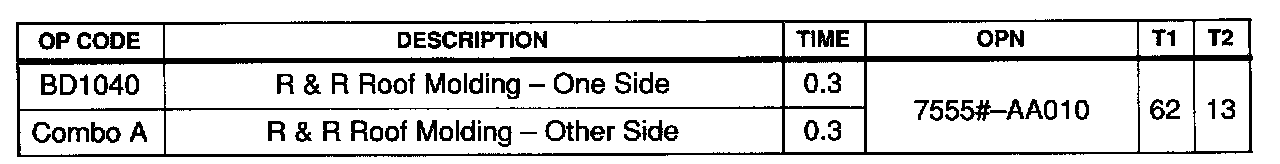

Warranty Information

Applicable Warranty *:

This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

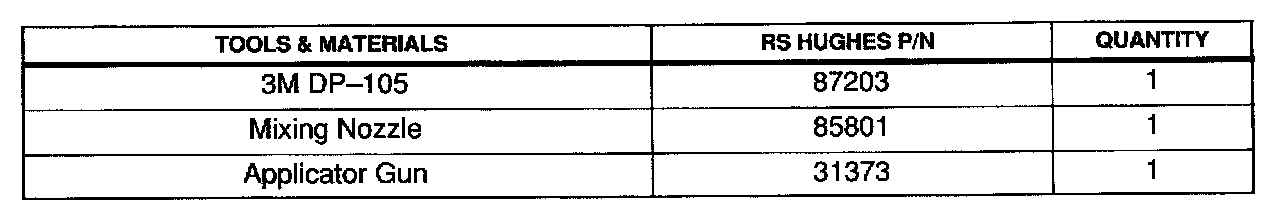

Required Tools & Material

NOTE:
To order these tools and materials, call R.S. Hughes Co. at 1-877-744-8443.

Payment can be by credit card or C.O.D. Expect 2-3 days for delivery.

Repair Procedure

1. Before removing the roof moldings, tape the area around each molding to protect the roof paint.





2. Using a plastic pry tool, narrow putty knife, or a screw driver with taped tip, slowly and carefully unclip the molding at the rear. Once it is unclipped, slowly peel up the molding and then carefully remove the molding from the front clip (Figure 1). Repeat this procedure on the other molding.

NOTE:
Work slowly and carefully so as to not damage the plastic front and rear clips.

If a clip is damaged, the clip must be replaced as follows:

A. Remove the damaged clip and all traces of adhesive from the body.

B. Clean the mounting area on the body with isopropyl alcohol.

C. Scuff the paint and clip mounting surfaces with a red Scotchbrite pad. The clip has a yellowish substance on the mounting surface - scuff the mounting surface (do NOT remove the yellowish substance).

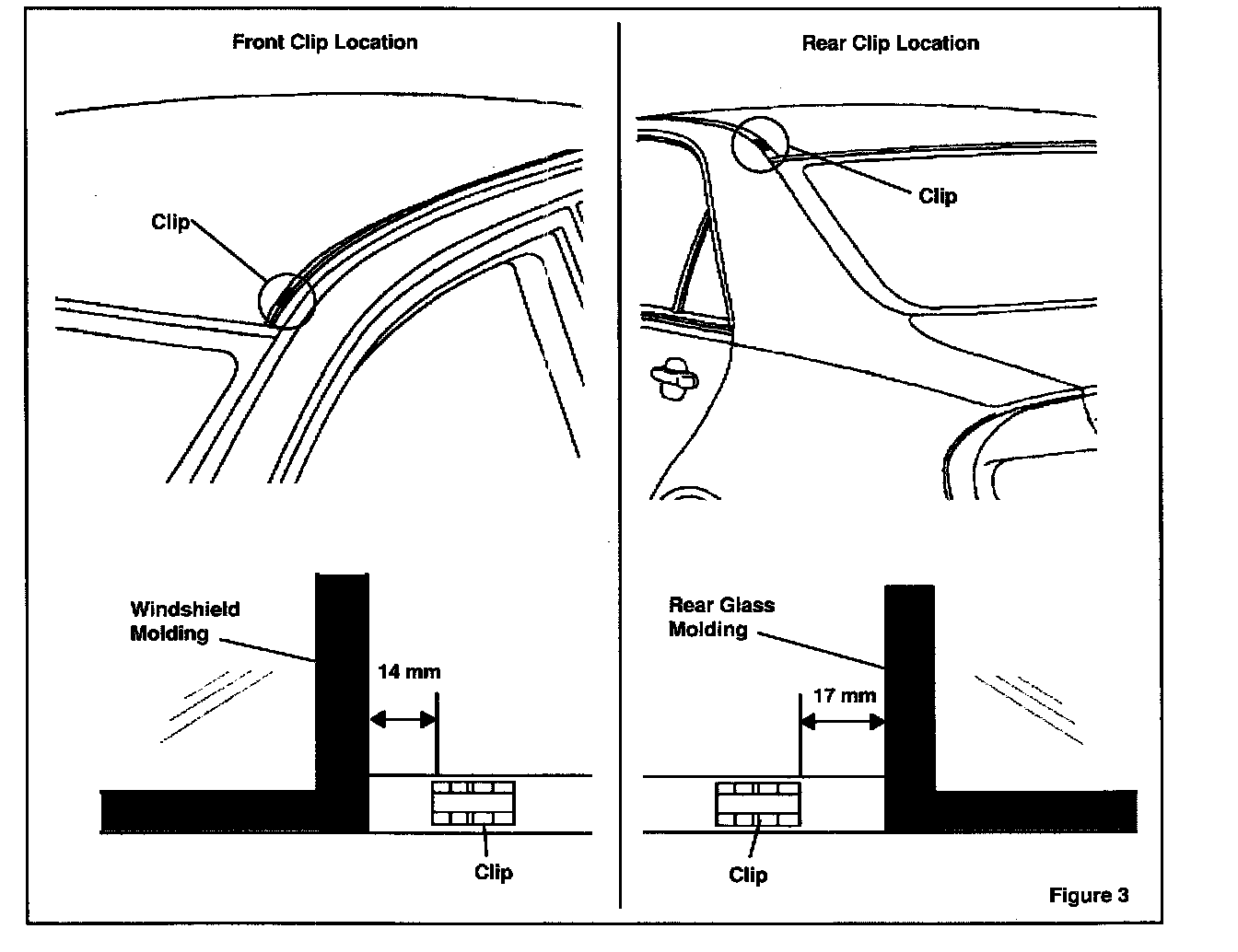

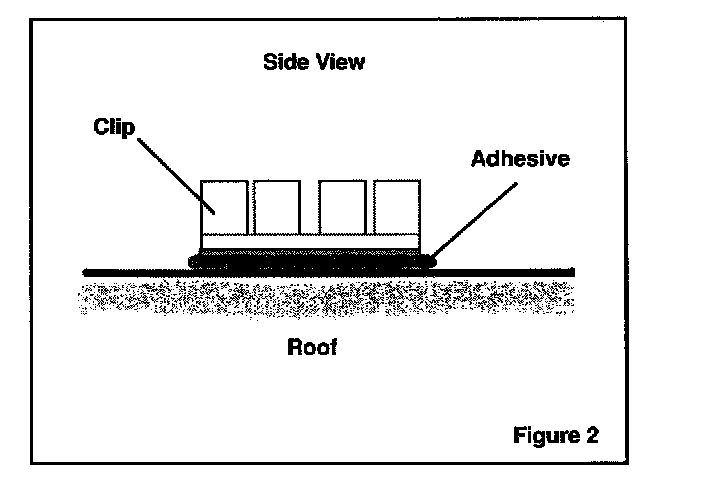

D. Apply 3MDP-105 adhesive (Figure 2) (using the dispensing gun and mixing tip) to the clip, position the clip as shown in the illustrations (Figure 3) (front clip is 14 mm from the windshield molding; rear clip is 17 mm from the rear glass molding).

E. Allow the adhesive to fully cure for the recommended time:

^ 40 minutes at 68°F (20°C)

^ 80 minutes at 50°F (10°C)

^ 160 minutes at 32°F (0°C)

3. Install the service part molding by aligning it in the roof channel and press fitting into place. It will "click" into the clips.
