Suspension - Front Suspension Thump/Knock Noise
SUSPENSIONSU001-03
Title:
FRONT SUSPENSION THUMP/
KNOCK NOISE
Models:
'02 Camry
January 15, 2003
Introduction
Some 2002 model year Camry (NAP) vehicles may exhibit a thumping/knocking noise from the front suspension. Use the following instructions to repair the noise.
Applicable Vehicles
^ 2002 model year Camry (NAP) vehicles produced before the VIN shown below.
Production Change Information
Repair Procedure

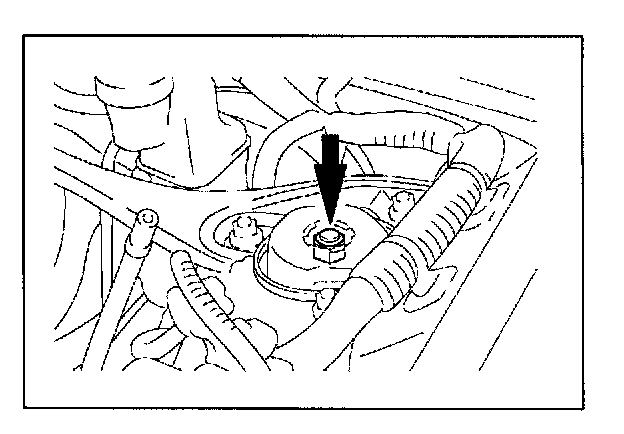

Confirm front upper strut nut torque.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
Warranty Information
Applicable Warranty *:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
