Sliding Roof Sunshade - Crackle Noise

NVH
NV011-01

November 16, 2001

Title:
SLIDING ROOF SUNSHADE CRACKLE NOISE

Models:
'02 Camry

Introduction

A field fix is available for incidents of 2002 model year Camry sliding roof sunshade crackle noise (closed position and driving on rough roads).

Applicable Vehicles
^ 2002 model year Camry vehicles.

Repair Procedure





Apply flourine resin lubricant, such as Aerospace Lubricants Pro 21 synthetic spray Procedure lubricant, to the sunshade upper and lower surfaces where the sunshade channel makes contact as shown. Assure lubricant does not spray onto headliner or sunshade fabric.

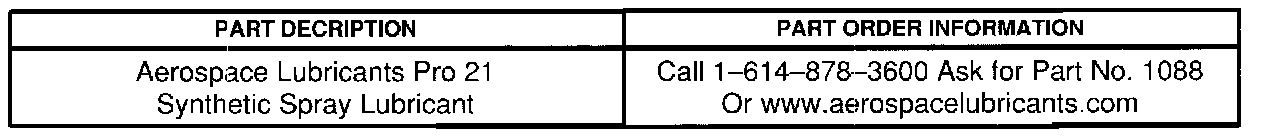

Parts Information





Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
