Clutch: Service and Repair
REMOVAL
1. REMOVE TRANSAXLE FROM ENGINE
2. REMOVE CLUTCH COVER AND DISC

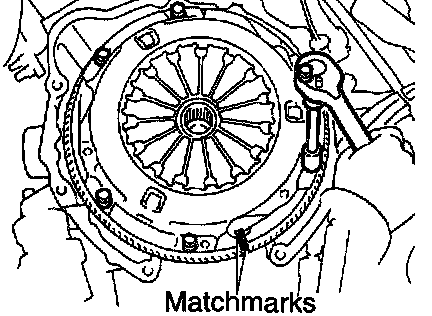

a. Align the matchmarks on the clutch cover with the one on the flywheel.
b. Loosen each set bolt one turn at a time until spring tension is released.
c. Remove the set bolts, and pull off the clutch cover with the clutch disc.
NOTICE: Do not drop the clutch disc.
3. REMOVE RELEASE BEARING AND FORK FROM TRANSAXLE
a. Remove the release bearing together with the fork and then separate them.
b. Remove the boot.
INSPECTION
1. INSPECT CLUTCH DISC FOR WEAR OR DAMAGE

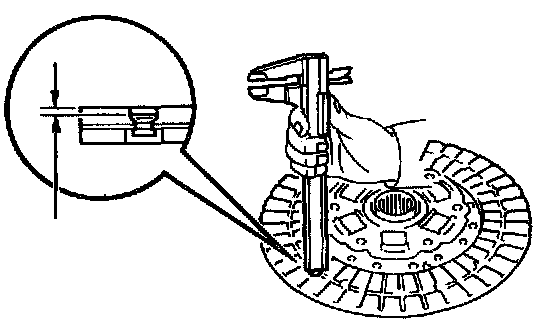

Using calipers, measure the rivet head depth.
Minimum rivet depth: 0.3 mm (0.012 inch)
If necessary, replace the clutch disc.
Inspect Clutch Disc Runout:
2. INSPECT CLUTCH DISC RUNOUT

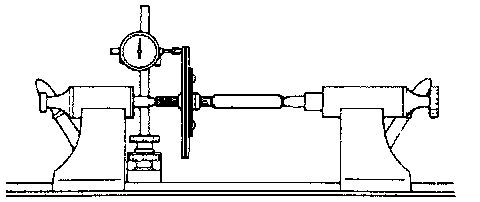

Using a dial indicator with roller, check the disc runout.
Maximum runout: 0.8 mm (0.031 inch)
If necessary, replace the clutch disc.
3. INSPECT FLYWHEEL RUNOUT
Using a dial indicator, check the flywheel runout.
Maximum runout: 0.1 mm (0.004 inch)
If necessary, replace the flywheel.

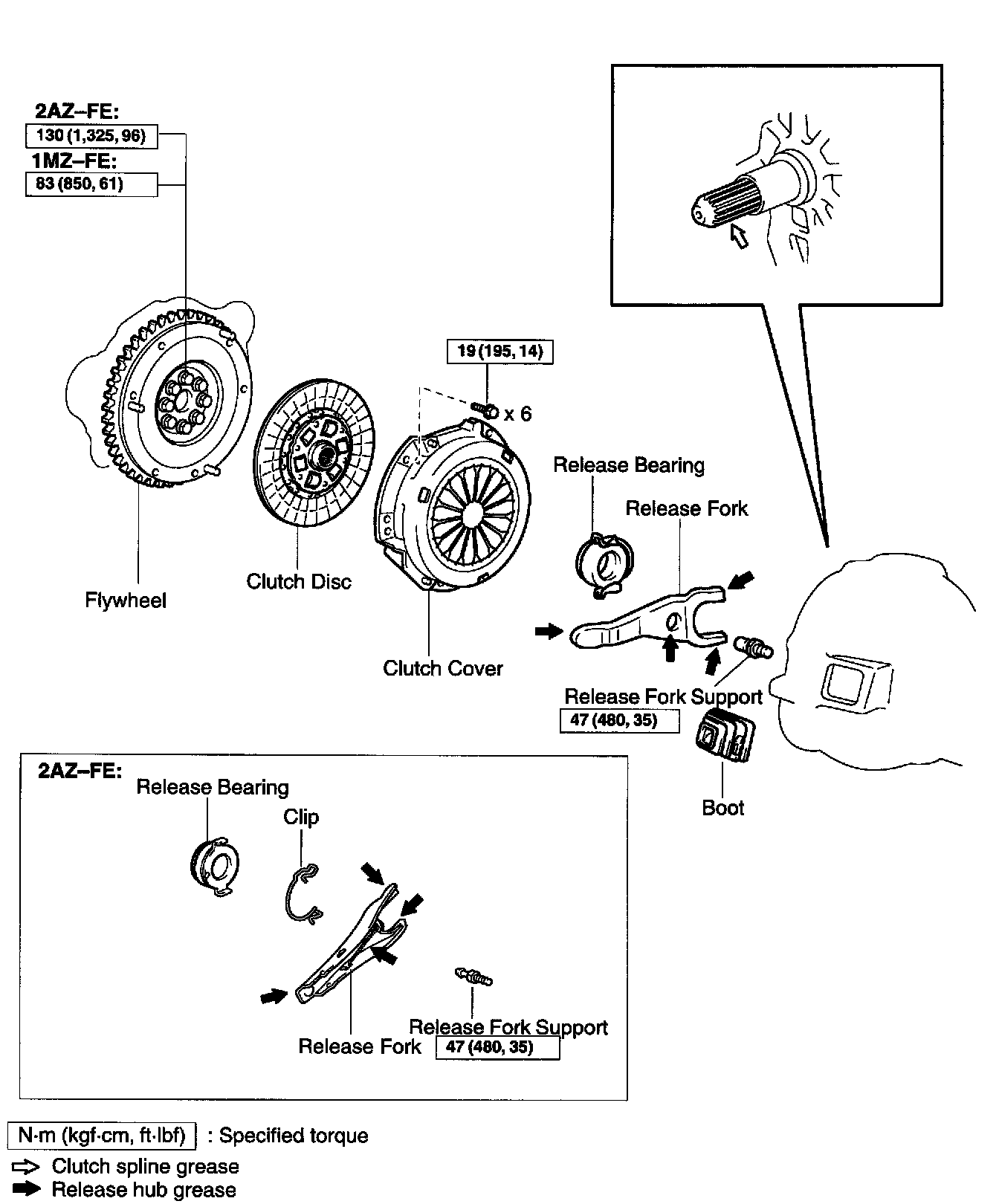

Torque:
1MZ-FE: 83 Nm (850 kgf-cm, 61 ft. lbs.)
2AZ-FE: 130 Nm (1,325 kgf-cm, 96 ft. lbs.)
4. INSPECT DIAPHRAGM SPRING FOR WEAR

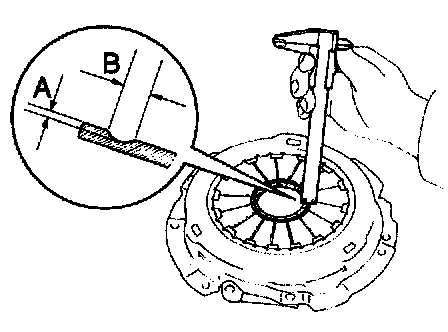

Using calipers, measure the diaphragm spring for depth and width of wear.
Maximum:
Depth A: 0.6 mm (0.024 inch)
Width B: 5.0 mm (0.197 inch)
If necessary, replace the clutch cover.
5. INSPECT RELEASE BEARING

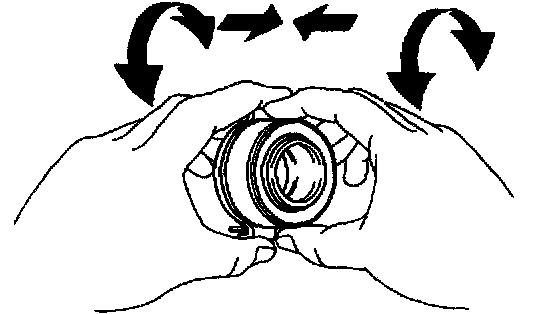

Turn the bearing by hand while applying force in the axial direction.
HINT: The bearing is permanently lubricated and requires no cleaning or lubrication.
If necessary, replace the bearing.
INSTALLATION
1. INSTALL CLUTCH DISC AND CLUTCH COVER ON FLYWHEEL
a. Insert SST in the clutch disc, then insert them in the flywheel.
SST 09301-00220
HINT: Take care not to insert the clutch disc in the wrong direction.

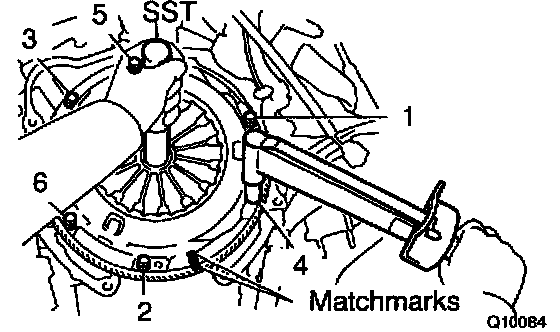

b. Align the matchmarks on the clutch cover and flywheel.
c. Following the procedures shown in the illustration, tighten the 6 bolts in the order starting the bolt locating near the knock pin on the top.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
HINT:
^ Following the order in the illustration, tighten one bolt at a time evenly.
^ Move SST up and down, right and left lightly, after checking that the disc is in the center, and tighten the bolts.

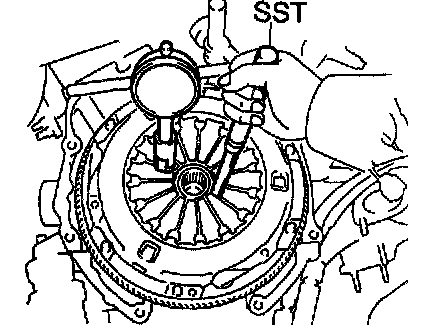

2. CHECK DIAPHRAGM SPRING TIP ALIGNMENT
Using a dial indicator with roller instrument, check the diaphragm spring tip alignment.
Maximum non-alignment: 0.5 mm (0.020 inch)
If alignment is not as specified, using SST, adjust the diaphragm spring tip alignment.
SST 09330-00013
3. INSTALL BOOT AND RELEASE FORK SUPPORT TO TRANSAXLE
Torque: 47 Nm (479 kgf-cm, 35 ft. lbs.)
4. APPLY RELEASE HUB GREASE

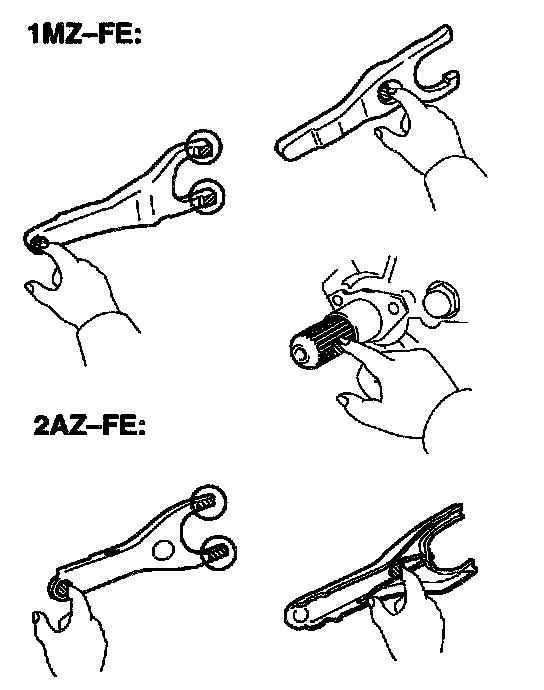

Apply release hub grease to the release fork and hub contact, release fork and push rod contact and release fork pivot points.
Sealant: Part No. 08887-01806, RELEASE HUB GREASE or equivalent
5. APPLY CLUTCH SPRING GREASE
Apply clutch spline grease to the input shaft spline.
Sealant: Part No. 08887-01706, CLUTCH SPLINE GREASE or equivalent
6. INSTALL RELEASE BEARING AND FORK TO TRANS" AXLE

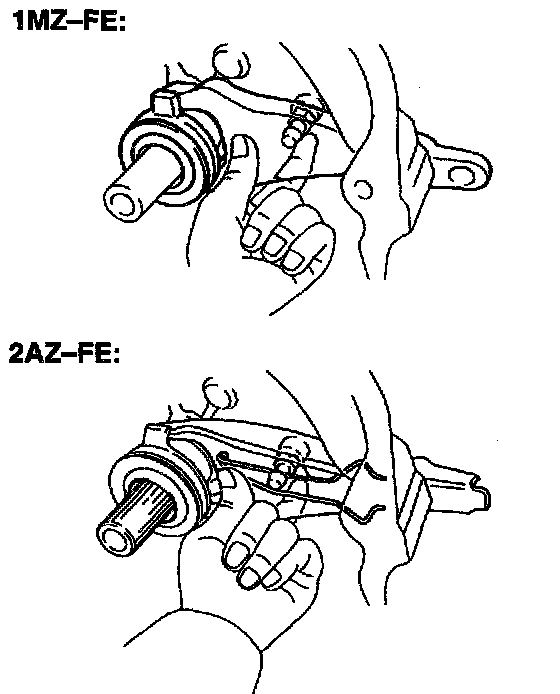

Install the bearing to the release fork, and then install them to the transaxle.
7. INSTALL TRANSAXLE TO ENGINE
