Manual Transmission/Transaxle: Tools and Equipment

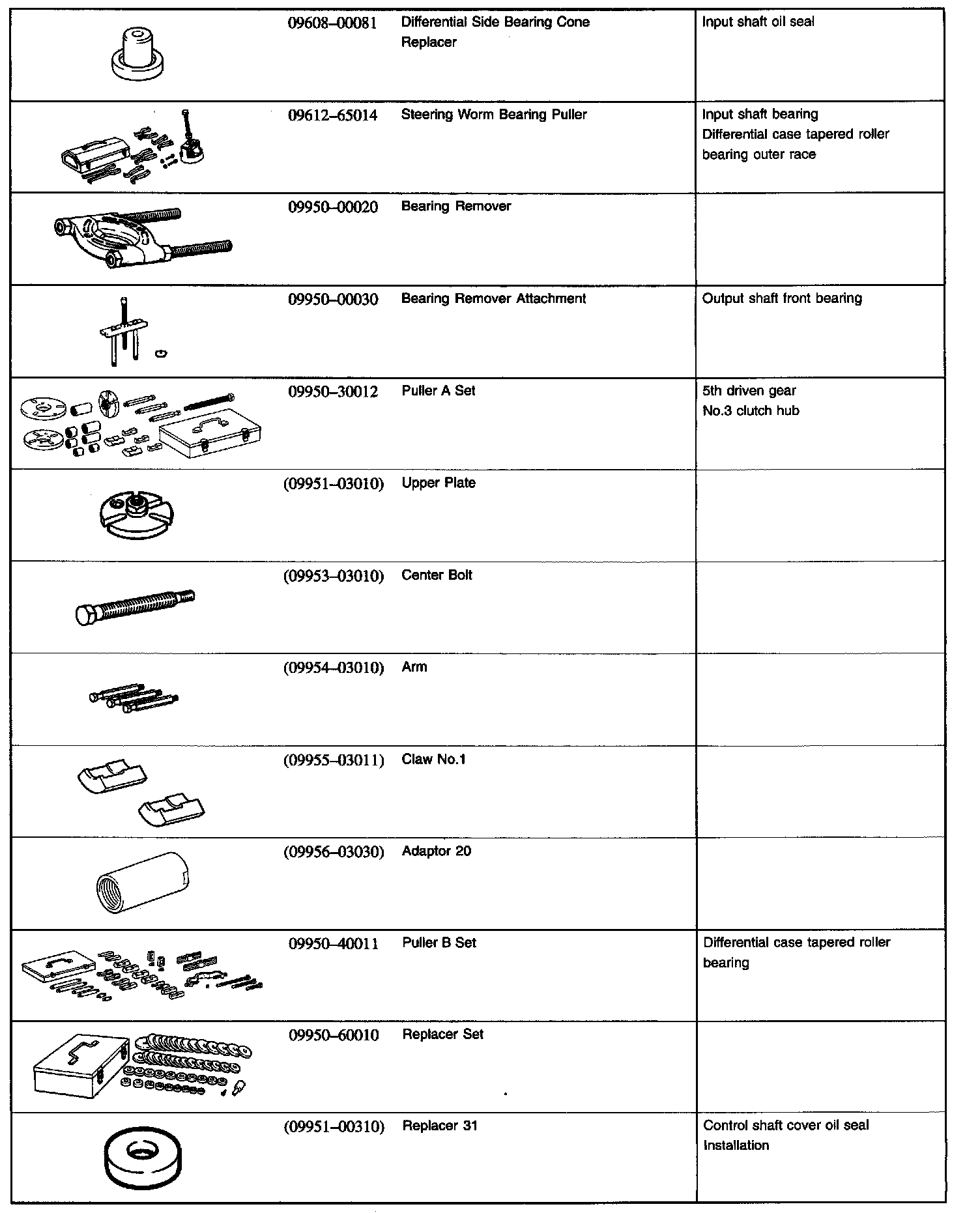

Manual Transaxle (E153) - SST (Special Service Tools) Part 1:

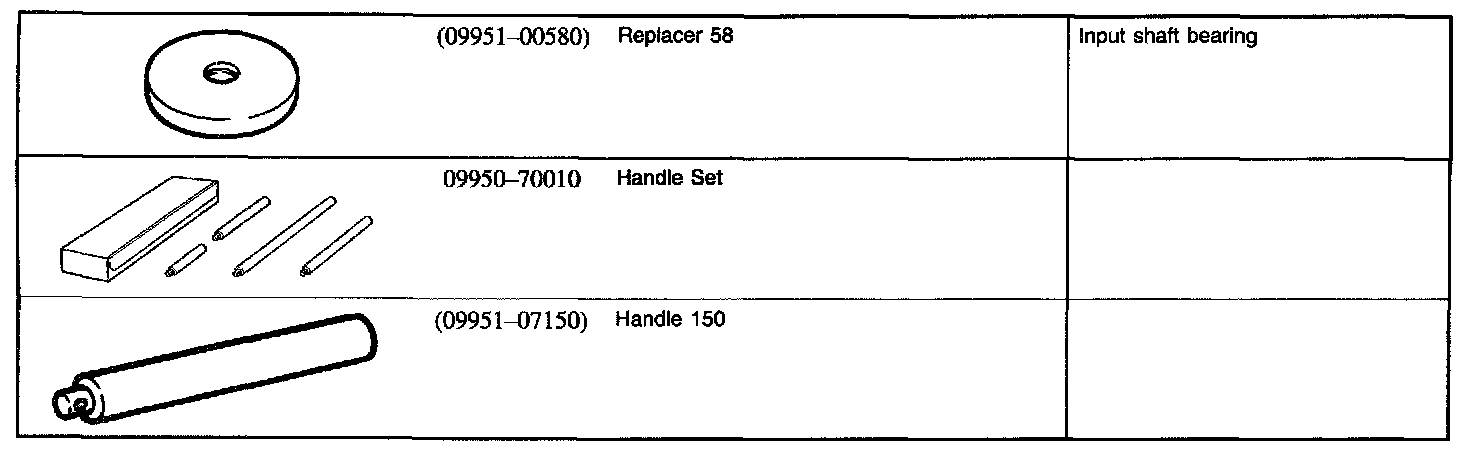

Manual Transaxle (E153) - SST (Special Service Tools) Part 2:

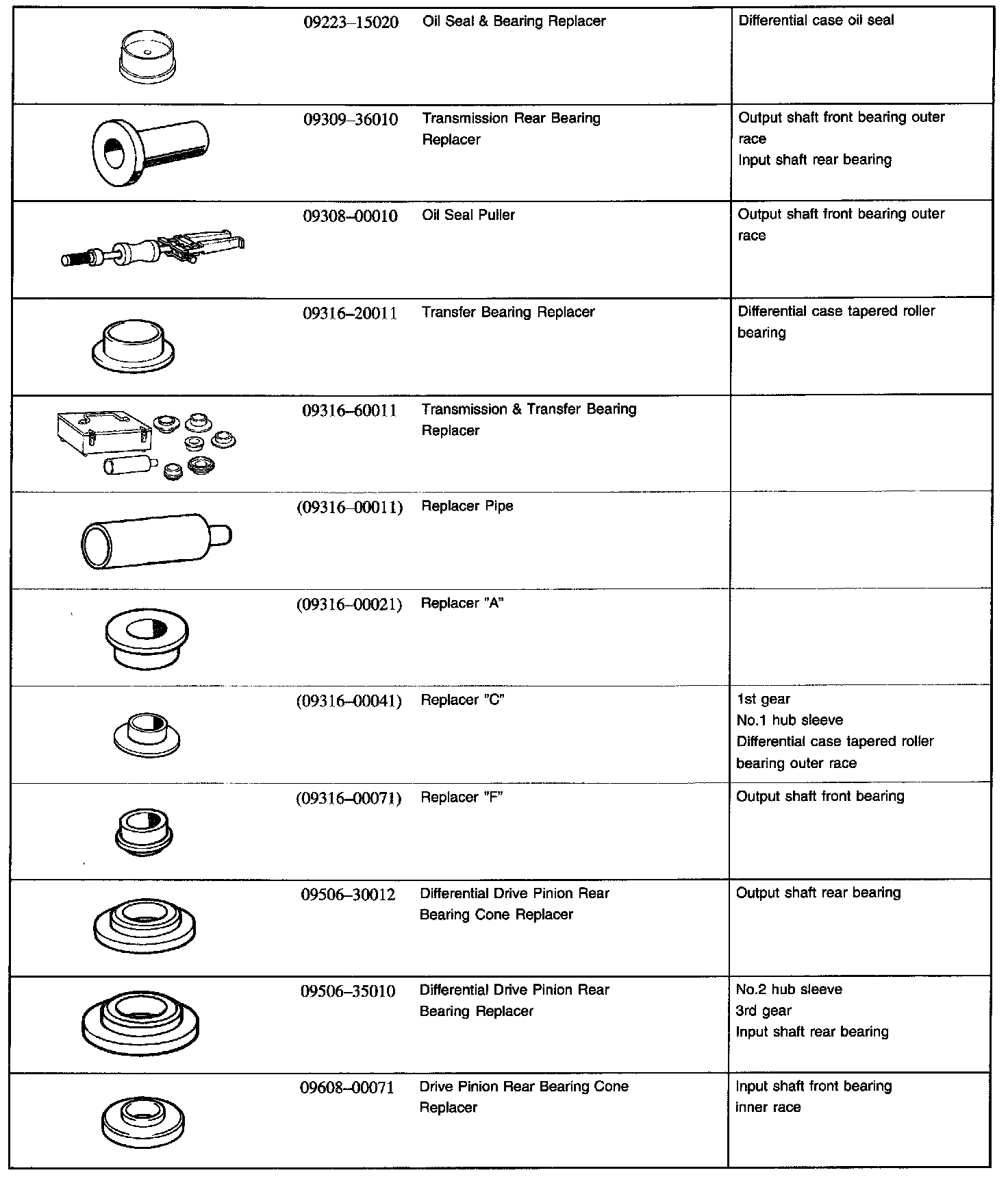

Manual Transaxle (E153) - SST (Special Service Tools) Part 3:

Manual Transaxle (E153) - Recommended Tools:

Equipment
Dial indicator with magnetic base
Feeler gauge
Magnetic finger
Micrometer
Precision straight edge
Torque wrench

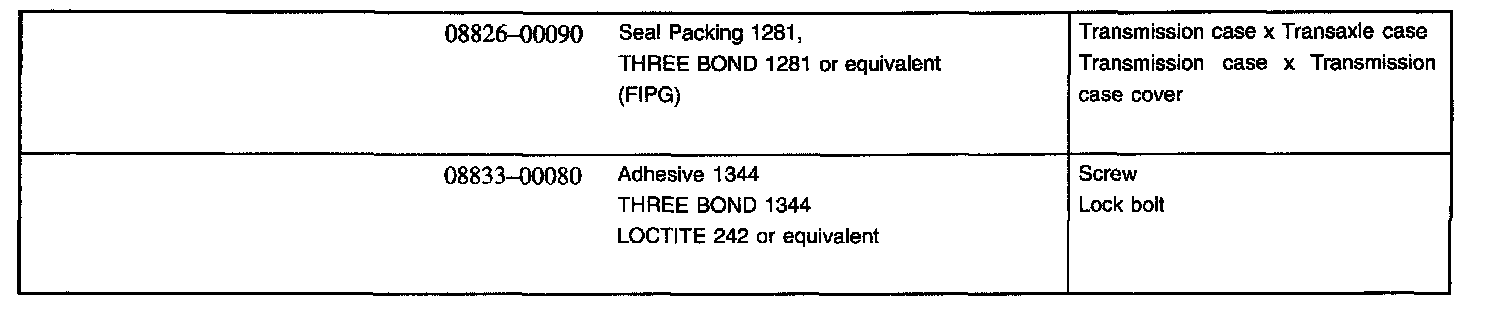

Manual Transaxle (E153) - SSM (Special Service Materials):
