B0136

DTC B0136 Open in P/T Squib (LH) Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P/T squib circuit (LH) consists of the airbag sensor assembly and seat belt pretensioner (LH).

It causes the seat belt pretensioner (LH) to activate when the seat belt pretensioner (LH) activation conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0136/74 is recorded when an open is detected in the P/T squib (LH) circuit.

Wiring Diagram:

Step 1 - 2:

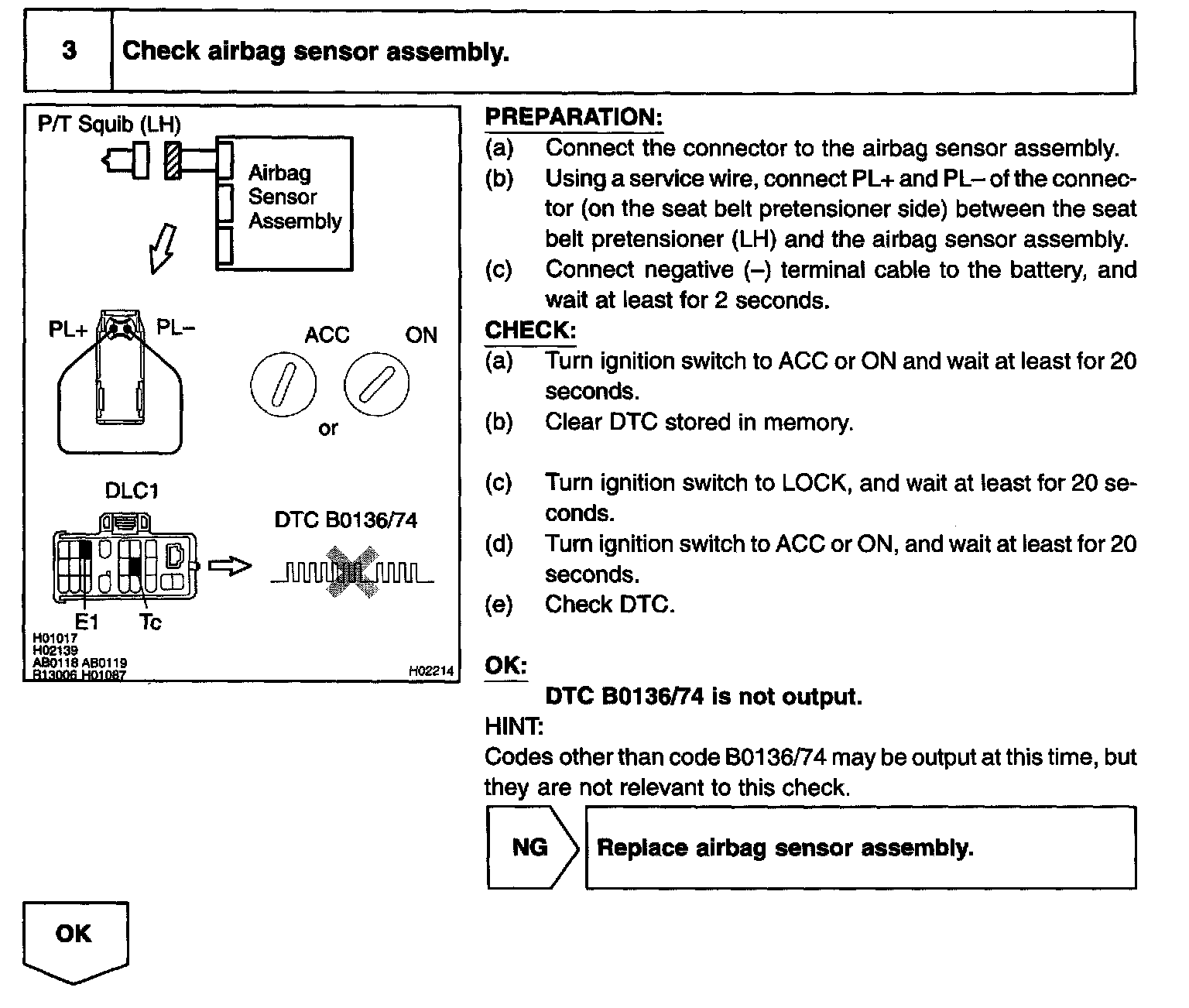

Step 3:

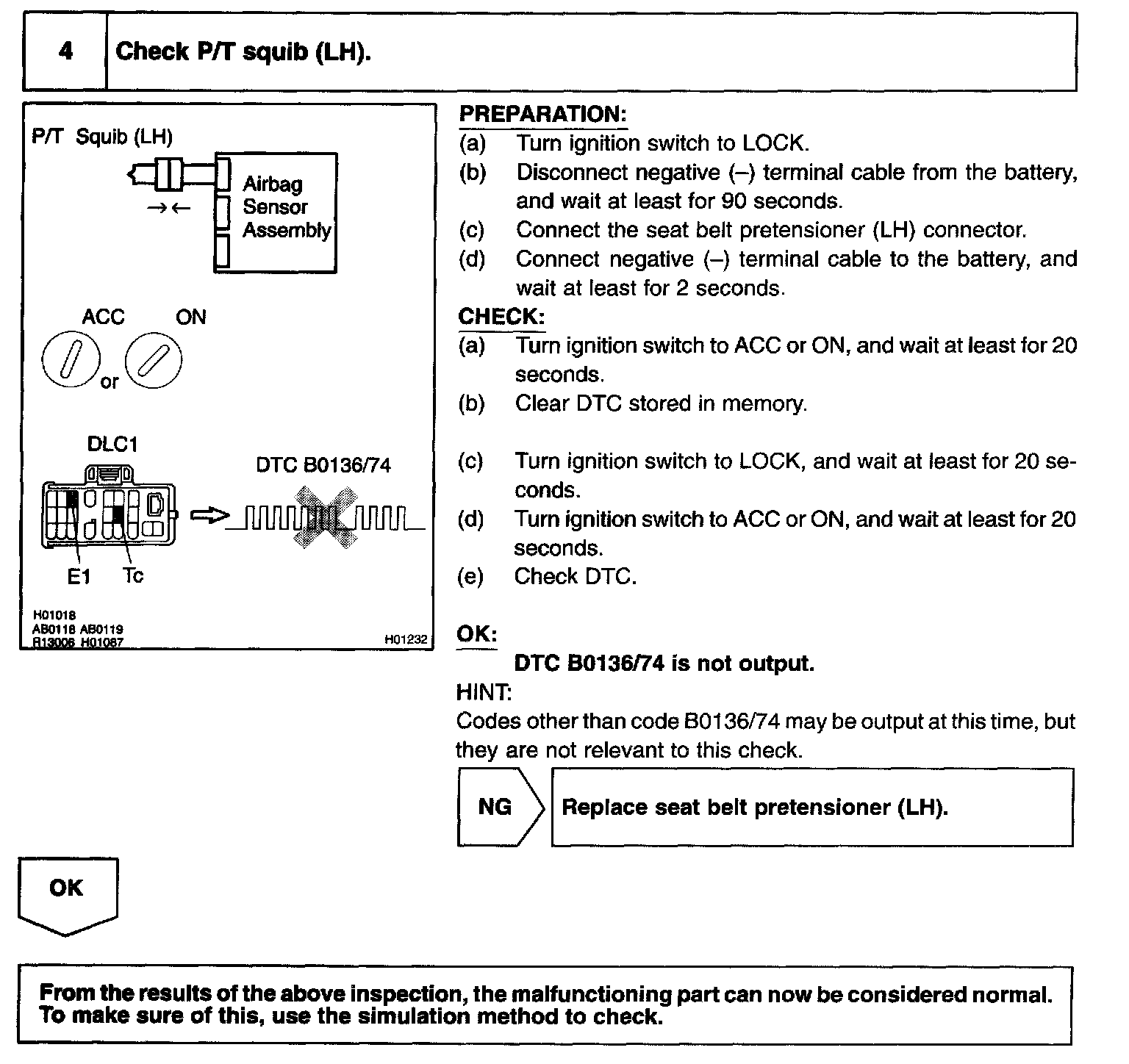

Step 4:

INSPECTION PROCEDURE
