B0137

DTC B0137 Short in P/T Squib (LH) Circuit (to Ground)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P/T squib (LH) circuit consists of the airbag sensor assembly and seat belt pretensioner (LH).

It causes the seat belt pretensioner (LH) to activate when the seat belt pretensioner (LH) activation conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0137/71 is recorded when ground short is detected in the P/T squib (LH) circuit.

Wiring Diagram:

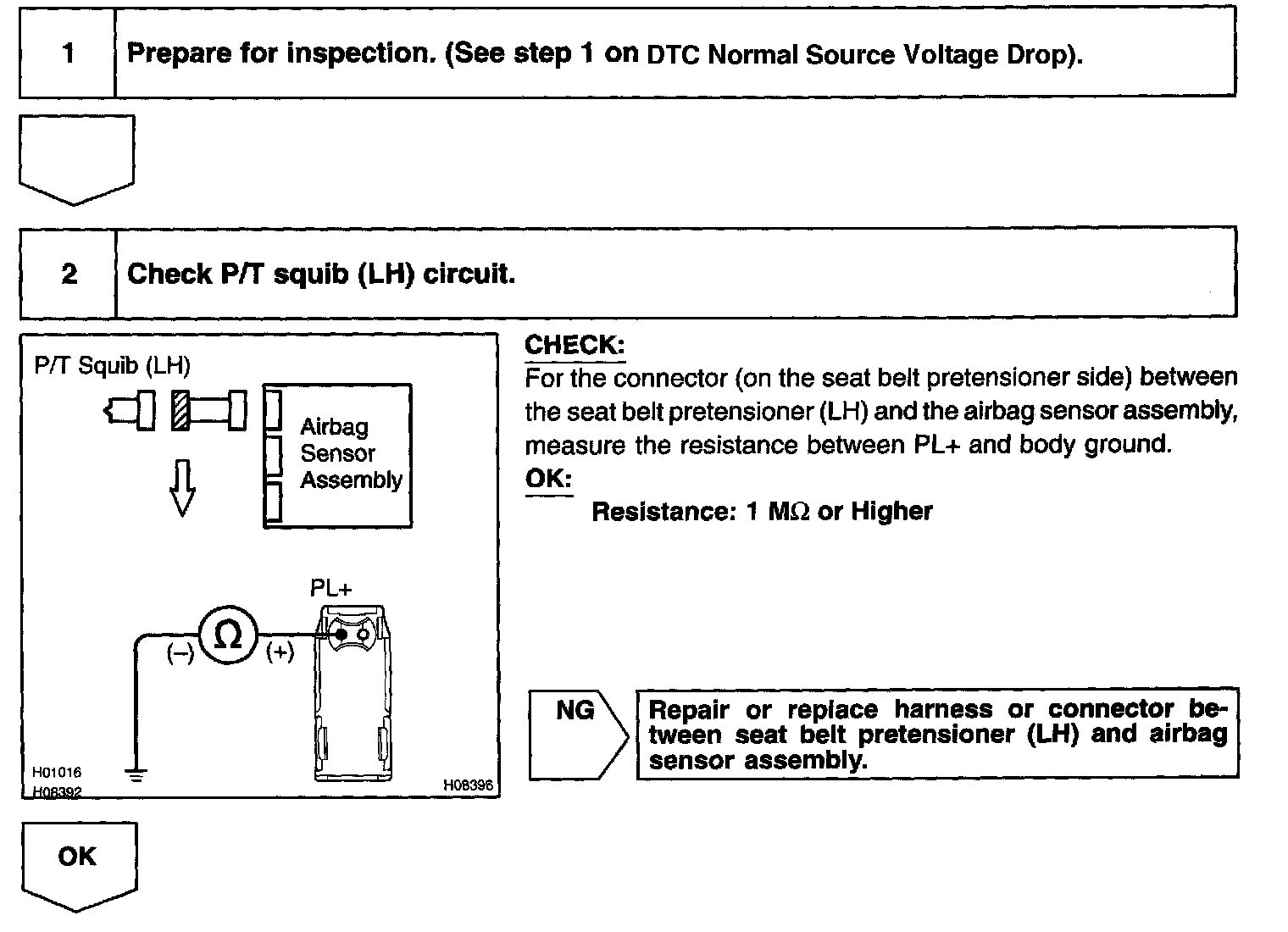

Step 1 - 2:

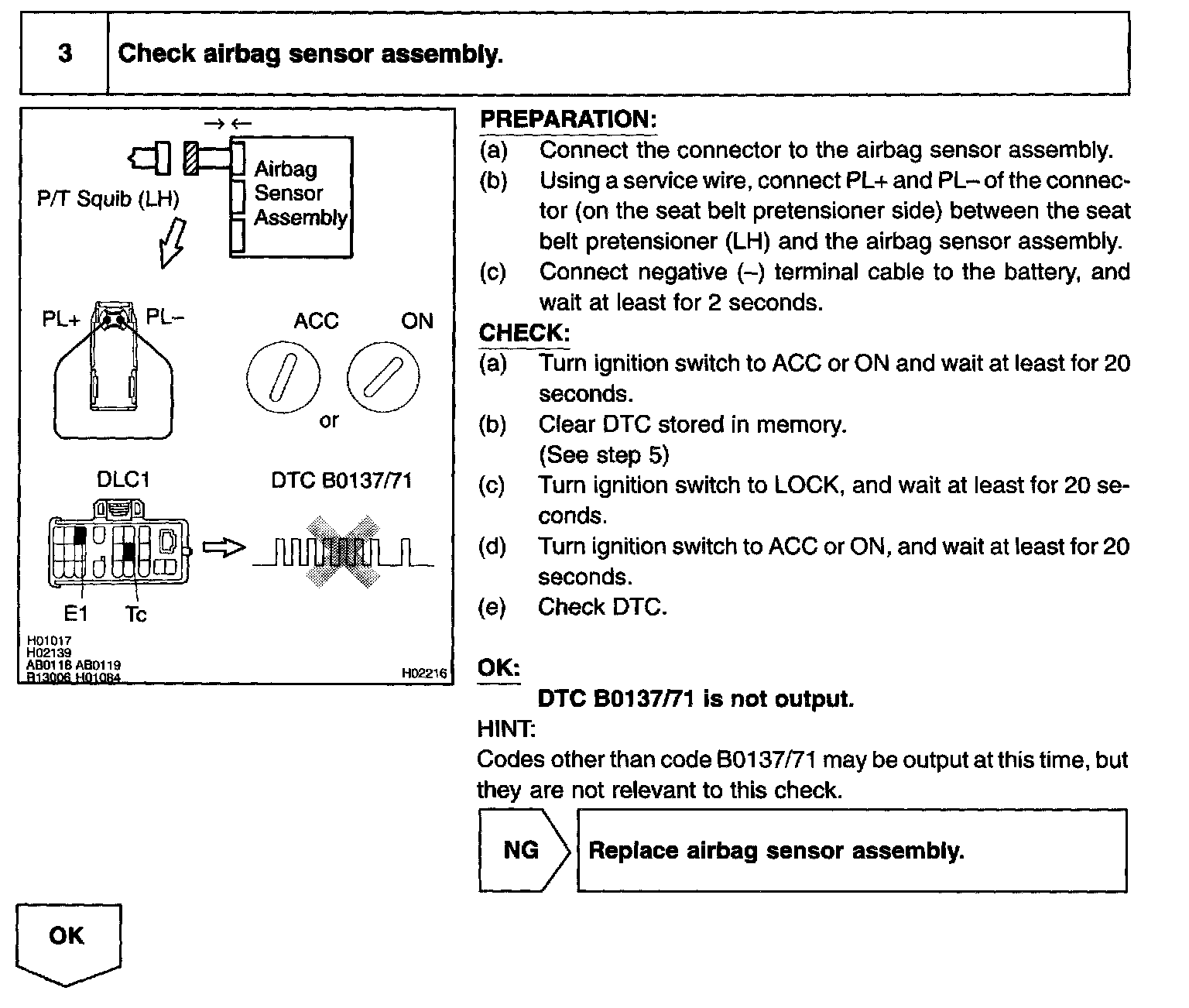

Step 3:

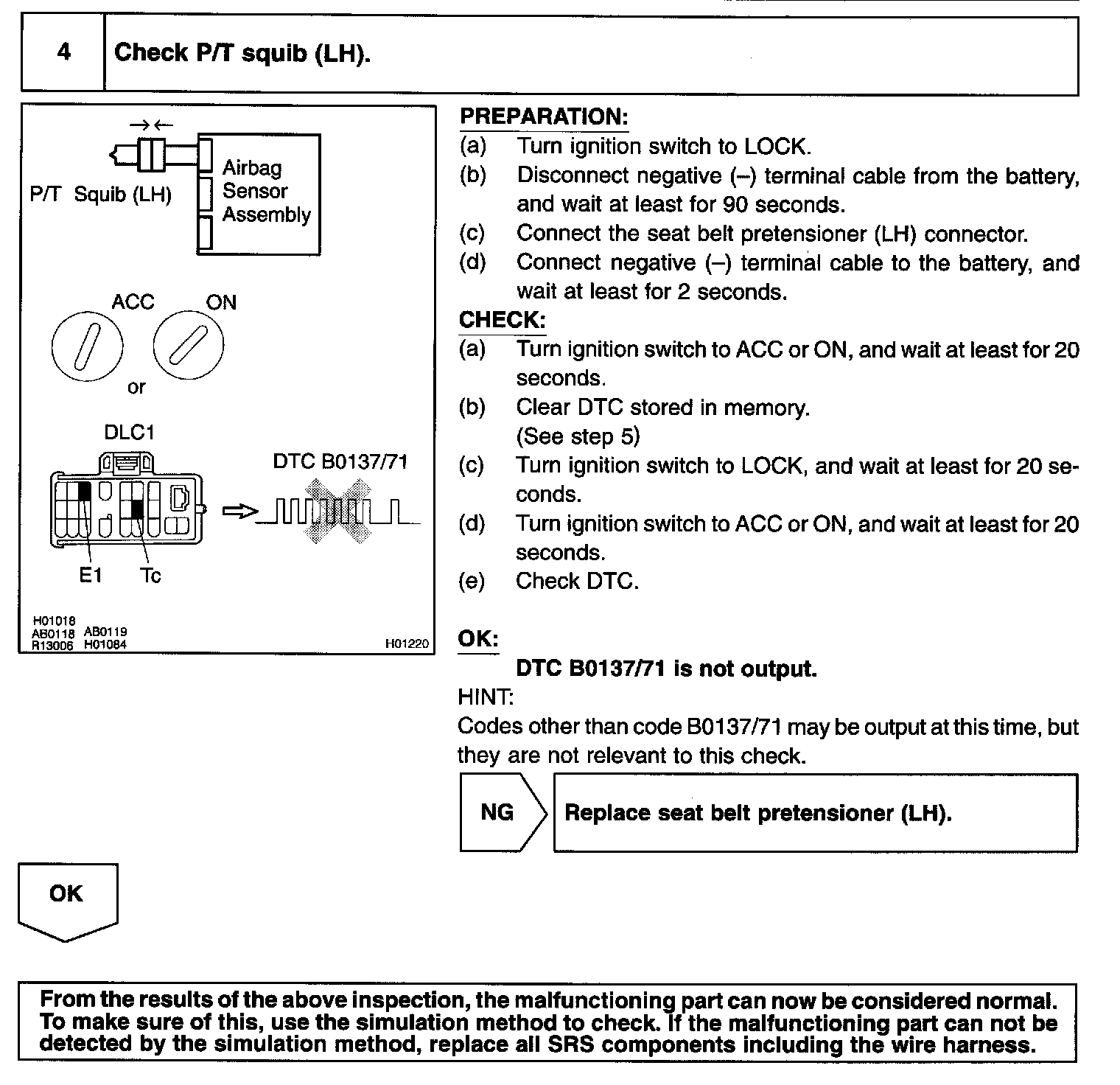

Step 4:

INSPECTION PROCEDURE
