B1159

DTC B1159 Front Airbag Sensor (LH) Malfunction

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The front airbag sensor (LH) circuit consists of the airbag sensor assembly and front airbag sensor (LH).

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1158/B1159/16 is recorded when malfunction is detected in the front airbag sensor (LH) circuit.

Wiring Diagram:

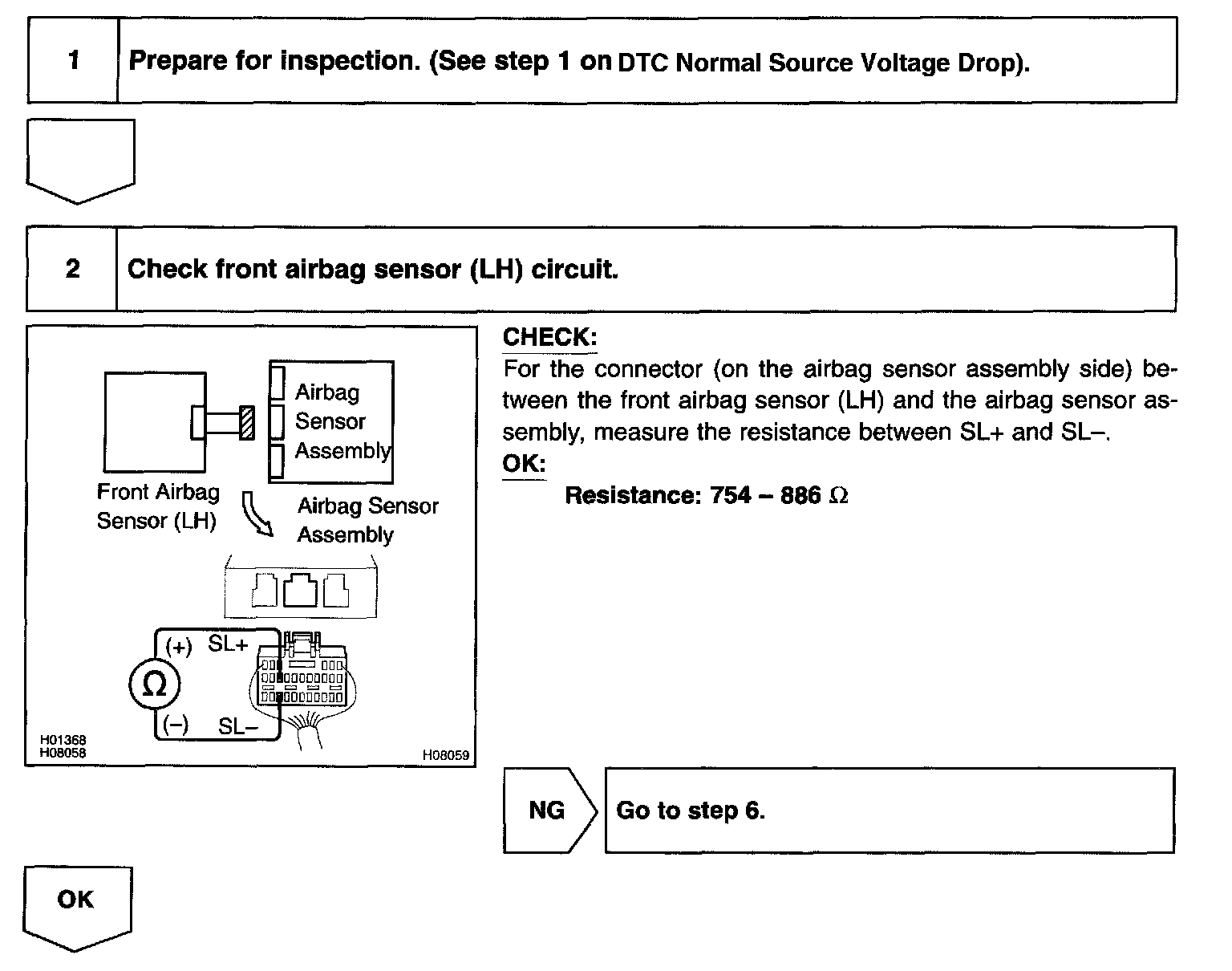

Step 1 - 2:

Step 3 - 4:

Step 5:

Step 6:

Step 7:

Step 8:

INSPECTION PROCEDURE
